Cable coaxial DeLOCK 89649 0,3 m MHF I-PEX MHF IV HSC MXHP32

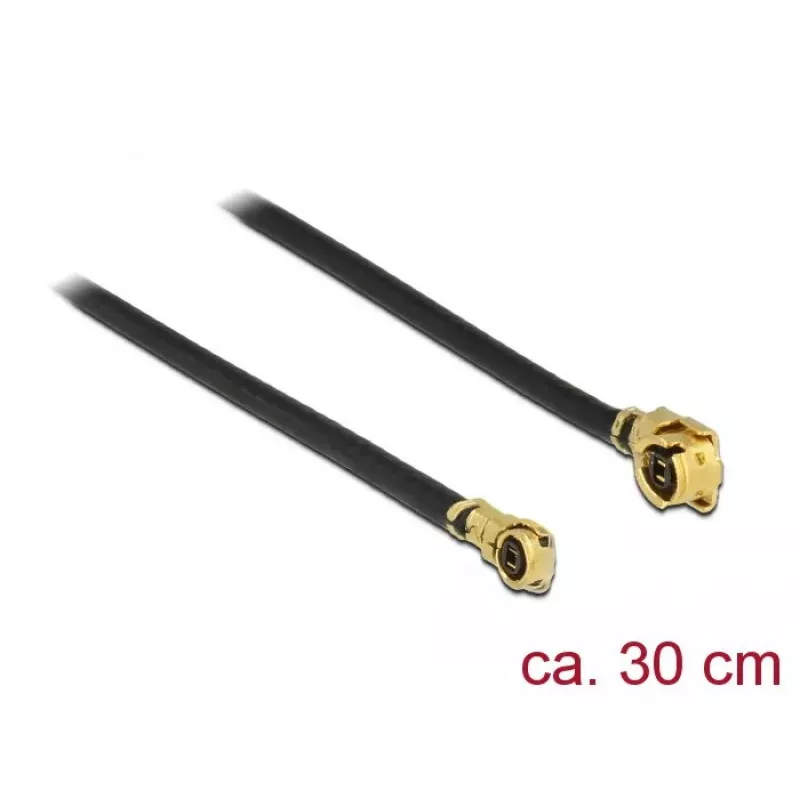

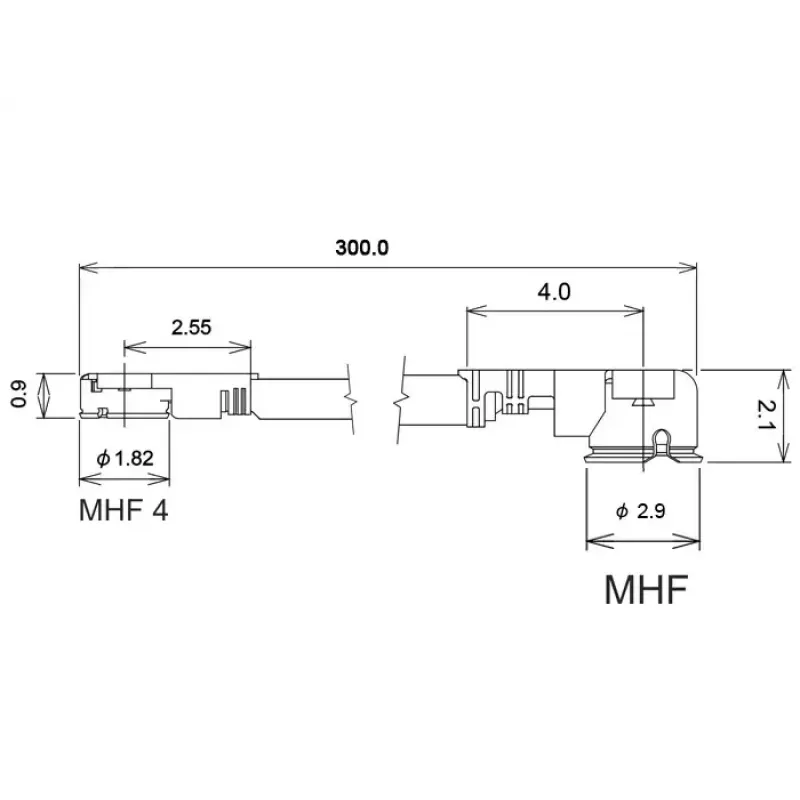

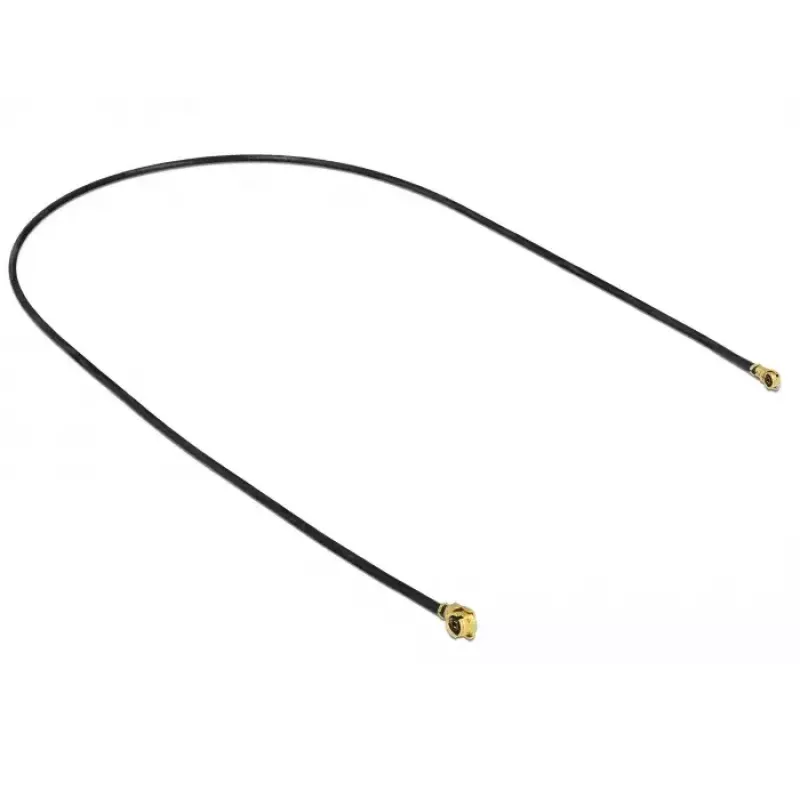

The DeLOCK 89649 coaxial cable is a 0.3 m antenna cable with an I-PEX MHF (MHF I) connector on one end and an MHF IV / HSC MXHP32 connector on the other. It is intended for radio frequency signal connections in compact devices and assemblies where space is limited. The cable is supplied individually in a polybag and supports reliable transmission between compatible RF modules and antennas.

Advantages

The cable provides a compact, flexible connection between devices with MHF I (I-PEX) and MHF IV / HSC MXHP32 jacks, ensuring low-loss RF signal transfer over a short distance. Its 0.3 m length is suitable for routing inside small enclosures and for connecting internal wireless modules to antennas. Packaged as a single unit, it is ready for direct installation.

Suitable for

Key specifications

How to use

Identify the MHF I (I-PEX) and MHF IV / HSC MXHP32 jacks on the devices to be connected. Align each connector carefully and press until the connector seats securely; do not force or bend the cable sharply. Route the 0.3 m cable inside the device so it avoids sharp edges and moving parts. Verify the connection by powering the device and checking RF signal functionality according to the host device’s procedures.

Recommendations

Use the cable only with compatible MHF I (I-PEX) and MHF IV / HSC MXHP32 jacks. Avoid excessive bending, pulling, or exposure to moisture. For best RF performance, keep cable runs short and ensure connectors are fully seated. If unsure about compatibility, compare connector types or consult device documentation.
