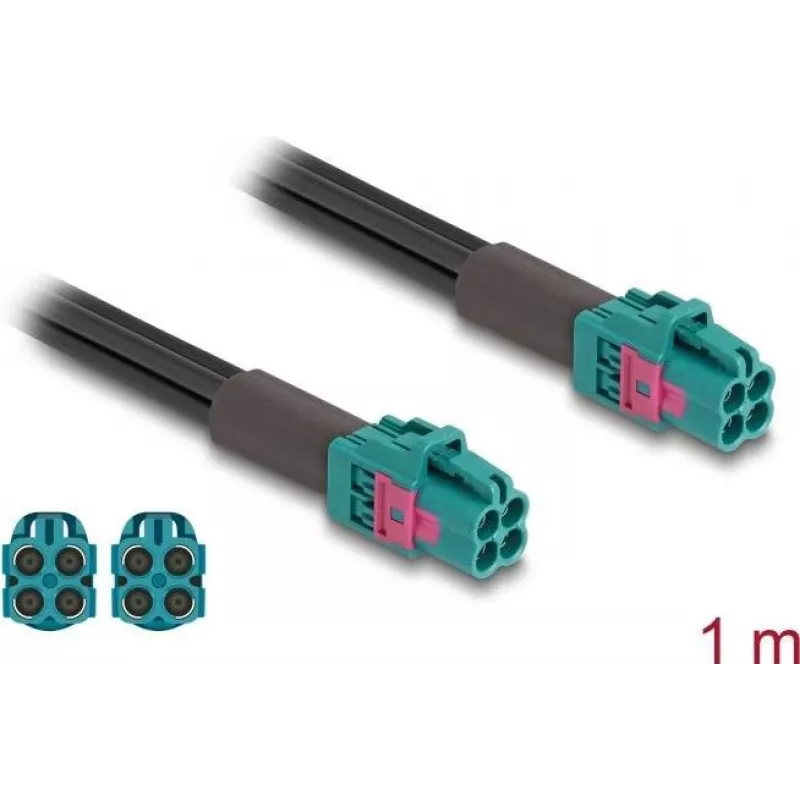

Cable coaxial DeLOCK 90117 1 m Mini FAKRA Z aqua

The DeLOCK 90117 is a 1 m coaxial cable with Mini FAKRA Z connectors on both ends, intended for reliable signal transmission in automotive and electronic applications. The Aqua-coloured housings help with visual identification and the compact Mini FAKRA design reduces required installation space compared to standard FAKRA connectors.

Advantages

Mini FAKRA Z housings enable higher data rates while saving up to 80% of connector space compared to standard FAKRA connectors, allowing multiple modules to be arranged in confined areas. The cable provides stable coaxial transmission suitable for vehicle and electronic component connections, and the 1 m length covers common routing needs in installations.

Suitable for

Key specifications

How to use

Connect each Mini FAKRA Z connector to the corresponding Mini FAKRA Z port on the device or module until a secure fit is achieved. Route the 1 m coaxial cable along the installation path avoiding sharp bends and sources of interference. Ensure connector alignment before seating to prevent damage to the housings.

Recommendations

For best results, use the cable within the specified operating conditions of the connected devices and secure it to prevent strain on the connectors; select the Aqua-coded connector when matching colour-coded ports in vehicle installations.
