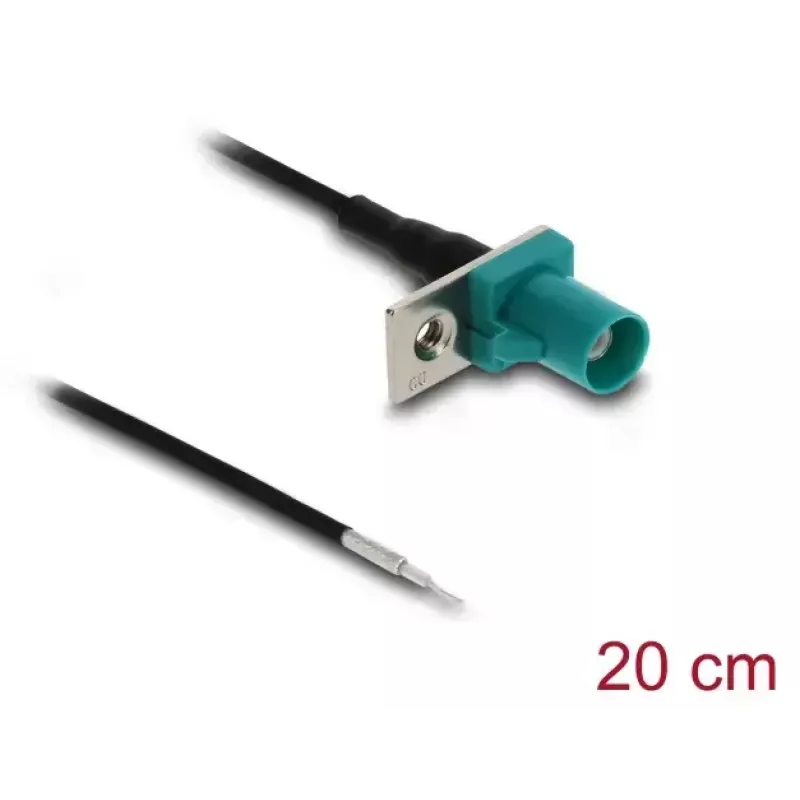

Cable coaxial DELOCK 90725, conector FAKRA Z – 0,2 m, 1,13/0,2

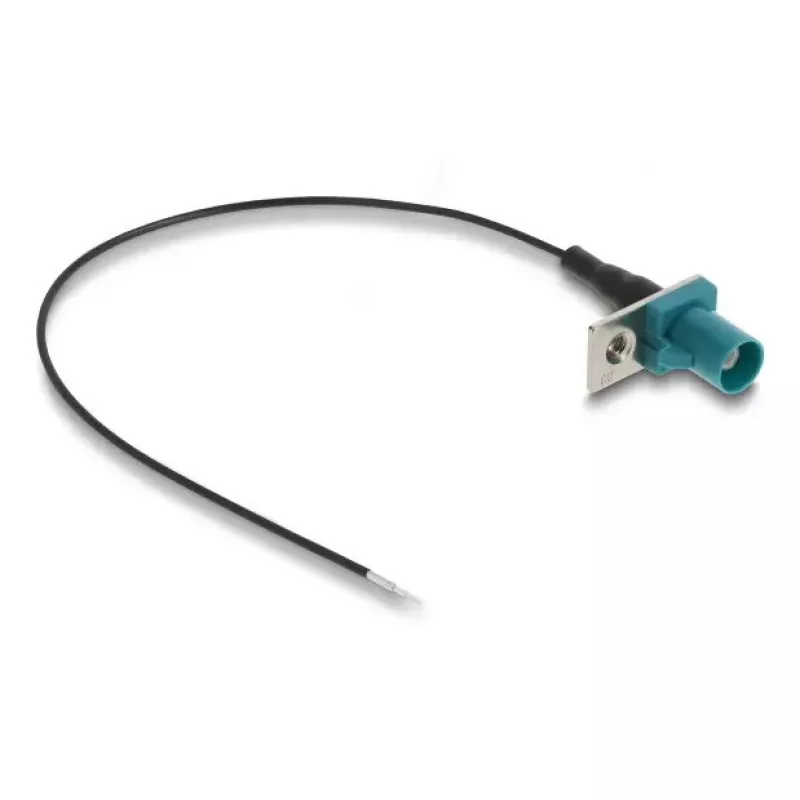

DELOCK 90725 is a short coaxial cable with a FAKRA Z male straight connector and a length of 0.2 m, intended for RF signal connections in automotive and telematics environments as well as compact electronic setups. The cable uses a 1.13/0.2 construction and is designed to provide a reliable 50 Ω transmission path for antennas and radio-frequency modules where a compact, factory-style FAKRA lead is required.

Advantages

The cable offers a compact form factor that simplifies routing in confined spaces and provides the standardized FAKRA Z interface for secure mating with compatible automotive components. Its 50 Ω impedance supports typical RF equipment and antenna systems, while the short 0.2 m length reduces signal loss and keeps installations tidy. The product is supplied as a single-piece polybag pack and has small packaging dimensions suitable for spare part storage and quick replacement.

Suitable for

Key specifications

How to use

Select the DELOCK coaxial cable when a short, standardized FAKRA Z male connection is required. Align the FAKRA housing with the mating connector on the device or antenna and push until the retention engages; ensure the connector is seated straight to avoid mechanical stress. Route the cable to avoid sharp bends and proximity to moving parts or high-temperature sources. Verify signal continuity and correct impedance matching in the system after installation.

Recommendations

For best results use the cable for short-distance RF connections inside vehicles or compact enclosures. Avoid excessive bending radii and high mechanical strain at the connector. When integrating with aftermarket equipment, confirm compatibility with the mating FAKRA Z interface and the 50 Ω system to ensure reliable signal transmission.
