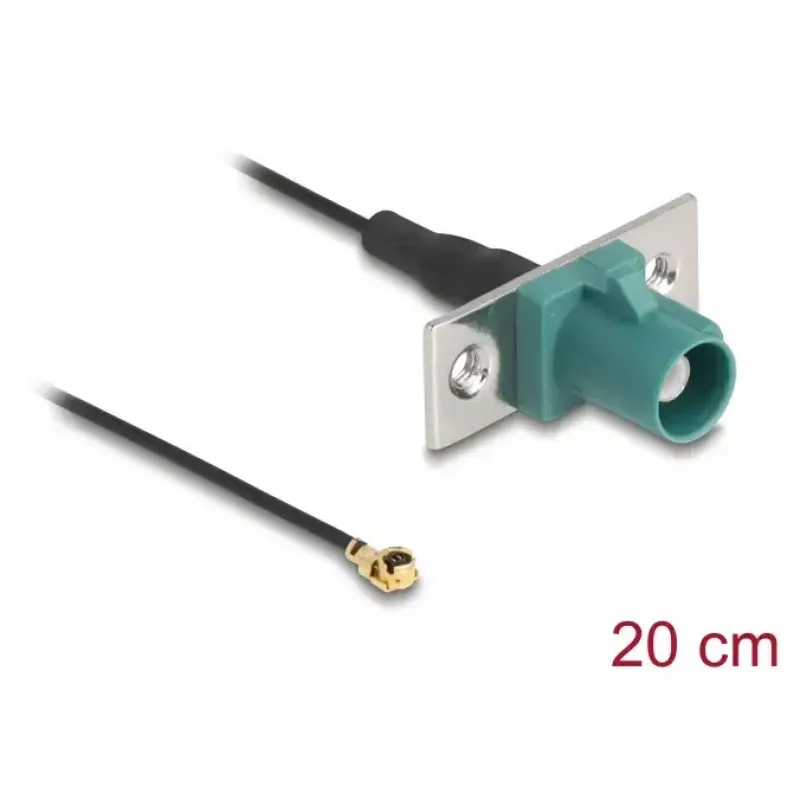

Cable coaxial DELOCK 90732 — FAKRA E a I-PEX MHF1, 0,2 m, 1,13 mm, negro/turquesa

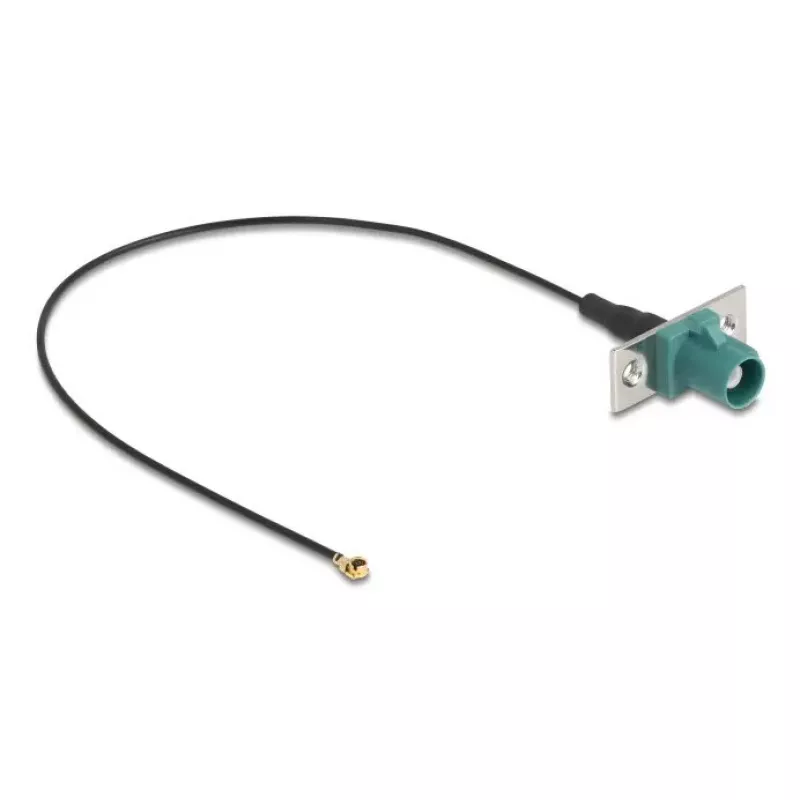

DELOCK 90732 is a short coaxial interconnect cable designed for RF signal routing in automotive systems and embedded radio frequency modules. The cable measures 0.2 m and uses a 1.13 mm conductor diameter, combining a FAKRA E male straight plug on one end with an I-PEX MHF1 male angled connector on the other. The compact connector footprint (approximately 12 x 24 x 9 mm) and 50 Ω characteristic impedance make this cable suitable for short-distance RF connections where space is limited.

Advantages

The cable provides a reliable 50 Ω transmission path optimized for RF applications, with a combination of automotive-grade FAKRA and miniature I-PEX MHF1 interfaces to connect different types of RF equipment. Its short length and small conductor diameter reduce signal path length and minimize space usage inside devices or vehicle installations. The product is supplied as a single piece in a protective polybag for simple storage and handling.

Suitable for

Key specifications

How to use

Connect the FAKRA E male straight plug to the corresponding FAKRA E female socket in the vehicle or RF device, and insert the I-PEX MHF1 male angled connector into the matching MHF1 female receptacle on the module or board. Ensure both connectors are aligned correctly before seating to avoid damaging the mating interfaces. Route the cable without sharp bends and secure it to prevent strain on the connectors during installation and operation.

Recommendations

For reliable RF performance, keep the cable length as short as required and avoid tight bending radii near the connectors. Use the cable in environments and applications that conform to automotive or equipment manufacturer guidelines for RF cabling and connector handling.
