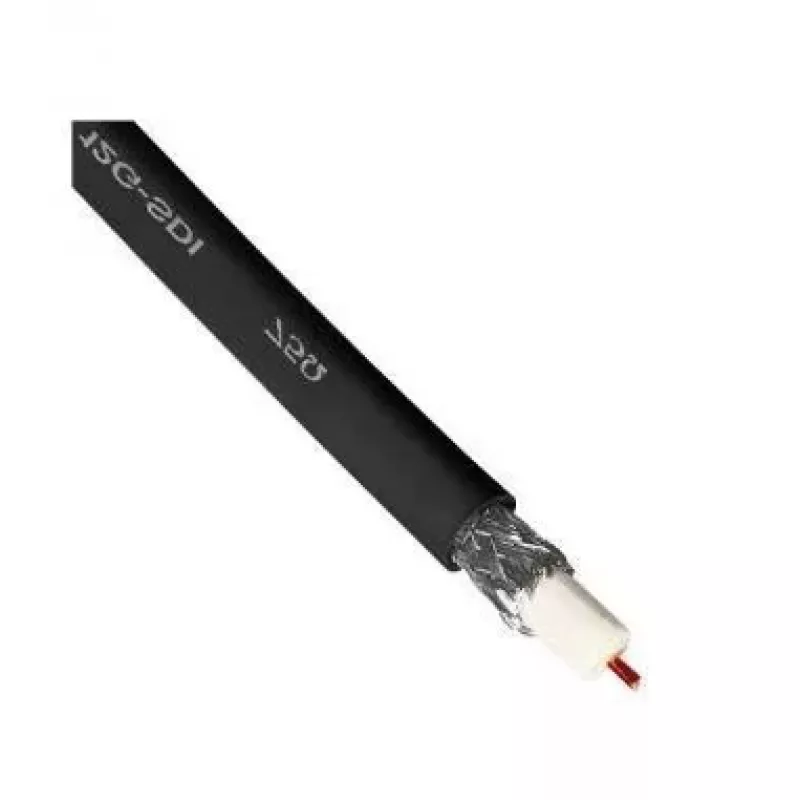

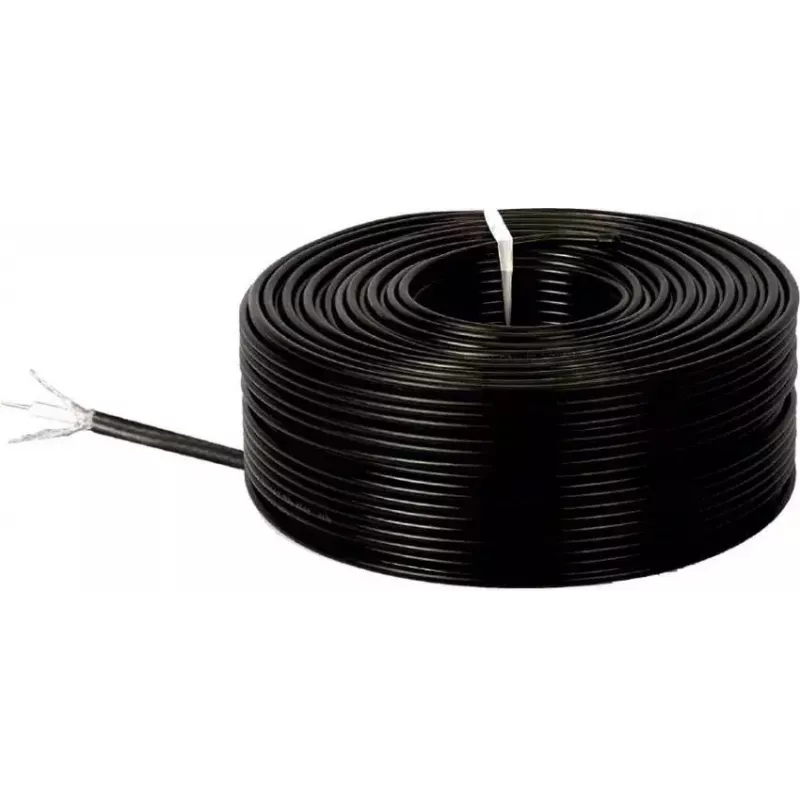

Cable coaxial Microconnect BNC-HDSDI-100R 100m HD-SDI

MicroConnect 12G SDI coaxial cable BNC-HDSDI-100R is a 100 m, 75 Ω cable engineered for professional SDI signal transmission. It supports 12G-SDI, 6G-SDI, 3G-SDI and HD-SDI standards and is suitable for resolutions up to 4096×2160 @ 60 Hz and Full HD 1080p, providing consistent video connectivity between cameras, monitors and broadcast equipment.

Advantages

The cable delivers low signal loss and impedance-matched 75 Ω construction to maintain signal integrity across long runs. Its compatibility with multiple SDI standards (12G, 6G, 3G and HD) makes it versatile for current and legacy professional video systems. The 100 m reel length reduces the need for multiple joints and simplifies installation on location or in studio environments.

Suitable for

• Connecting professional HD/4K cameras to recorders or switchers
• Signal routing between monitors, routers and broadcast infrastructure
• Temporary or permanent installations in studios, OB-vans or event venues

Key specifications

• Length: 100 m
• Impedance: 75 Ω
• Supported standards: 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI
• Maximum resolution: up to 4096×2160 @ 60 Hz and Full HD 1080p
• Connectors: BNC (as per product name)
• Brand: MicroConnect, MPN: BNC-HDSDI-100R, EAN: 5715063475362

How to use

Unroll the 100 m cable from the reel and route it between devices ensuring minimal bending and no sharp kinks. Terminate or connect the BNC connectors to the SDI BNC ports on cameras, monitors, switchers or recorders. For long runs, avoid coiling tightly and keep the cable away from strong electrical interference sources. Test the video feed at the intended resolution (e.g., 4K@60Hz) to confirm signal integrity before finalizing installation.

Recommendations

For best performance, use proper BNC crimping or pre-terminated connectors and avoid excessive reuse of connectors at the same points. When running 12G-SDI signals at high resolutions/long distances, verify signal quality with appropriate monitoring equipment and add active equalizers or repeater/amp devices if needed.
