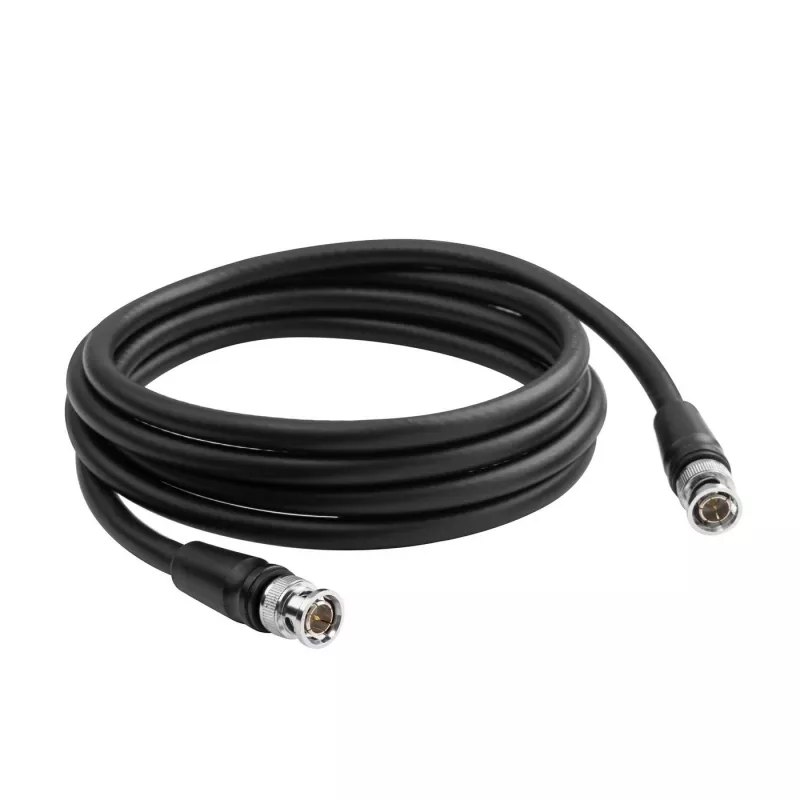

Cable coaxial Microconnect BNC-HDSDI-3M BNC RG-6 3m negro

The MicroConnect 12G SDI coaxial cable (BNC-HDSDI-3M) is an RG-6 BNC-to-BNC cable with a length of 3 m and 75 ohm impedance, designed for professional SDI video connections. It supports 12G-SDI, 6G-SDI, 3G-SDI and HD-SDI signals and is suitable for 4K at 60 Hz (up to 4096×2160) as well as Full HD 1080p. The cable is black, lightweight (0.1 kg) and manufactured in Denmark, meeting CE, REACH and RoHS requirements with a 25-year warranty.

Advantages

The cable provides backward-compatible support for multiple SDI standards (12G/6G/3G/HD-SDI) and reliably transmits high-resolution video signals including 4K60 and 1080p. BNC connectors on both ends ensure secure, industry-standard connections for professional AV and broadcast equipment. The RG-6 construction and 75 ohm impedance are suitable for stable signal integrity over the 3 m length. Compliance with CE, REACH and RoHS and the long warranty indicate material and manufacturing quality.

Suitable for

• Professional video and broadcast equipment requiring BNC SDI connections
• 4K60 video transmission up to 4096×2160
• Full HD 1080p monitoring and recording
• Studio patching, OB vans and AV installations with short cable runs

Key specifications

• Cable type: RG-6
• Length: 3 m

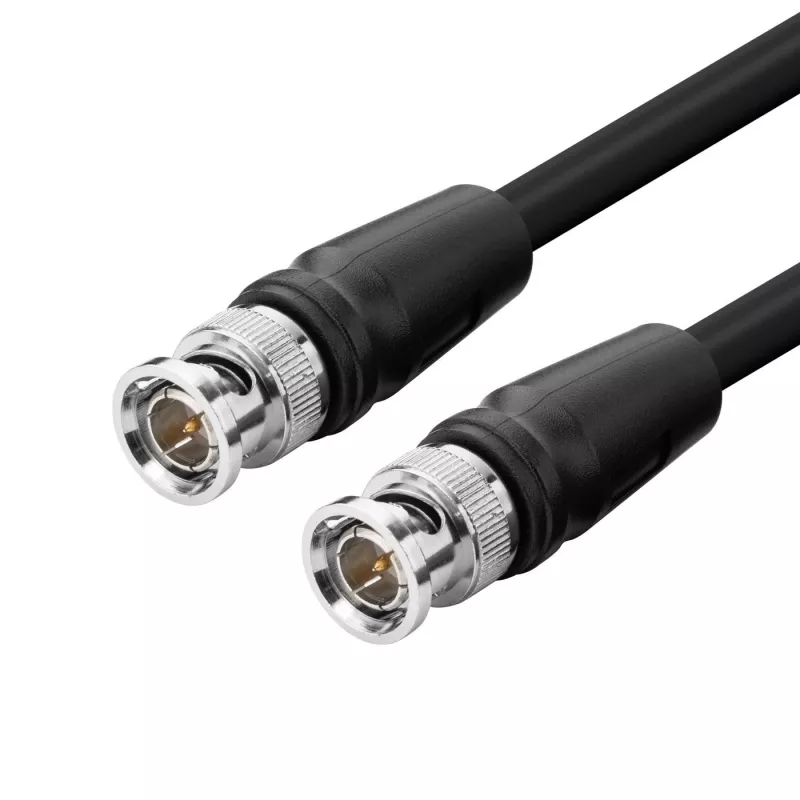

• Connectors: BNC to BNC
• Impedance: 75 ohm
• Supported formats: 12G-SDI / 6G-SDI / 3G-SDI / HD-SDI
• Maximum resolution: up to 4096×2160 at 60 Hz and Full HD 1080p
• Colour: Black
• Weight: 0.1 kg
• Certifications: CE, REACH, RoHS
• Warranty: 25 years
• Manufacturer country: Denmark

How to use

Connect one BNC connector to the SDI output of your source device (camera, switcher, player) and the other BNC connector to the SDI input of the receiving device (monitor, recorder, router). Ensure connectors are pushed and twisted until they lock to maintain a stable connection. Route the cable to avoid sharp bends and strong mechanical stress; the 3 m length is suitable for short runs within studios or equipment racks.

Recommendations

For best performance, use this RG-6 75 ohm cable for short professional SDI runs up to 3 m. Avoid tight bends and prolonged exposure to extreme temperatures. Verify connector seating before critical recordings and replace the cable if connectors or shielding show visible wear.
