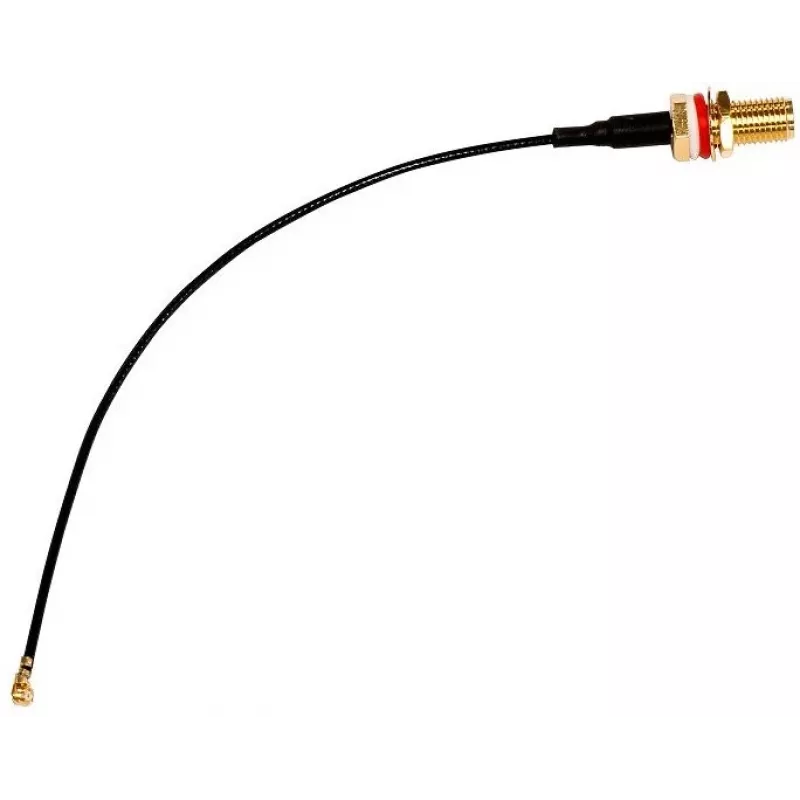

Cable coaxial MikroTik ACSMAUFL conector hembra SMA recto de 1 m negro

The MikroTik ACSMAUFL coaxial pigtail cable provides a U.fl-to-SMA female connection in a 1 m black cable, designed to link LTE cards to external antennas. It is compatible with devices like the wAP R kit, which include dedicated enclosure openings for such pigtails, and is intended for reliable RF signal transmission in networking setups.

Advantages

This 1 m cable offers a straight SMA female connector for secure attachment and a U.fl end suitable for compact radio modules and LTE cards. The black coaxial design ensures consistent signal transmission while keeping a low-profile installation where space is limited. Its construction supports routine indoor and sheltered outdoor use without introducing unnecessary complexity.

Suitable for

• Connecting LTE modem/cards to external antennas
• Use with MikroTik wAP R kit and other devices with U.fl access
• Short cable runs where a 1 m length is sufficient

Key specifications

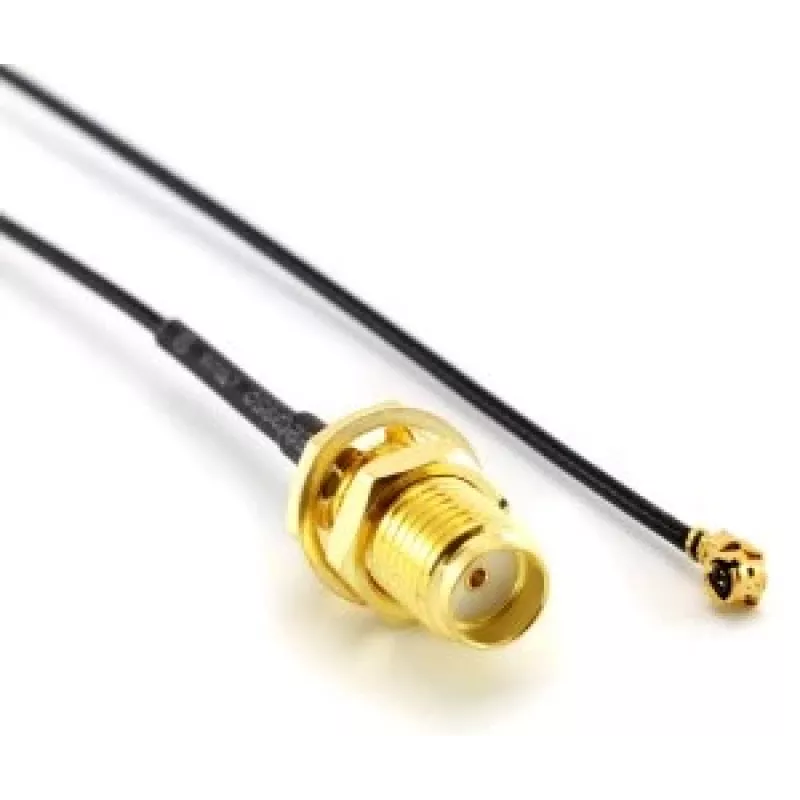

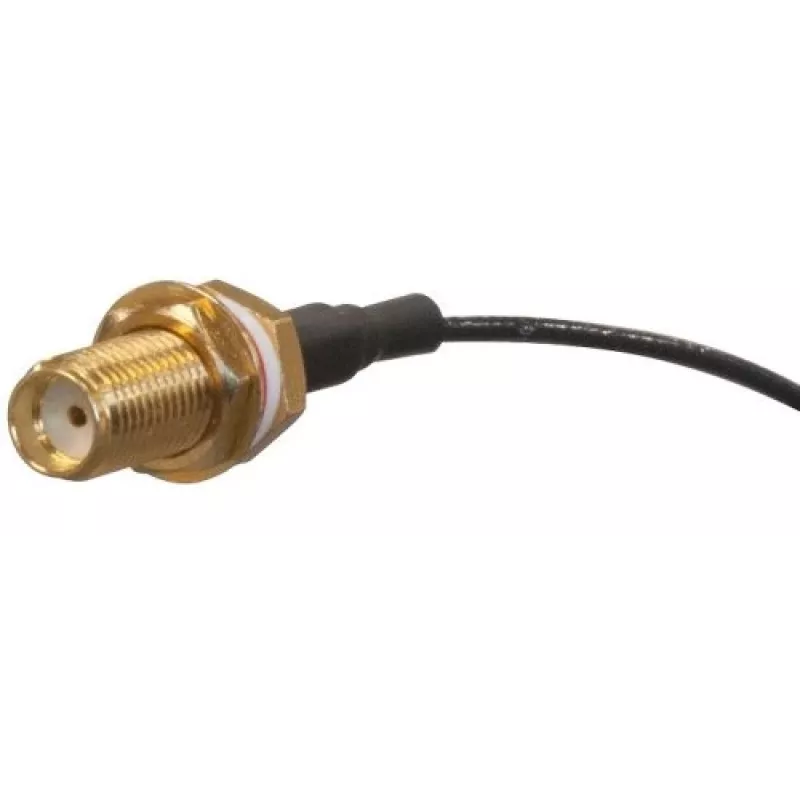

• Connector 1: SMA (female, straight)
• Connector 2: U.fl (for LTE card/module)
• Length: 1 m
• Colour: Black
• MPN: ACSMAUFL

How to use

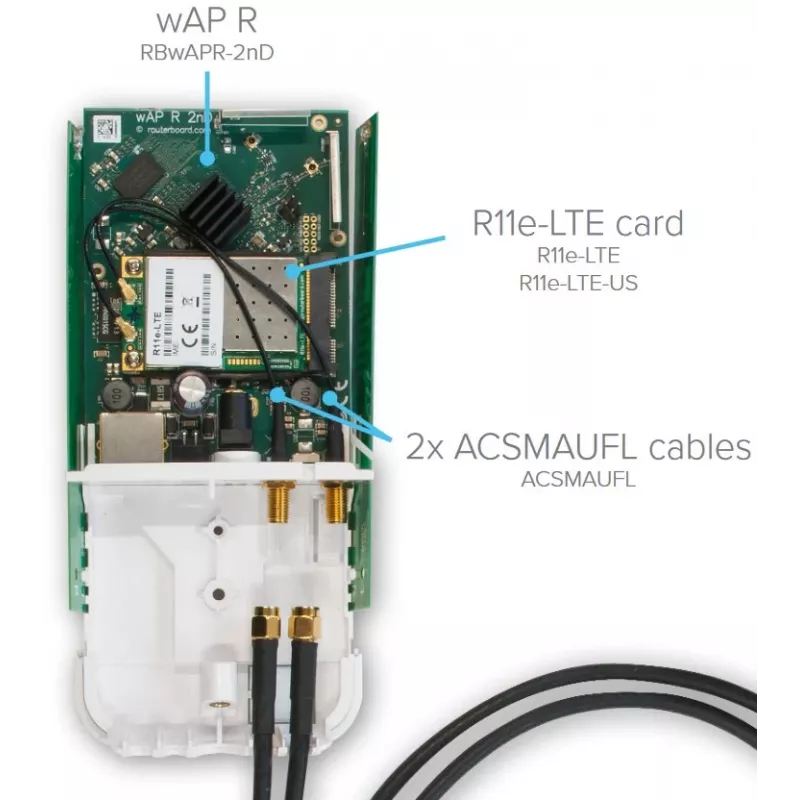

Locate the U.fl socket on your LTE card or radio module and carefully attach the U.fl end of the pigtail. Route the cable through the enclosure opening provided on the wAP R or equivalent device and secure the SMA female connector to the external antenna or antenna cable. Ensure connectors are aligned before applying gentle pressure to avoid damage to the U.fl connector.

Recommendations

Use the cable for short external antenna connections and avoid excessive bending near the U.fl connector. For outdoor-exposed installations, verify enclosure sealing and strain relief to prevent moisture ingress and mechanical stress.
