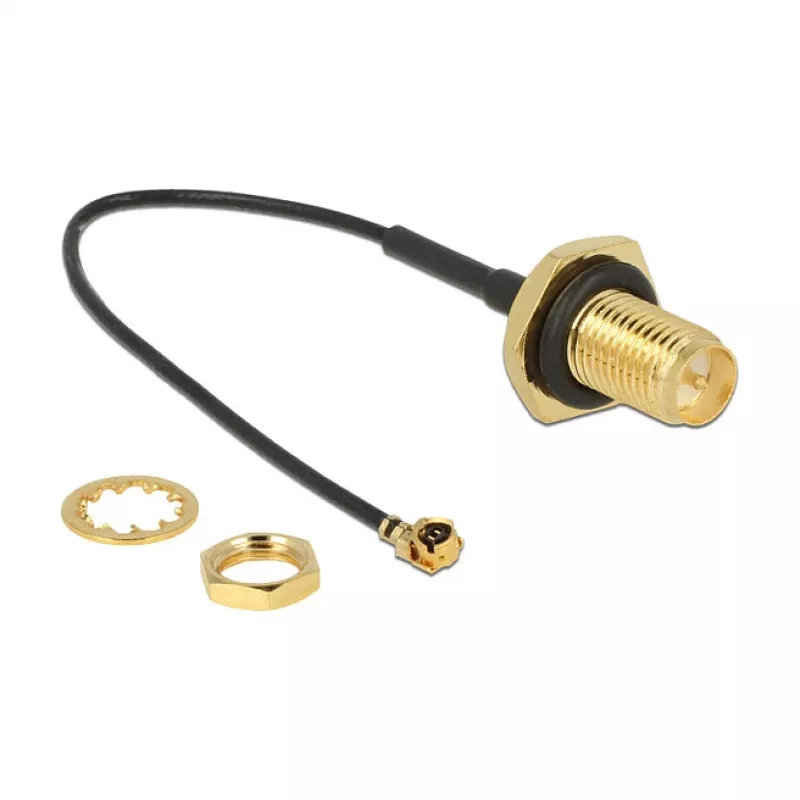

Cable coaxial RP-SMA MHF DeLOCK 89584

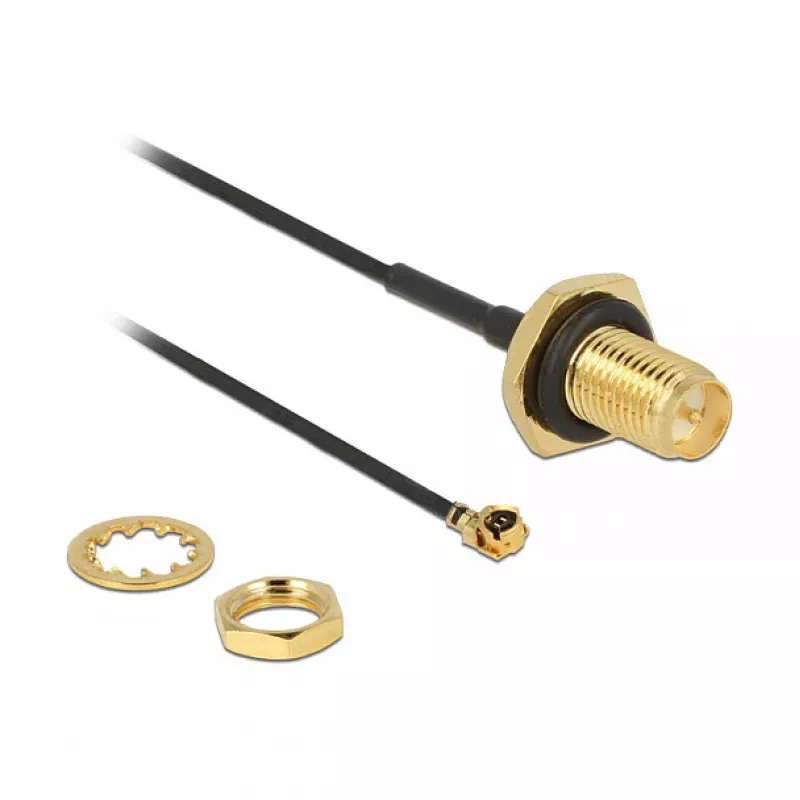

The DeLOCK 89584 coaxial cable is designed to transmit antenna signals inside electronic devices. It features an RP‑SMA male connector on one end and an MHF connector on the other, and comes in a 100 mm length. The cable is supplied in a polybag and is intended for RF connections where compact internal cabling and low signal attenuation are required.

Advantages

The RP‑SMA to MHF cable offers a compact connection solution for internal antenna routing, providing a splash‑protected RP‑SMA panel socket thanks to a loose sealing ring on the base plate. Its short 100 mm length reduces unnecessary cable run and helps maintain signal integrity in tight device layouts.

Suitable for

Key specifications

How to use

Connect the MHF end to the device's internal RF board connector and fasten the RP‑SMA male to the panel socket. Ensure the loose sealing ring on the RP‑SMA base plate is correctly positioned to provide a splash‑protected interface to the unit. Avoid excessive bending near the connector interfaces to prevent mechanical stress and maintain signal performance.

Recommendations

For optimal signal quality, use this short coaxial cable for internal connections only and avoid routing it alongside high‑power cables. Inspect connectors before installation and replace the cable if the connectors or sealing ring show signs of damage.
