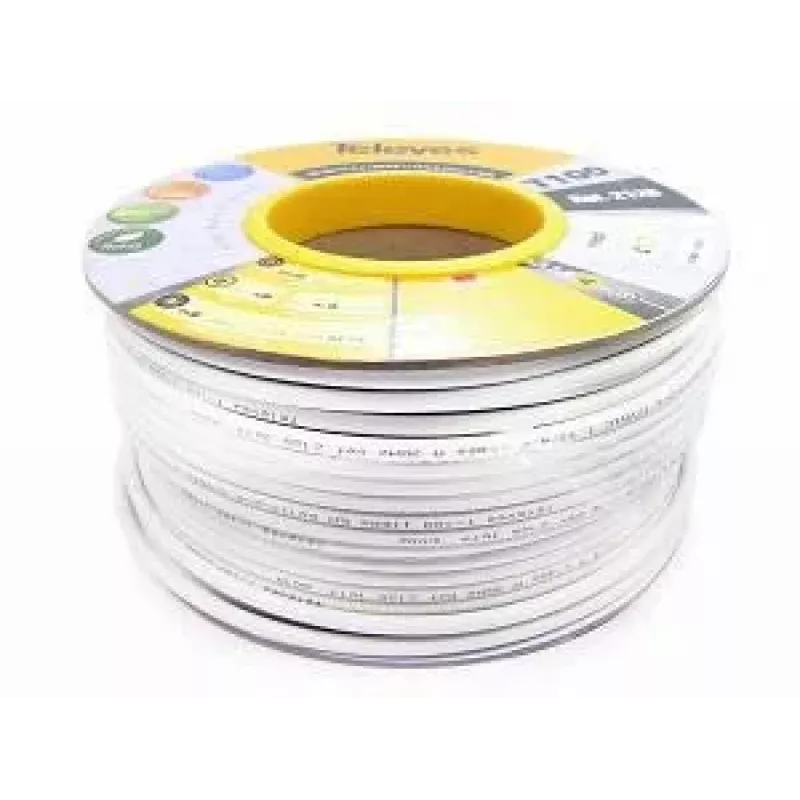

Cable coaxial Televes T-100 PVC Eca clase A - 100 m, blanco

The Televes T-100 is a high-performance coaxial cable designed for professional TV and satellite installations. With a 75 Ohm impedance and Class A shielding, it ensures excellent signal quality and minimal interference. This 100-meter drum is ideal for long cable runs in residential and commercial buildings.

Advantages

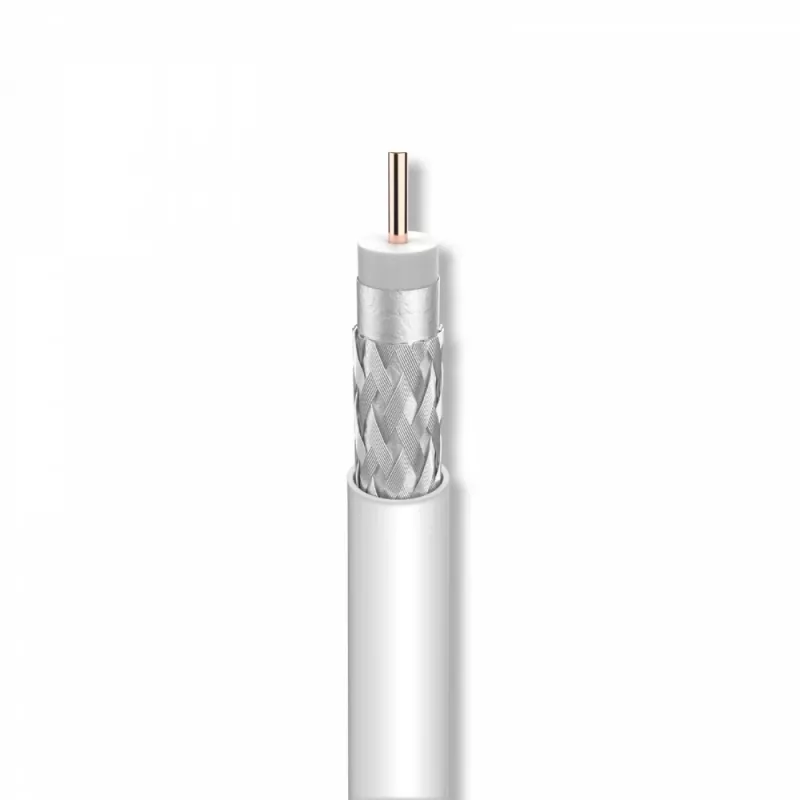

Double shielding (aluminium foil + tinned copper braid) provides superior protection against electromagnetic interference. The solid copper conductor guarantees low signal loss and reliable performance. PVC outer jacket is durable and easy to install.

Suitable for

• TV and satellite antenna installations
• Broadband and internet connections
• CCTV and video surveillance systems
• Any application requiring high-quality 75 Ohm coaxial cable

Key specifications

• Cable type: Coaxial
• Impedance: 75 Ohm
• Length: 100 m
• Inner conductor: Solid copper, 1.00 mm diameter
• Dielectric: Foamed PE, 4.8 mm diameter
• Shielding: Double (Al foil + tinned Cu braid), braid coverage >77%
• Shielding class: Class A
• Outer jacket: PVC, 6.9 mm diameter
• CPR fire class: Eca
• Attenuation: 9.0 dB/100m @ 200 MHz, 19.0 dB/100m @ 862 MHz, 31.0 dB/100m @ 2150 MHz
• Operating temperature: -5°C to +70°C
• Colour: White

Recommendations

For best performance, use with F-type connectors and ensure proper grounding. Suitable for indoor and outdoor use when protected from direct sunlight.
