Cable de alimentación Bachmann 116.280 blanco 1,5 m

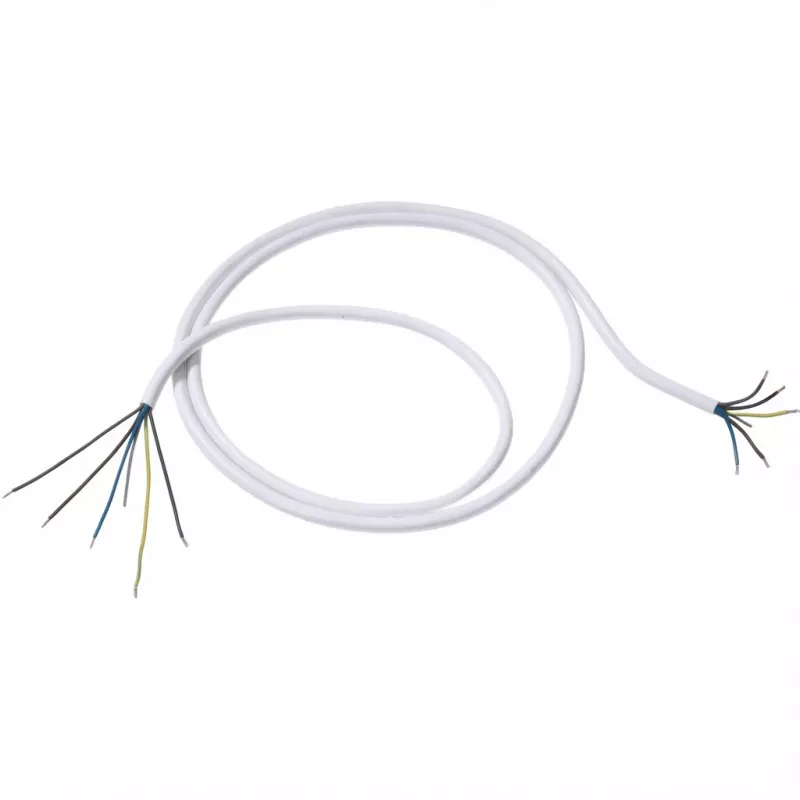

The Bachmann 116.280 power cable is a 1.5 m mains lead designed for connecting electrical equipment. The cable comes in white and provides stripped conductor ends fitted with end sleeves: one end has 50 mm stripped with end sleeves, the other end has 110 mm stripped with end sleeves and a 140 mm green/yellow protective conductor. This cable is intended for wired installations where a prepared conductor end is required for terminal connection.

Advantages

The cable features factory-fitted end sleeves on all conductors for reliable screw-terminal connections and reduced risk of stray wires. The three-conductor design includes a clearly identified green/yellow protective conductor. The 1.5 m length offers flexibility for short to medium-distance connections while the white outer sheath provides discreet appearance in many environments.

Suitable for

• Connecting appliances or equipment to terminal blocks or distribution units
• Repair or replacement of existing appliance leads where stripped ends are required
• Fixed wiring applications requiring a prepared protective conductor

Key specifications

• Brand: Bachmann
• Model / MPN: 116.280
• EAN: 4016514000944
• Length: 1.5 m
• Color: White
• Conductors: Three-core with protective conductor (green/yellow)
• End 1: 50 mm stripped with end sleeves
• End 2: 110 mm stripped with end sleeves; protective conductor 140 mm

How to use

Verify that the cable specifications match the voltage and current requirements of the equipment. Securely fasten the stripped conductor ends with end sleeves into the corresponding terminal screws, observing correct live, neutral and protective conductor assignment. Ensure all connections are tightened and that no bare conductor is exposed beyond the end sleeves. Route the cable to avoid sharp edges and mechanical stress.

Recommendations

Use this power cable only in installations that permit prepared stripped ends; do not use as a portable mains lead without appropriate strain relief and enclosure. If in doubt about electrical connection or local regulations, consult a qualified electrician.
