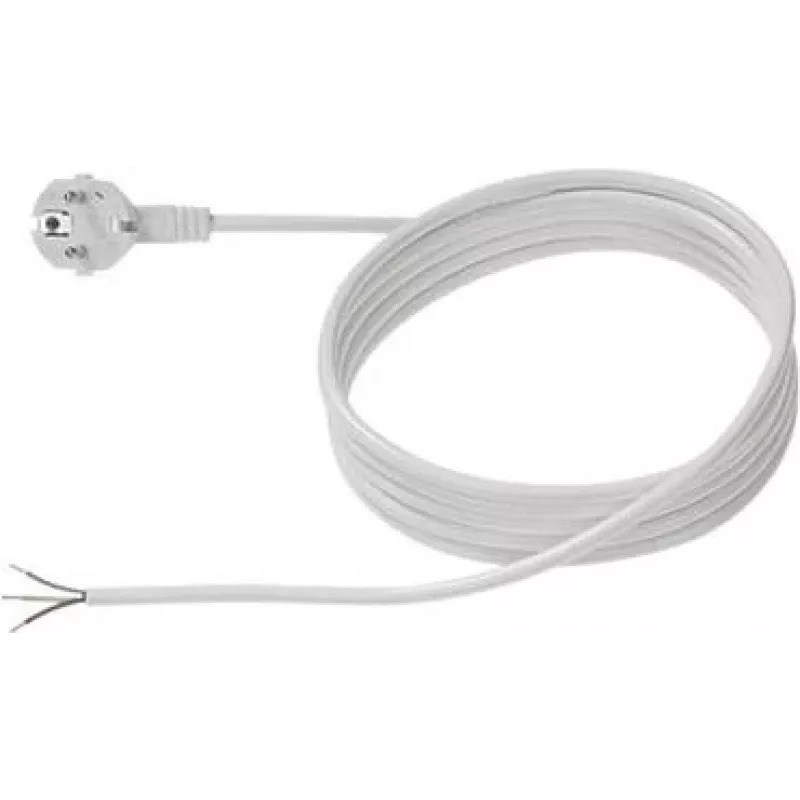

Cable de alimentación Bachmann 301.275 blanco 3 m

The Bachmann 301.275 power cable is a 3 m mains lead designed for delivering up to 250 V and 16 A. It combines a moulded right-angle plug with a dual earthing contact system on one end and a 30 mm stripped conductor with end sleeves on the other end, making it suitable for direct connection to devices or terminal blocks where a prepared conductor is required.

Advantages

The cable provides a compact right-angle plug to reduce strain and save space near sockets, while the dual earthing contact system ensures a reliable protective earth connection. With pre-stripped 30 mm conductors fitted with end sleeves, the product simplifies installation and improves contact reliability in clamps or screw terminals. The 3 m length offers flexibility in positioning equipment without additional extensions.

Suitable for

• Connecting office equipment and desktop appliances to mains sockets
• Wiring devices into distribution units or terminal blocks
• Replacement or custom cabling where a right-angle plug and prepared conductor end are needed

Key specifications

• Brand: Bachmann
• Model / MPN: 301.275
• EAN: 4016514002108
• Length: 3 m
• Input voltage: 250 V
• Current rating: 16 A
• End 1: moulded right-angle plug with dual earthing contact system
• End 2: 30 mm stripped conductors with end sleeves

How to use

Insert the right-angle plug into a compatible mains socket, ensuring the earth contact engages correctly. Route the cable to the device or terminal block and connect the stripped conductors with end sleeves into the appropriate clamps or screw terminals following polarity and earth conventions. Tighten terminal screws to the manufacturer's torque recommendations and secure the cable to prevent strain on the connections.

Recommendations

Use the cable within its rated limits (250 V, 16 A). Inspect end sleeves and stripped conductors before installation and replace the cable if insulation is damaged. Avoid excessive bending near the moulded plug and secure the cable to prevent mechanical stress. For fixed installations, follow local electrical codes and, where required, have installation performed by a qualified electrician.
