Cable de alimentación Bachmann 304.184, 2 m, negro

Cable de alimentación Bachmann 304.184, 2 m, negro
-15%
Black Week
Cable de alimentación Bachmann 304.184, 2 m, negro
17,69 €
20,93 €−15 %
PDF
PDF
Stock 18 Código 1417152 Modelo 304.184 Garantía 3 años

Envíos y devoluciones

Entrega estimada lunes, 14 de diciembre
Te mantendremos informado a través de nuestro sistema de seguimiento detallado
Opciones de pago
Tarjeta bancariaVisaMastercardApple PayGoogle PayTransferencia bancaria

Haz una pregunta: el asistente IA responde al instante.

Descripción

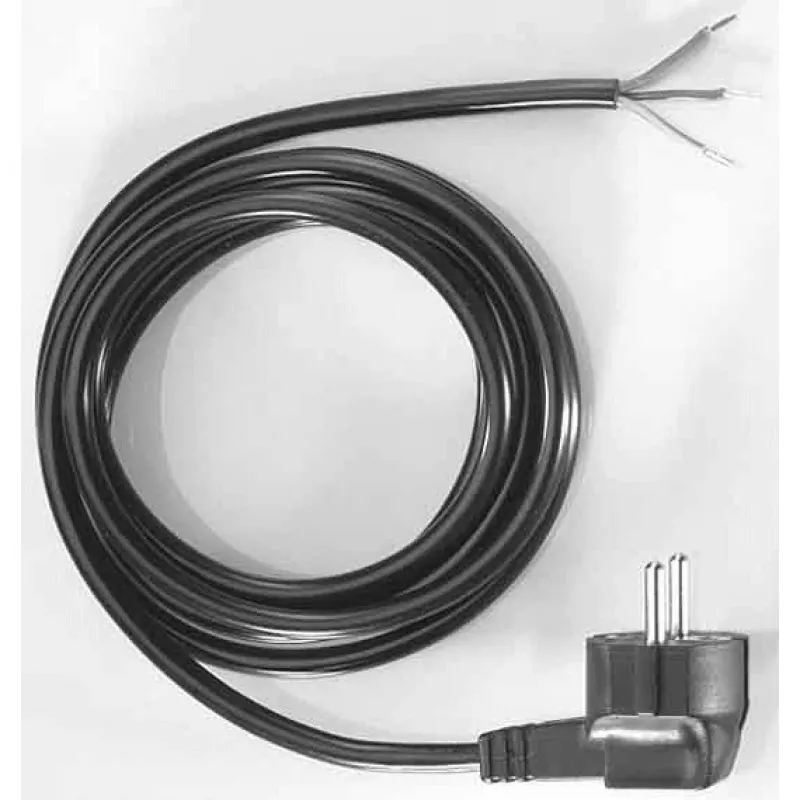

Bachmann 304.184 is a 2 m black power cable designed to supply electrical devices. The cable has a moulded right-angled plug with a dual earthing contact system at one end and the other end is delivered stripped to 30 mm with ferrules for direct connection. The cable is supplied individually packed and is intended for replacing or extending existing power leads where a 2 m black cable is required.

Advantages

The moulded right-angled plug with dual earthing contact system provides secure grounding and a compact connection profile. The 30 mm stripped end with ferrules facilitates safe and reliable wiring into terminals or distribution blocks. Individual packaging protects the cable during storage and transport.

Suitable for

  • Replacing a damaged or worn power lead with a 2 m cable
  • Extending an existing power connection where a 2 m length is sufficient
  • Hardwiring into equipment or terminal blocks using the stripped ferrule end

Key specifications

  • Cable length: 2 m
  • Product colour: Black
  • End 1: Right-angled moulded plug with dual earthing contact system
  • End 2: 30 mm stripped with ferrules (no secondary connector)
  • Maximum load rating according to conductor cross-section: 70 °C
  • Packaging: Individually packed

How to use

Connect the moulded right-angled plug (End 1) to the mating inlet. Prepare the stripped 30 mm ferrule end (End 2) for connection by ensuring wires are correctly identified and securely fastened into the target terminal or distribution block. Observe correct polarity and grounding practices during installation.

Recommendations

Verify that the conductor cross-section and the 70 °C maximum load rating match the requirements of your equipment. Do not exceed the specified temperature rating and ensure all connections are tightened to the terminal manufacturer's torque specifications. If unsure about wiring, consult a qualified electrician.

Aspectos destacados
  • Replacing a damaged or worn power lead with a 2 m cable
  • Extending an existing power connection where a 2 m length is sufficient
  • Hardwiring into equipment or terminal blocks using the stripped ferrule end
  • Cable length: 2 m
  • Product colour: Black
  • End 1: Right-angled moulded plug with dual earthing contact system
  • End 2: 30 mm stripped with ferrules (no secondary connector)
  • Maximum load rating according to conductor cross-section: 70 °C
  • Packaging: Individually packed

Especificaciones

Especificaciones
Ángulo del conector
90
Cantidad por paquete
1 pc(s)
Color del producto
Negro
Conector 2
No
Diámetro
7 mm
Formato del conector 1
Angular
Género del conector 1
Macho
Longitud del cable
2 m
Material de la funda
Policloruro de vinilo (PVC)
Peso
0.15 kg
