Cable de alimentación Bachmann 321.175 negro 3 m

Cable de alimentación Bachmann 321.175 negro 3 m
-15%
Black Week
Cable de alimentación Bachmann 321.175 negro 3 m
26,19 €
30,98 €−15 %
PDF
PDF
Stock 32 Código 2199203 Modelo 321.175 Garantía 3 años

Envíos y devoluciones

Entrega estimada lunes, 14 de diciembre
Te mantendremos informado a través de nuestro sistema de seguimiento detallado
Opciones de pago
Tarjeta bancariaVisaMastercardApple PayGoogle PayTransferencia bancaria

Haz una pregunta: el asistente IA responde al instante.

Descripción

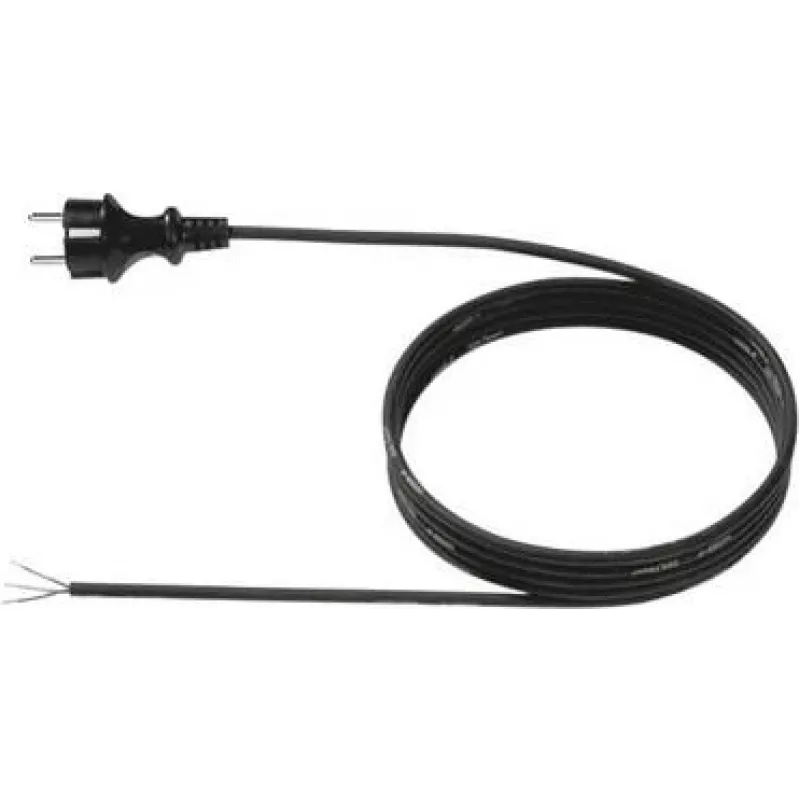

The Bachmann 321.175 power cable is a 3 m black mains lead designed for a rated voltage of 250 V and a rated current of 16 A. One end has a moulded central plug with a dual earthing contact system and splash-water protection; the other end is stripped to 30 mm and fitted with end sleeves, providing a ready-to-connect conductor end for installation or terminal block connection.

Advantages

The cable combines a robust moulded plug with splash-water protection and a securely terminated stripped end, offering reliable electrical contact and reduced installation time. Its 3 m length gives flexibility in equipment placement, while the 16 A/250 V rating suits standard mains-powered devices. The fitted end sleeves improve mechanical and electrical connection quality compared with bare strand ends.

Suitable for (tasks / use cases)

  • Connecting mains-powered equipment to a fixed power source where a hardwired connection is required
  • Temporary or permanent installations in home or office environments
  • Replacement of damaged mains leads for compatible devices with 16 A rating

Key specifications

  • Brand: Bachmann
  • Model / MPN: 321.175
  • EAN: 4016514002764
  • Length: 3 m
  • Rated voltage: 250 V
  • Rated current: 16 A
  • End 1: moulded central plug with dual earthing contact system; splash water protected
  • End 2: 30 mm stripped with end sleeves

How to use

Verify that the device and installation match the cable's ratings (250 V, 16 A) before use. Connect the moulded plug (End 1) to a compatible socket and secure the stripped end with end sleeves to the device's terminal block or wiring point according to applicable wiring standards and local regulations. Ensure polarity and earth connection are correct and tighten terminals to the recommended torque. Do not use the cable if the plug, insulation or stripped end shows visible damage.

Recommendations

For safe operation, avoid exposing the cable to continuous moisture beyond splash-water exposure, protect it from mechanical strain and sharp edges, and install according to local electrical codes. If uncertain about wiring, consult a qualified electrician.

Aspectos destacados
  • Connecting mains-powered equipment to a fixed power source where a hardwired connection is required
  • Temporary or permanent installations in home or office environments
  • Replacement of damaged mains leads for compatible devices with 16 A rating
  • Brand: Bachmann
  • Model / MPN: 321.175
  • EAN: 4016514002764
  • Length: 3 m
  • Rated voltage: 250 V
  • Rated current: 16 A
  • End 1: moulded central plug with dual earthing contact system; splash water protected
  • End 2: 30 mm stripped with end sleeves

Especificaciones

Especificaciones
Color del producto
Negro
Corriente de entrada
16
Diámetro
6.7 mm
Formato del conector 1
Recto
Género del conector 1
Macho
Longitud del cable
3 m
Material de la funda
Neopreno
Tamaño del núcleo
0.75 mm²
Tensión de entrada
250
