Cable de alimentación Bachmann 375.117, 5 m, negro

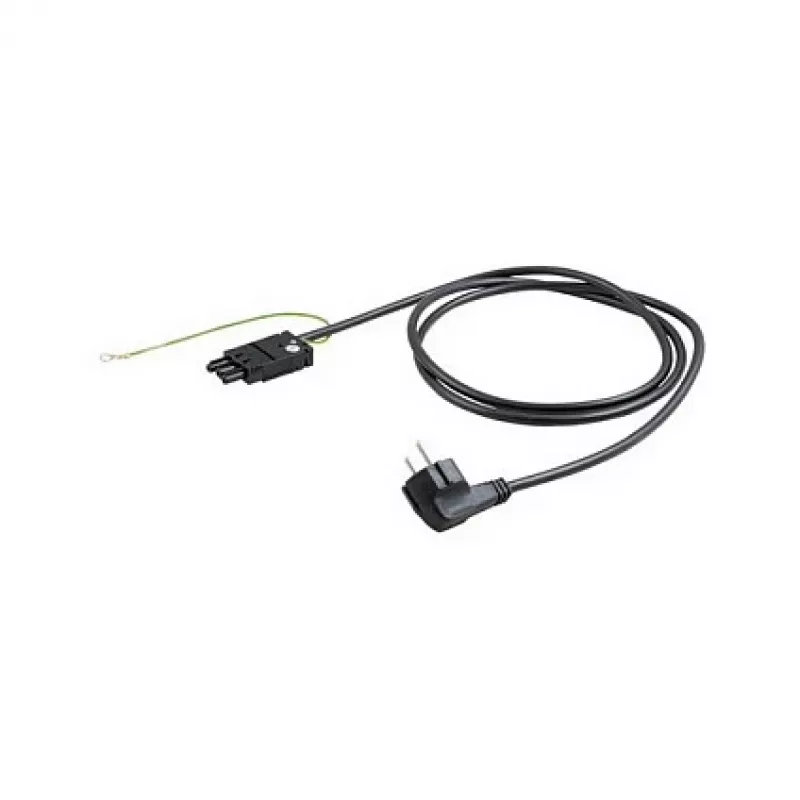

Power cable Bachmann 375.117 is a 5 m black mains cable designed to connect electrical devices to a power source. It features H05VV-F 3G 1.5 mm² flexible conductor cable, a right-angled earthing contact plug at one end and a Wieland GST18i3 socket at the other end, with an additional 0.3 m green/yellow protective earth lead terminated with an M6 ring terminal. The cable provides a discreet black finish and extended reach for flexible device placement in homes or offices.

Advantages

The cable uses H05VV-F 3G 1.5 mm² construction for reliable mains transmission and flexibility. A right-angled earthing contact plug reduces strain at the outlet, while the Wieland GST18i3 connector ensures secure, standardized device connection. The separate 0.3 m green/yellow earth lead with M6 ring termination enables direct earthing where required.

Suitable for

• Connecting office equipment and home electronics to mains power
• Situations requiring a 5 m cable length for greater placement flexibility
• Applications needing a Wieland GST18i3 mating connector or separate earth termination

Key specifications

• Length: 5 m
• Cable type: H05VV-F 3G 1.5 mm²
• End 1: Right-angled earthing contact plug
• End 2: Wieland GST18i3 socket
• Earth lead: 0.3 m, 1.5 mm² green/yellow with M6 ring terminal
• Color: Black
• Brand / MPN: Bachmann 375.117
• EAN: 4016514032891

How to use

Insert the right-angled earthing contact plug into a compatible mains outlet and connect the Wieland GST18i3 socket to the device input that accepts GST18i3. If separate earthing is required, fasten the M6 ring terminal of the green/yellow earth lead to a suitable earth point. Ensure all connections are made with the power disconnected and verify secure seating before applying mains voltage.

Recommendations

Use the cable only for its intended mains power connections and within the cable's rated conductor size. Avoid routing the cable across sharp edges, hot surfaces or areas with heavy mechanical stress. Inspect connectors and the earth termination periodically for wear or damage and replace if any insulation or conductor integrity is compromised.
