Cable de conexión de fibra óptica monomodo OS2 MTP/MPO-12 de 10m StarTech.com - lengüeta push/pull

Engineered for high-density 40/100Gbps network links, this 10-meter MTP/MPO-12 single-mode OS2 fiber patch cable delivers elite optical performance with an ultra-low insertion loss of just 0.35dB. The push/pull tab connector enables effortless insertion and extraction in crowded patch panels, while the plenum-rated OFNP jacket meets strict fire safety codes for ceiling and riser installations. Ideal for data centers, telecom rooms, and enterprise backbones, this cable is built to handle the most demanding bandwidth requirements with precision and reliability.

Overview

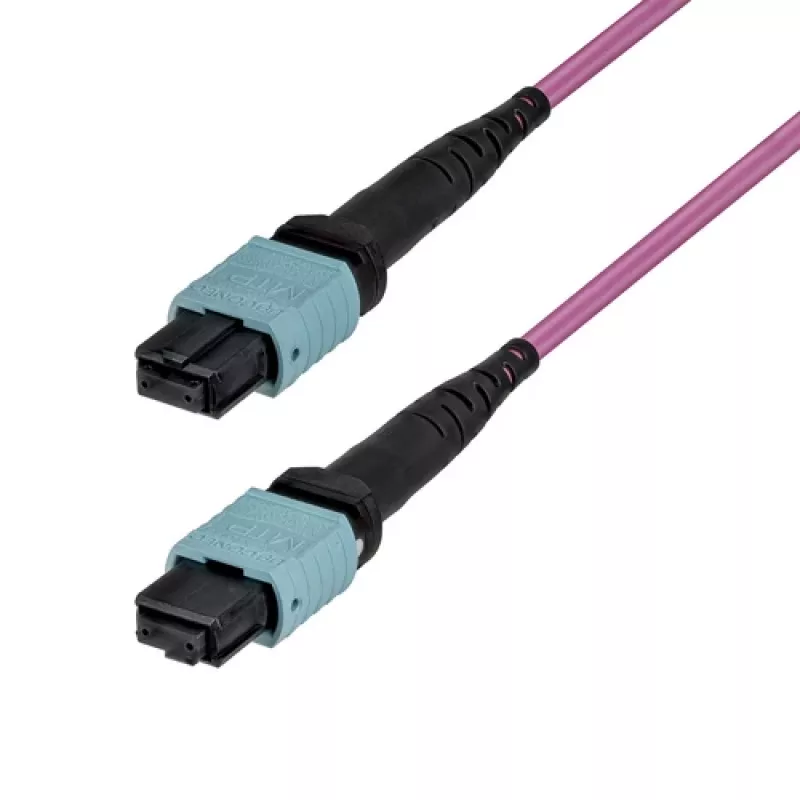

The StarTech.com OS2MTP12AOFNP10M is a premium 12-fiber MTP/MPO patch cable designed for high-speed single-mode applications. It features a female MTP/MPO connector on both ends with a convenient push/pull tab for easy handling. The cable is constructed with 9/125µm OS2 single-mode fiber, ensuring minimal signal loss over long distances and compatibility with 40G and 100G Ethernet standards. The OFNP (Optical Fiber Nonconductive Plenum) jacket is flame-retardant and low-smoke, making it safe for use in plenum spaces without conduit. With a length of 10 meters, it provides flexible reach for connecting switches, routers, and fiber distribution units.

What stands out

• MTP/MPO-12 connector supports 12 fibers in a single compact interface, ideal for high-density patching.
• Push/pull tab design simplifies cable management and reduces risk of damage during installation.
• OS2 single-mode fiber with 9/125µm core/cladding diameter ensures low attenuation and high bandwidth.
• OFNP plenum-rated jacket meets stringent fire safety standards for use in air-handling spaces.
• 10-meter length offers flexibility for rack-to-rack or cross-connect applications.
• Low insertion loss and high return loss guarantee reliable signal integrity for 40/100G networks.

Technical details

• Connector A: MTP/MPO-12 female with push/pull tab
• Connector B: MTP/MPO-12 female with push/pull tab
• Fiber type: OS2 single-mode, 9/125µm
• Cable length: 10 meters (32.8 feet)
• Jacket rating: OFNP plenum
• Insertion loss: ≤ 0.35 dB typical
• Return loss: ≥ 60 dB
• Polarity: Type A (straight-through)
• Compliance: TIA/EIA-604-5 (FOCIS-5), IEC 61754-7

Our verdict

A robust and future-proof solution for high-speed fiber connectivity, this StarTech.com cable combines ease of use with top-tier performance. Its plenum rating and push/pull tab make it a standout choice for professional installations where safety and accessibility are paramount.
