EFB Elektronik latiguillo simplex SC/APC-SC/APC 9/125 µm OS2 LSZH amarillo 3,0 mm 7,5 m

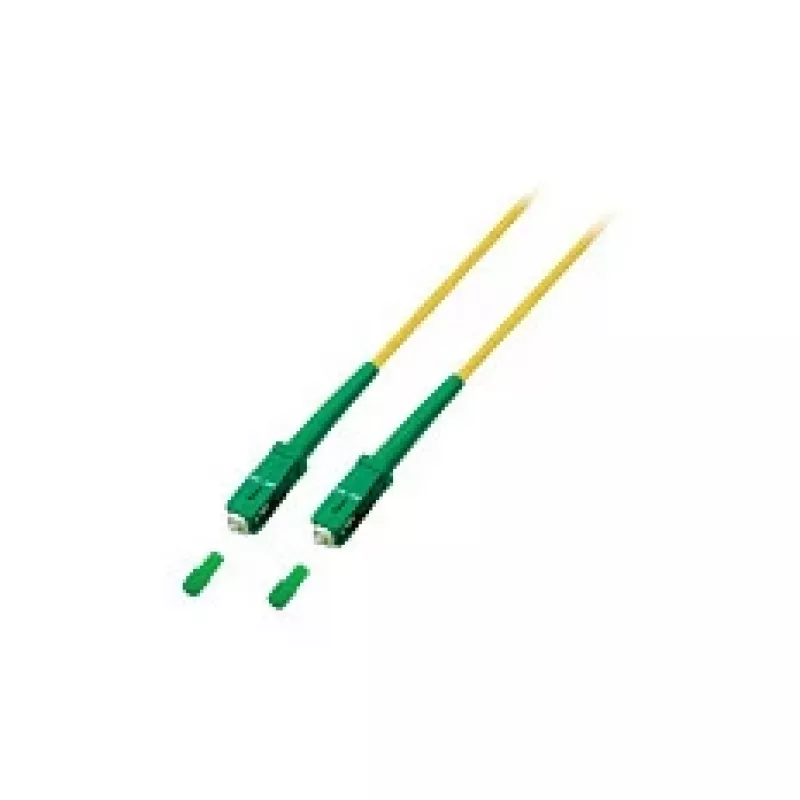

The EFB Elektronik Simplex Jumper SC/APC-SC/APC is a high-quality single-mode fiber optic patch cable designed for reliable data transmission in FTTH, LAN, and WAN networks. With a 9/125 µm core/cladding and OS2 classification, it ensures low signal loss and high bandwidth over long distances. The APC polish provides excellent return loss performance, making it ideal for high-speed applications.

Advantages

This jumper offers low insertion loss (≤0.3 dB) and high return loss (≥60 dB), ensuring minimal signal degradation. The LSZH (Low Smoke Zero Halogen) jacket enhances safety in enclosed spaces by reducing toxic fumes in case of fire. The yellow color facilitates easy identification for single-mode connections.

Suitable for

• High-speed data networks
• Fiber to the Home (FTTH)
• Local Area Networks (LAN)
• Wide Area Networks (WAN)
• Data centers and telecom rooms

Key specifications

• Connector Type: SC/APC to SC/APC
• Fiber Mode: Single-mode
• Fiber Class: OS2
• Core/Cladding Diameter: 9/125 µm
• Cable Construction: Simplex
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Cable Diameter: 3.0 mm
• Cable Length: 7.5 m
• Polish Type: APC (Angled Physical Contact)
• Insertion Loss (typical): ≤ 0.3 dB
• Return Loss (typical): ≥ 60 dB
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Mating Cycles: 500
• Compliance: RoHS, REACH
• Standard Compliance: IEC 61754-4, TIA/EIA-568-C.3

Recommendations

For optimal performance, ensure connectors are clean before mating. Use appropriate patch panels and splicing equipment. This cable is suitable for indoor installations where low smoke and halogen-free properties are required.
