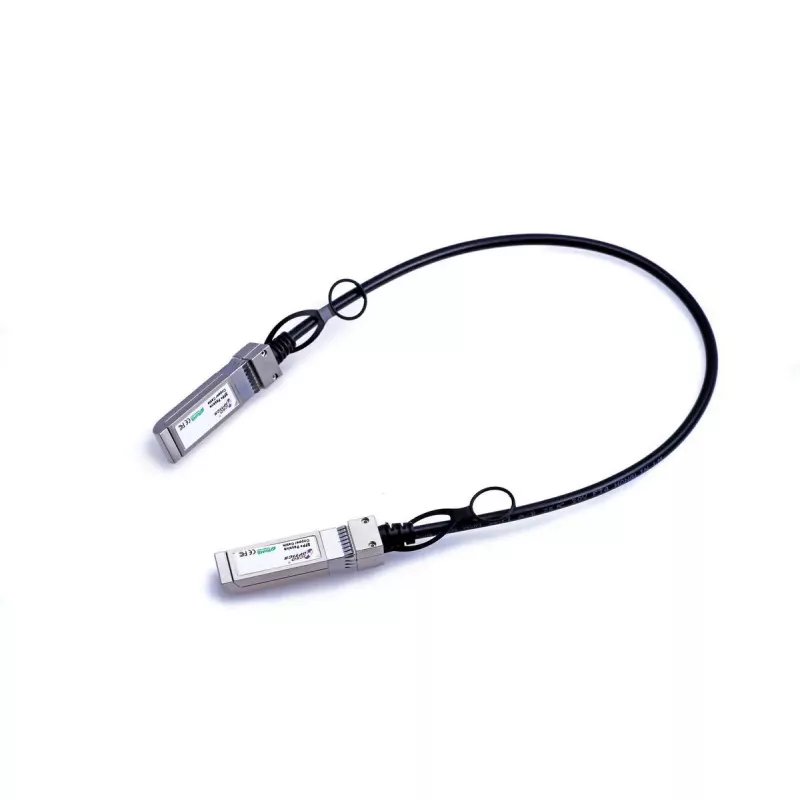

Cable de conexión directa de cobre SFP28 25G 3 m Lanview MO-INT-SFP28-DAC-25G-3M

Lanview MO-INT-SFP28-DAC-25G-3M is a 3-meter copper Direct Attach Cable (DAC) with SFP28 connectors that supports 25G connectivity. It is designed for short-reach interconnections between switches, servers and NICs, offering a low-latency, cost-effective link without separate transceivers and intended for data center top-of-rack and server-to-switch connections where reliable 25G links are required.

Advantages

The copper Direct Attach Cable delivers 25G performance with low latency and reduced power consumption compared with optical links that require transceivers. The SFP28 form factor ensures wide compatibility with 25G-capable switches, servers and NICs, and the 3 m length suits typical rack-to-rack and server-to-top-of-rack cabling. The product is offered by Lanview under the Micro-Optics compatibility program and is intended to work with Intel-compatible ports.

Suitable for

• Top-of-rack switch to server connections
• Short-reach switch-to-switch links within a rack or adjacent racks
• Server NIC to switch port direct connections

Key specifications

• Connector type: SFP28 to SFP28
• Data rate: 25 Gbps
• Length: 3 m
• Cable type: Copper Direct Attach Cable (DAC)
• Manufacturer part number (MPN): MO-INT-SFP28-DAC-25G-3M
• Brand: Lanview
• EAN: 5715063803318

How to use

Insert each SFP28 connector into the corresponding SFP28 port on the switch, server or NIC until the module latches. Ensure both ends are seated and the link LEDs indicate a connection. No transceivers or additional power modules are required; configure the network interfaces in the host or switch operating system as needed for 25G operation.

Recommendations

Use the DAC for short-reach connections up to its 3 m length inside racks or between adjacent racks. Verify compatibility with your equipment's 25G SFP28 ports and check that firmware or driver settings do not restrict third-party DAC use.
