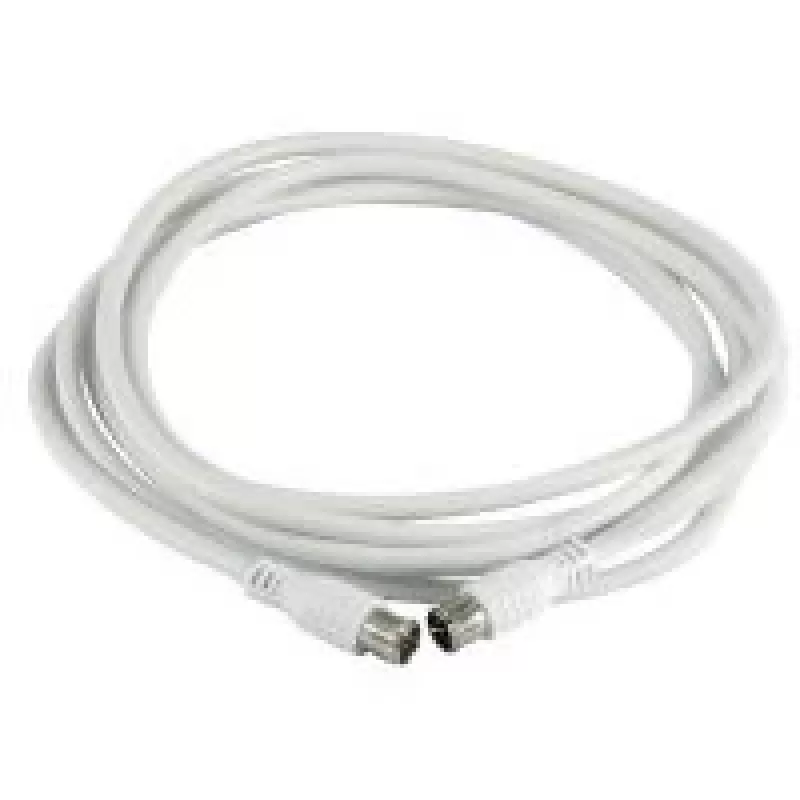

Cable de conexión Kathrein ETG 15 1,5 m conector F a conector F Quick-Connect

The Kathrein ETG 15 is a high-quality coaxial connection cable designed for reliable signal transmission in satellite and cable TV systems. With a length of 1.5 meters and F-plug to F-plug quick-connect connectors, this cable ensures easy installation and excellent performance.

Advantages

Quick-connect push-on connectors for fast and secure connections. Double shielding provides >90 dB shielding effectiveness, minimizing interference. Suitable for a wide frequency range from 5 to 2400 MHz, making it versatile for various applications.

Suitable for

• Satellite (SAT) systems
• Cable TV (CATV) networks
• DVB-T and radio applications

Key specifications

• Cable type: Coaxial
• Connector type: F-Plug (Male) to F-Plug (Male)
• Connector design: Quick-Connect / Push-On
• Cable length: 1.5 m
• Impedance: 75 Ohm
• Frequency range: 5 - 2400 MHz
• Shielding: Double shielded
• Shielding effectiveness: >90 dB
• Return loss: >20 dB
• Attenuation (at 2000 MHz): ~0.3 dB
• Inner conductor material: Copper (Cu)
• Outer jacket material: PVC
• Outer diameter: ~5 mm
• Colour: White

Recommendations

For optimal signal quality, use this cable with compatible F-type connectors and ensure proper termination. Ideal for indoor installations where quick and reliable connections are required.
