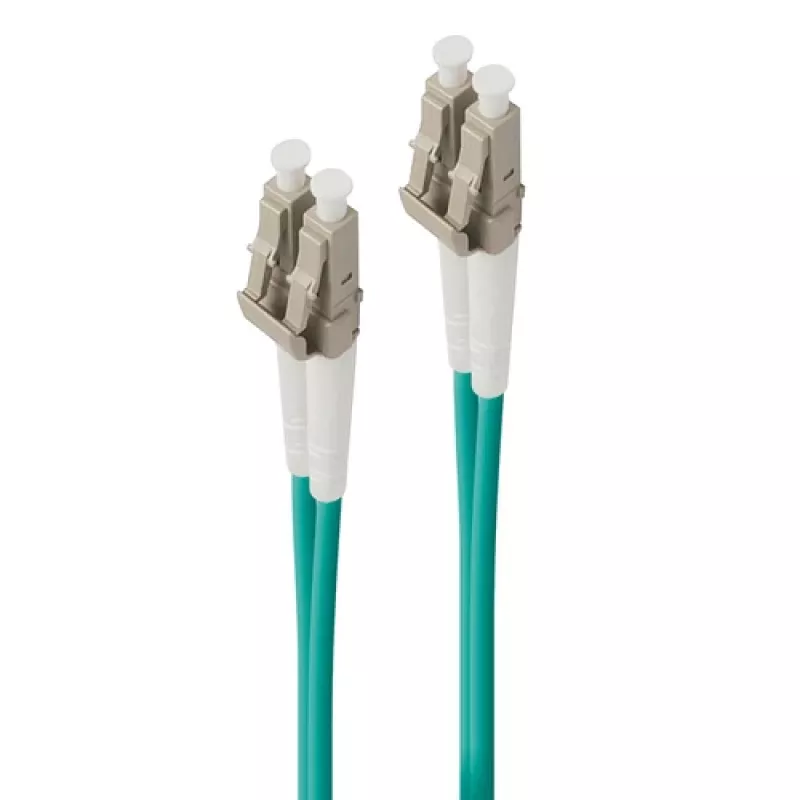

Cable de fibra óptica ALOGIC 0,5 m LC-LC 10G multimodo dúplex LSZH OM3

The ALOGIC 0.5m LC-LC 10G Multi Mode Duplex LSZH OM3 fibre cable is engineered for high-speed data transmission in 10G networks. With a 50 µm core and duplex LC connectors, the cable supports full-duplex multimode communication and is backward compatible with OM2 (50/125) infrastructure. Constructed with LSZH jacket material, it reduces smoke and toxic emissions in case of fire. Each cable is individually tested and supplied with performance reports to ensure reliability.

Advantages

The OM3 cable supports up to 10 Gigabit applications while remaining compatible with existing 50/125 OM2 installations. It features duplex LC-LC terminations for compact, reliable connections and an LSZH outer jacket for enhanced safety in enclosed environments. Individual testing and supplied performance reports provide documented assurance of quality and consistency.

Suitable for

• 10G Ethernet links in data centers
• Server-to-switch and switch-to-switch connections
• Office network backbones and patch panels
• Short-run multimode fiber connections within racks and cabinets

Key specifications

• Manufacturer: ALOGIC
• MPN: LCLC-0.5-OM3
• EAN: 9350784004833
• Length: 0.5 m
• Connector type: LC-LC duplex
• Mode: Multimode OM3 (50 µm core)
• Data rate support: up to 10 Gbps
• Jacket: LSZH (Low Smoke Zero Halogen)

How to use

Inspect connectors and cable for damage before installation. Align and insert LC connectors into LC ports on transceivers, switches or patch panels until they click into place. Use appropriate cable management to avoid tight bends and strain; observe manufacturer minimum bend radius. For removal, press the LC latch and gently withdraw the connector.

Recommendations

Keep the cable run short and protected within racks or conduits for best 10G performance. Use dust caps on unused connectors and avoid repeated mating cycles beyond the connector's rated lifecycle. Follow workplace safety practices for LSZH materials when routing near heat sources and electrical equipment.
