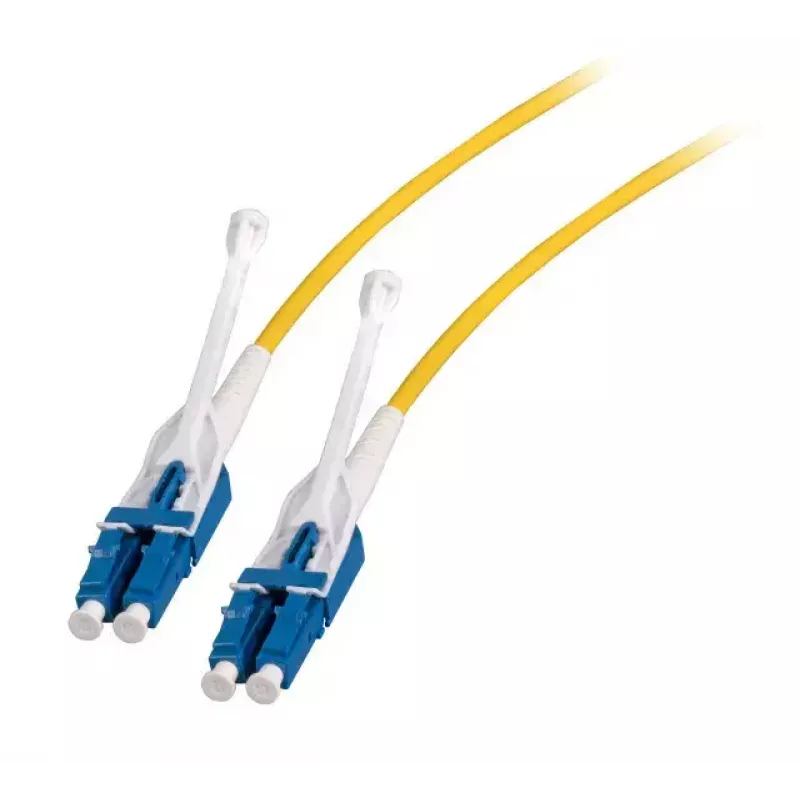

Cable de fibra óptica EFB Elektronik DJP-LCLCOS2-UNI-5 — 5 m, LC a LC, G.657.A1, I-V(ZN) H, dúplex completo, azul/amarillo

The EFB Elektronik DJP-LCLCOS2-UNI-5 is a 5 m full-duplex LC to LC fibre optic jumper designed for InfiniBand and high-density patch panels. It uses bend-insensitive G.657.A1 fibres in an I-V(ZN) H cable construction and features a long unlock latch on the LC uniboot connector to simplify removal in HD patch panels. The jumper is available in OM3, OM4 and G.657.A1 categories and is supplied in standard industry colours for easy identification.

Advantages

The long unlock latch on the LC uniboot connector makes unlocking in high-density patch panels easier and reduces the risk of connector damage during handling. The uniboot design allows polarity or coding changes without replacing connectors, enabling quick adaptation to application requirements. Bend-insensitive G.657.A1 fibre improves routing flexibility and reduces bend loss in confined installations.

Suitable for

• High-density patch panels and switches
• InfiniBand interconnects and data centre links
• Short-range backbone and equipment connections
• Environments requiring bend-insensitive fibre routing

Key specifications

• Brand: EFB Elektronik
• Manufacturer code (MPN): DJP-LCLCOS2-UNI-5
• EAN: 4049759193805
• Cable length: 5 m
• Cable type: I-V(ZN) H
• Fibre type: G.657.A1 (bend-insensitive)
• Connectors: LC — LC, full duplex uniboot with long unlock latch
• Colours: Blue and Yellow (industry identification)

How to use

Route the 5 m jumper between devices or patch-panel ports avoiding sharp bends and compression points. Insert the LC connectors into the corresponding LC ports until the latch clicks. To remove the jumper from HD patch panels, press the long unlock latch and pull the connector straight out. If polarity or coding needs to be changed, adjust the uniboot's duplex orientation according to your patching scheme without replacing connectors.

Recommendations

Ensure minimum bend radii are respected during installation and avoid placing heavy objects on the cable. Verify connector cleanliness before mating; clean LC endfaces with appropriate fibre cleaning tools to maintain optimal signal performance.
