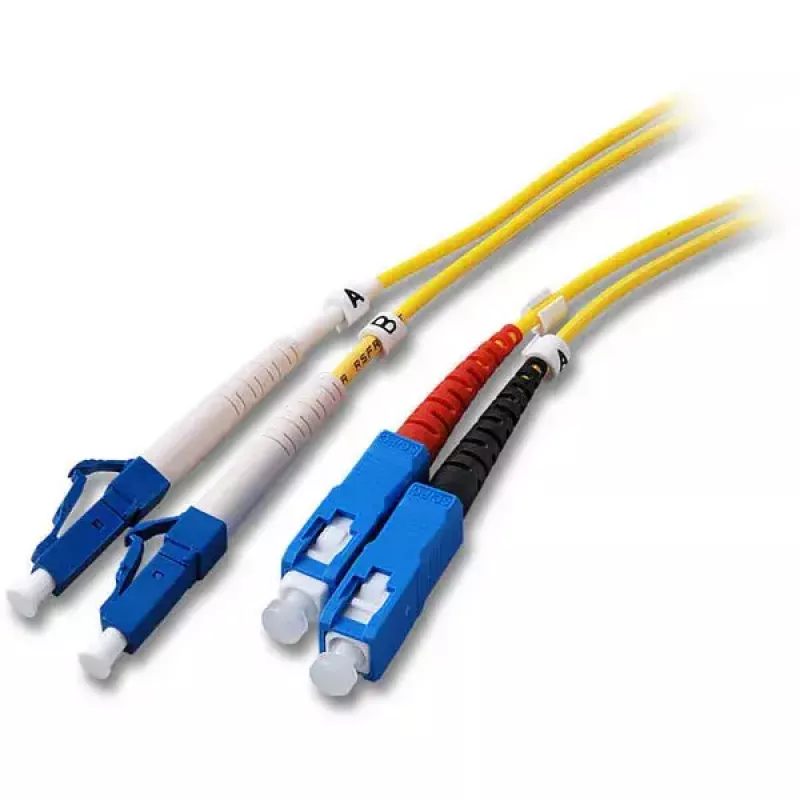

Cable de fibra óptica EFB Elektronik O0360.3 3 m LC SC amarillo

The EFB Elektronik O0360.3 3 m LC SC Yellow is a single-mode OS2 fibre optic patch cable designed for reliable high-speed data links. With LC and SC terminations and a 3 metre length, the cable supports full duplex communication and is suited for point-to-point connections in structured cabling, server rooms and telecom installations. The yellow outer jacket provides standard single-mode color coding for simple identification and cable management.

Advantages

This fibre optic cable delivers stable signal transmission over single-mode glass with a 9 µm core, ensuring low attenuation and consistent performance for long-distance links. The combination of LC and SC connectors provides compatibility with a wide range of networking equipment and panels. The standardized yellow jacket and reliable connector polishing help simplify installation and reduce the risk of connector mismatches.

Suitable for (tasks / use cases)

• Single-mode point-to-point connections between network switches, routers and media converters
• Server room and data centre patching
• Telecommunications and backbone links where OS2 performance is required
• Testing and temporary deployment in structured cabling environments

Key specifications

• Fiber type: Single-mode OS2
• Core diameter: 9 µm
• Length: 3 m
• Connectors: LC to SC (one end LC, other end SC)
• Mode: Full duplex
• Cable color: Yellow (single-mode identification)

How to use

Inspect connector endfaces for contamination and clean with suitable fibre-cleaning tools before mating. Plug the LC connector into the LC port and the SC connector into the SC port until each connector latches into place; avoid excessive bending of the cable by maintaining the manufacturer’s minimum bend radius. For permanent installations, route the cable through cable trays or raceways and secure with appropriate ties or clamps to prevent strain on the connectors.

Recommendations

Use in environments that require single-mode OS2 performance; avoid repeated disconnections where possible to preserve connector integrity, and store spare cables in a dry, dust-free location. For optimal performance, follow cleaning and inspection procedures before every connection and observe bend radius limits during routing and installation.
