Cable de fibra óptica InfiniBand BlueOptics SFP3131BU1MM 1 m LC amarillo

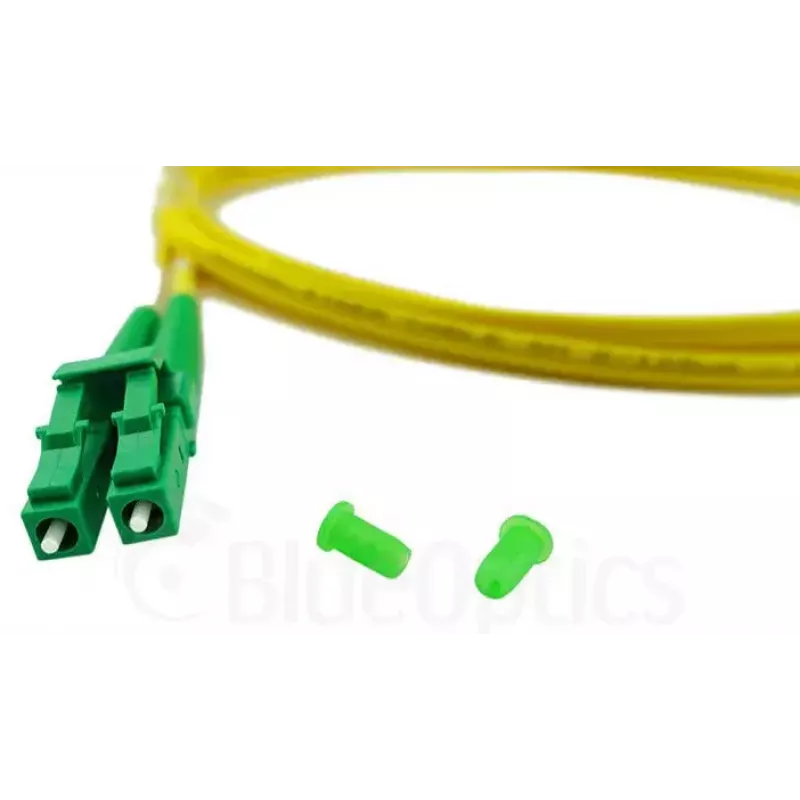

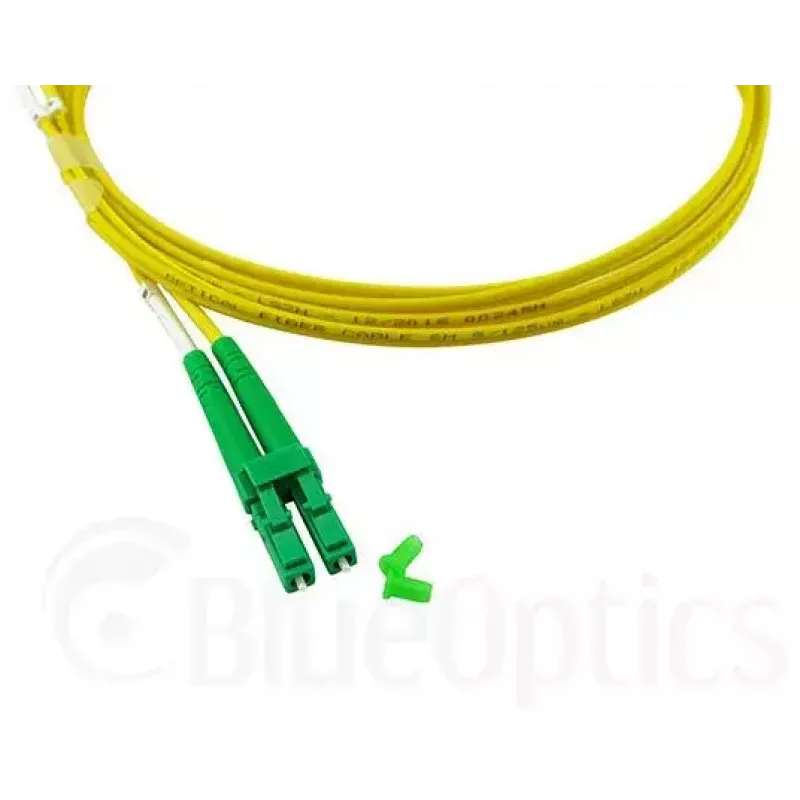

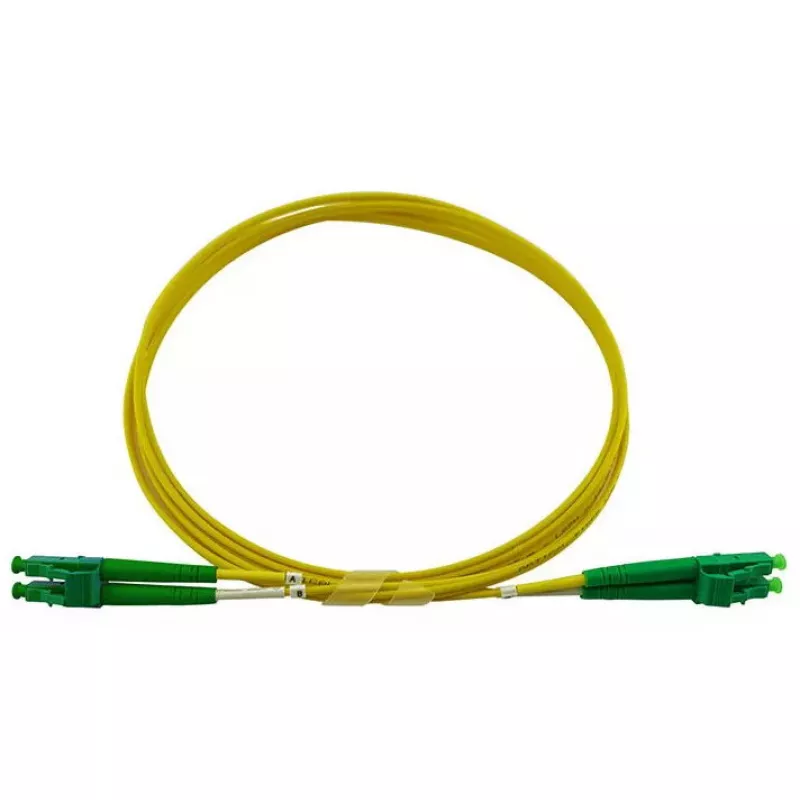

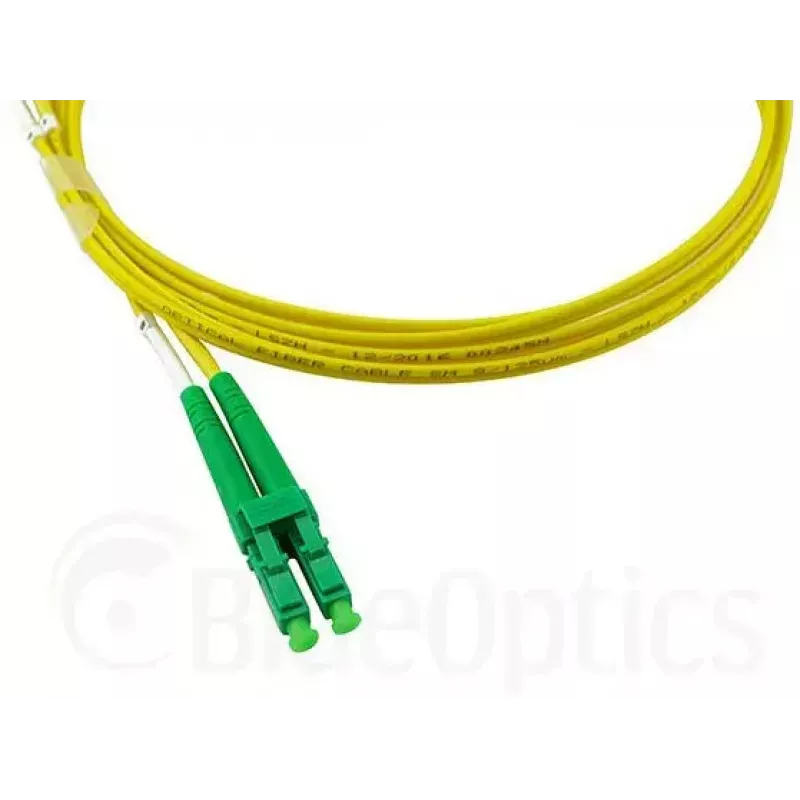

BlueOptics SFP3131BU1MM is a 1 meter duplex single-mode fiber patch cord with LC/APC to LC/APC (8° angled polish) connectors. It uses laser-optimized single-mode fiber G.657.A1 (9/125 µm) in a yellow LSZH jacket and is designed for reliable connections between patch panels, optical transceivers and other fiber equipment supporting 1310 nm / 1550 nm transmission.

Advantages

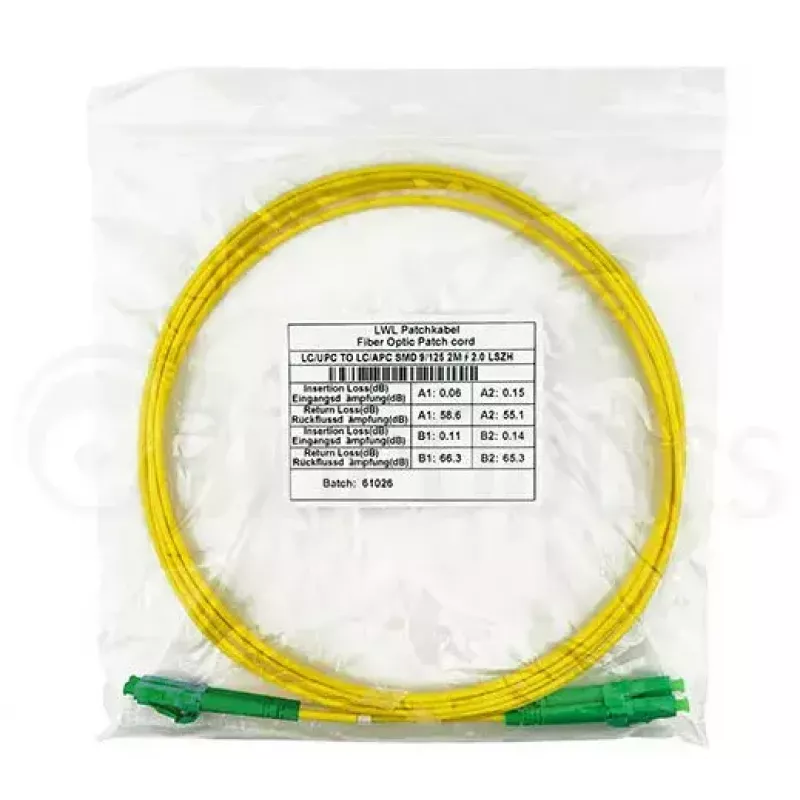

The cable delivers low attenuation (0.4 dB/km), low insertion loss and high return loss. Connectors use zirconia ceramic ferrules from reputable manufacturers and are rated for up to 1500 mating cycles. Each unit is factory-tested with interferometer and OTDR and supplied with a measurement protocol for insertion loss and return loss. The LSZH jacket reduces smoke and avoids halogen release in case of fire.

Suitable for

Key specifications

How to use

Connect each LC/APC connector to the corresponding LC/APC port on your transceivers or patch panel, ensuring correct duplex polarity. Avoid tight bends and maintain the recommended minimum bend radius for G.657.A1 fiber. Secure the cable to cable management hardware to prevent strain on connectors during operation.

Recommendations

Handle the LC/APC connectors by their boot and avoid touching the ferrule surface; clean endfaces before mating. Store and install the cable avoiding sharp bends and high-tension pulls to preserve optical performance and connector lifetime.
