Cable de fibra óptica METZ CONNECT 151P1JOMA20E 2 m LC E-2000 G.657.A2

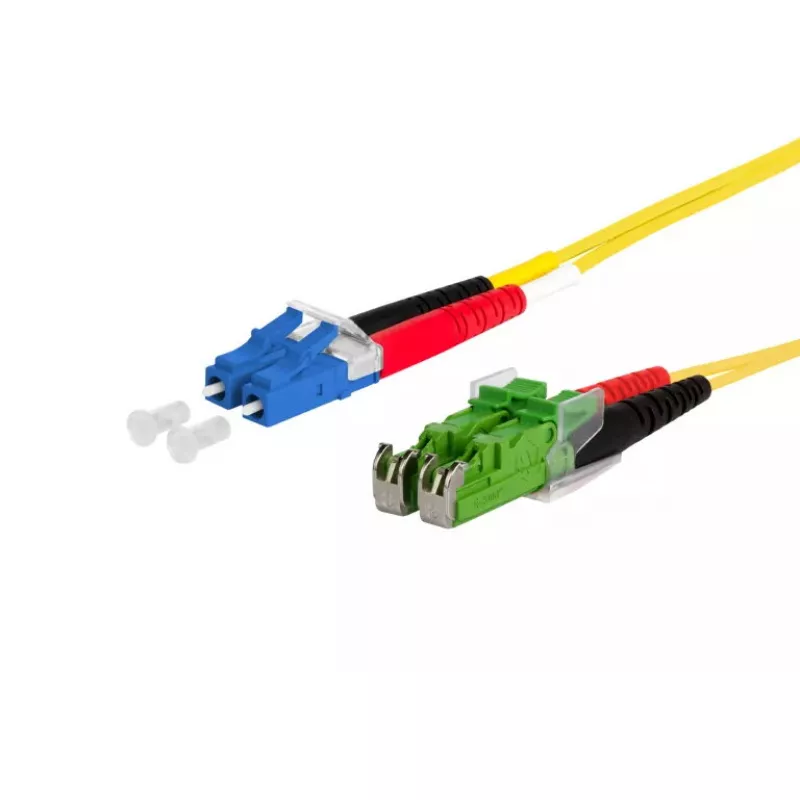

The METZ CONNECT 151P1JOMA20E is a 2 m fibre optic patch cable with an LC connector on one end and an E-2000 (LSH) connector on the other. It uses single-mode G.657.A2 fibre with a 9 µm core diameter, supporting full-duplex transmission for high-speed network links. The compact LC connector and the high-performance E-2000 interface provide low insertion loss and stable optical performance suitable for data centres, telecom racks and structured-cabling installations.

Advantages

This fibre optic cable combines the space-saving LC connector with the robust E-2000 interface, offering low attenuation and reliable connection stability. The use of G.657.A2 single-mode fibre improves bend performance compared with older single-mode types, which reduces sensitivity to tight routing and installation constraints. A 2 m length provides sufficient reach for many point-to-point links without excess slack in cabinet and patch-panel environments.

Suitable for

• Interconnecting network equipment in data centres and server rooms
• Fiber-to-the-desk or patch-panel to active equipment links
• Telecommunications and carrier-grade installations requiring E-2000 connectors
• Environments with limited routing space where improved bend tolerance is needed

Key specifications

• Length: 2 m
• Connector A: LC (single-mode)
• Connector B: E-2000 (LSH, single-mode)
• Fibre type: G.657.A2 single-mode
• Core diameter: 9 µm
• Transmission: full duplex
• Typical application: single-mode optical links for data and telecom

How to use

Inspect connector endfaces before connection and clean if necessary using appropriate fibre cleaning tools. Route the cable following the planned path, avoiding sharp bends and ensuring bend radius guidelines for G.657.A2 fibre are respected. Insert the LC connector and the E-2000 connector into the corresponding adapter ports or transceiver sockets until a secure fit is achieved. Verify link integrity with an optical power meter or appropriate network testing equipment after installation.

Recommendations

Store the cable coiled without kinks and avoid bending below the recommended radius. Use dust caps when connectors are not in use and perform endface cleaning before mating. For critical links, test insertion loss and return loss after installation to confirm compliance with system requirements.
