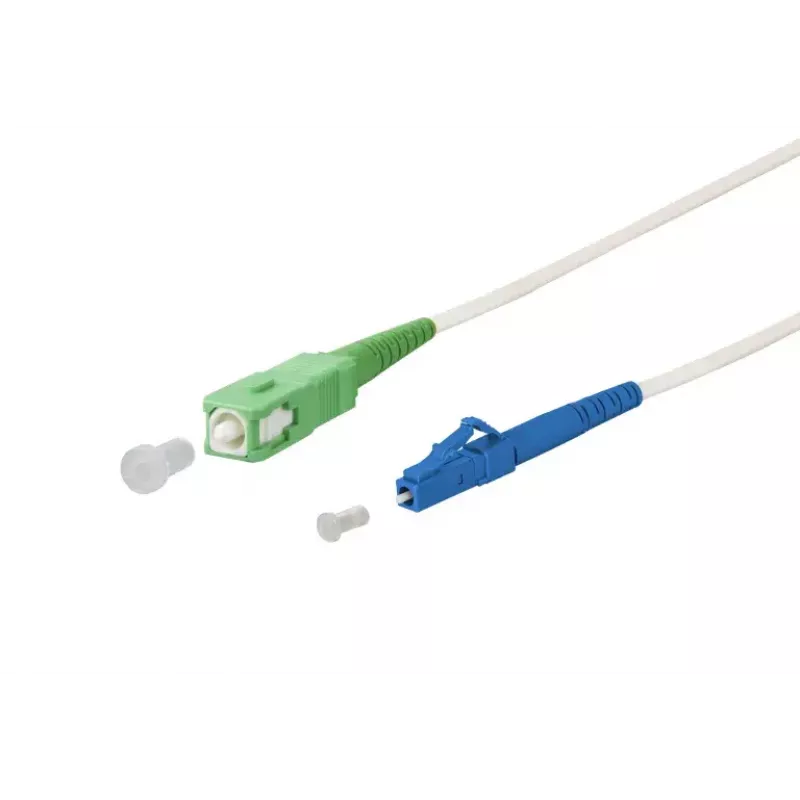

Cable de fibra óptica METZ CONNECT 151P7EAJO30E SC LC I-V(ZN) H 3 m blanco

The METZ CONNECT 151P7EAJO30E SC LC I-V(ZN) H 3 m White is a 3‑metre single‑mode fibre optic patch cable with SC and LC connectors and a 9 µm core diameter designed to support G.657.A2 fibre. This cable is intended for high‑speed data links in structured cabling and point‑to‑point connections where low attenuation and reliable optical performance are required. The white jacket and compact connector combination make it suitable for visible installations and rack‑mount environments.

Advantages

The cable uses G.657.A2 fibre which provides improved bend performance while maintaining single‑mode transmission characteristics, reducing the risk of signal loss in confined routing spaces. The SC connector on one end and LC connector on the other allow compatibility with a wide range of optical equipment and patch panels. At 3 metres in length, the cable is long enough for short interconnects in equipment racks and server rooms while keeping excess cable management to a minimum. The I‑V(ZN) H jacket construction offers mechanical protection and a neutral white color for discreet integration into network installations.

Suitable for

• Interconnecting optical transceivers in data centres and server racks
• Patch panel to network equipment links in structured cabling
• Short‑reach backbone connections in telecommunications closets
• Installations requiring improved bend performance and minimal signal attenuation

Key specifications

• Cable length: 3 m
• Cable type: I‑V(ZN) H
• Fibre type: G.657.A2 single‑mode
• Core diameter: 9 µm
• Connector 1: SC
• Connector 2: LC
• Colour: White

How to use

Connect the SC connector to an SC port and the LC connector to an LC port on the intended optical devices or patch panels, ensuring proper alignment and a clean connector endface to minimise insertion loss. Route the cable with gentle bends, avoiding tight radii beyond the fibre’s bend tolerance, and secure the jacket using cable management accessories to prevent strain on the connector interfaces. Inspect connector endfaces before installation and clean with appropriate fibre‑optic cleaning tools if contamination is present.

Recommendations

Store the cable coiled without sharp bends and avoid crushing or prolonged compression. For best optical performance, keep connectors capped until ready to connect, use dust‑free handling, and follow standard fibre‑optic safety and handling procedures.
