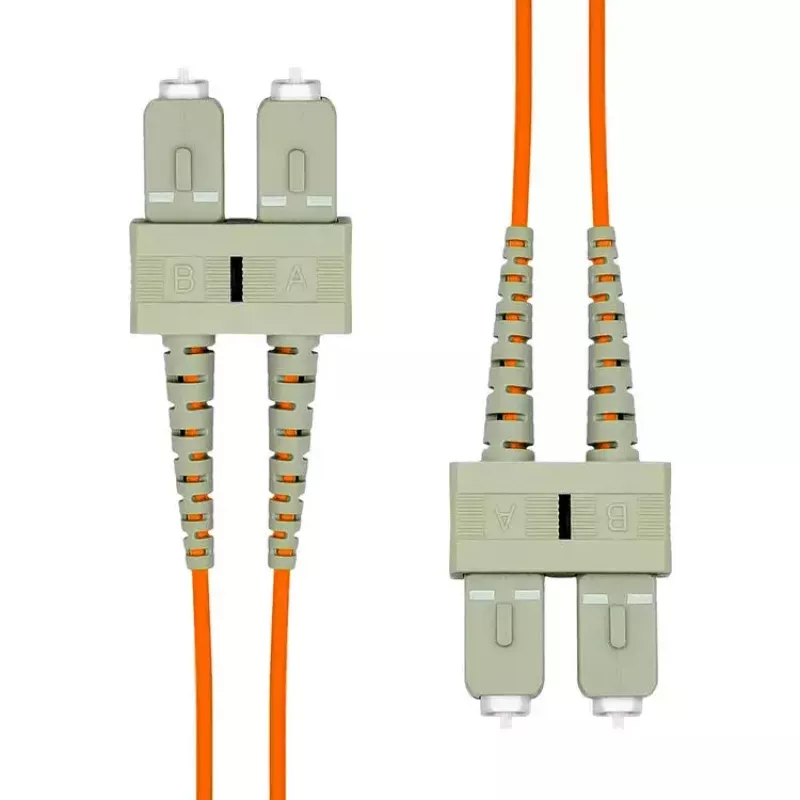

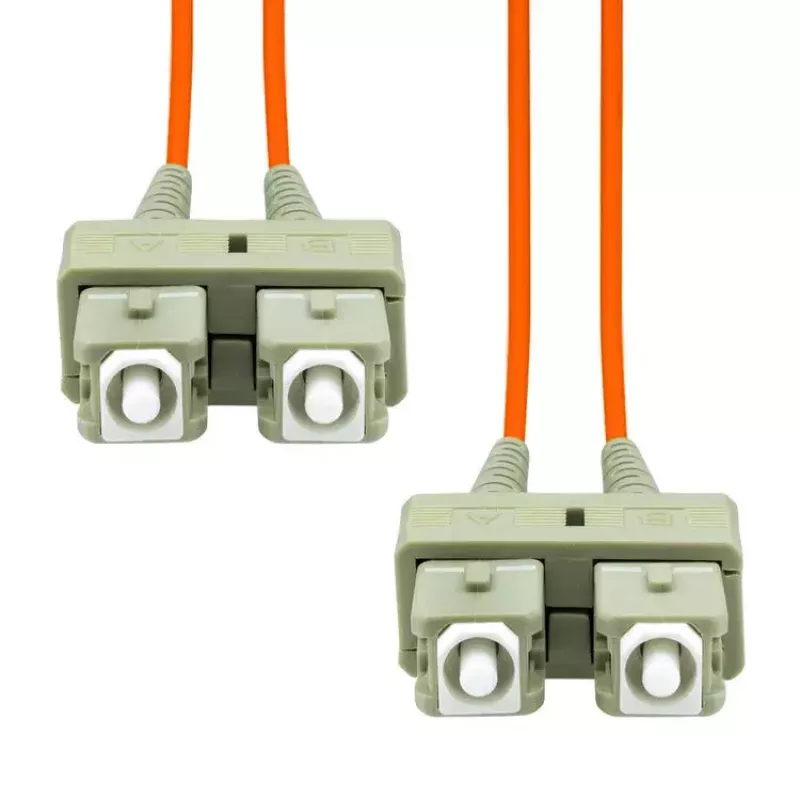

Cable de fibra óptica ProXtend SC-SC UPC OM1 dúplex MM 5 m

The ProXtend SC-SC UPC OM1 Duplex MM Fiber Cable is a 5 m duplex multimode patch cable with a 62.5 µm glass core and SC male connectors on both ends. Designed for local area networks, the cable supports full-duplex singlemode and multimode communication and is jacketed in LSZH material for improved safety. It operates reliably across a temperature range from -20 °C to 70 °C and is intended for high-speed, high-bandwidth links over moderate distances.

Advantages

This ProXtend fiber cable combines a standard OM1 62.5 µm core with SC-SC UPC terminations to provide stable full-duplex connectivity. The LSZH jacket reduces hazardous smoke and corrosive gas emissions in case of fire, and the cable’s rated temperature range ensures consistent performance in a variety of indoor and controlled-environment deployments. The pre-terminated SC-SC connectors simplify installation and reduce the need for field splicing.

Suitable for

• Patch panels and fiber distribution frames in data centres and server rooms
• Short to medium-distance backbone links within buildings
• LAN and campus network segments using multimode OM1 cabling
• Connections between network switches, routers, and transceivers with SC ports

Key specifications

• Length: 5 m
• Fiber type: Multimode (OM1)
• Core diameter: 62.5 µm
• Connector type: SC — SC, UPC polish
• Mode: Duplex, full-duplex capable
• Jacket: LSZH (Low Smoke Zero Halogen)
• Operating temperature: -20 °C to 70 °C
• Brand: ProXtend, MPN: FO-SCSCOM1D-005, EAN: 5714590107609

How to use

Route the cable between devices with SC ports, avoiding tight bends and mechanical stress on the fiber. Remove protective dust caps from the SC connectors before insertion, then firmly insert each SC connector into the corresponding SC adapter or port until it clicks. Use appropriate cable management and strain relief to secure the cable and maintain minimum bend radius for multimode fiber during installation.

Recommendations

For reliable multimode performance, use this OM1 62.5 µm cable for short to medium-length links and pair it with compatible OM1-compliant transceivers and patch panels. Store connectors with dust caps when not connected and follow standard fiber handling and cleaning procedures to avoid contamination and signal loss.
