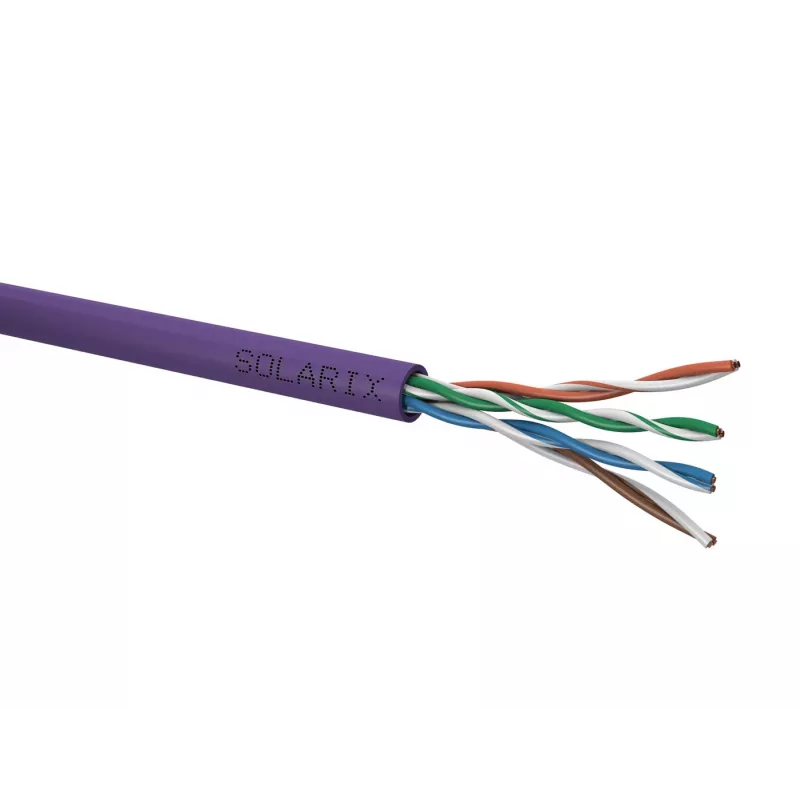

Solarix SXKD-5E-UTP-LSOH cable de instalación Cat.5e UTP LSOH, caja de 305 m

The Solarix SXKD-5E-UTP-LSOH is a Cat.5e UTP installation cable supplied in a 305 m box. It features a LSOH jacket and is tested up to 350 MHz, supporting Ethernet protocols including 2.5GBASE-T and 5GBASE-T.

Key features

• Category 5E unshielded (UTP) installation cable
• LSOH jacket with fire reaction class Dca-s1,d2,a1
• Tested up to 350 MHz bandwidth
• Supports 2.5GBASE-T and 5GBASE-T and lower protocols
• Copper wire conductors with 99.97% copper purity
• Meter marking from 0 to 305 m
• Supplied in a three-layer polished cardboard box

Specifications

• Brand: Solarix
• Model: SXKD-5E-UTP-LSOH
• Category: CAT5E
• Shielding: no
• Conductor type and size: copper wire 0.50 mm ± 0.005 mm
• Insulation and conductor diameter with insulation: HDPE 0.88 mm
• Fire reaction class; jacket type: Dca-s1,d2,a1; LSOH
• Jacket colour: purple RAL 4005
• Cable diameter: 5.0 mm
• Weight: 30.2 kg/km
• NVP: 68 %
• Propagation delay: 535 ns/100 m
• Delay skew: less than 45 ns/100 m
• Storage temperature: -20 °C to 60 °C
• Operating temperature: -20 °C to 60 °C
• Installation temperature: 0 °C to 50 °C
• Packaging: 305 m, three-layer cardboard box
• Packaging dimensions (height x depth x width): 360 mm x 360 mm x 205 mm
• Number of packages per pallet: 45 boxes
