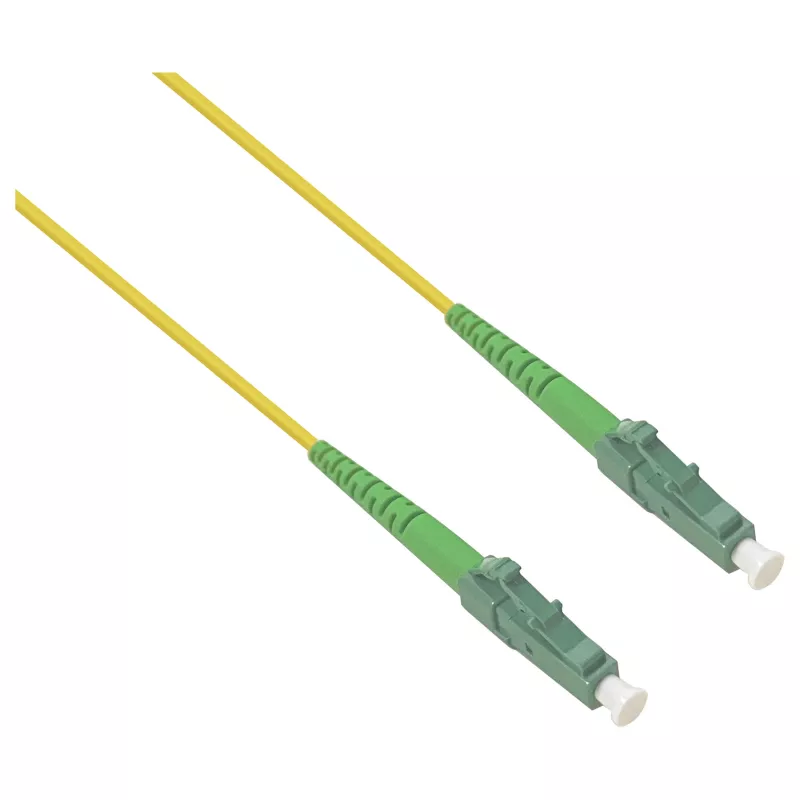

Cable de parcheo de fibra óptica HELOS OS2 simplex LSZH 2,0 mm LC/APC-LC/APC amarillo 20 m

The HELOS LWL OS2 Patchkabel Simplex LSZH 2.0mm LC/APC-LC/APC Yellow 20m is a high-performance single-mode fiber optic patch cable designed for reliable data transmission in demanding network environments. With OS2 standard and APC polish, it ensures low insertion loss and high return loss, making it ideal for long-distance and high-bandwidth applications.

Advantages

This patch cable offers exceptional signal integrity with typical insertion loss <0.2 dB and return loss >60 dB. The LSZH jacket provides safety in enclosed spaces by emitting low smoke and zero halogen in case of fire. The 2.0mm diameter ensures flexibility while maintaining durability.

Suitable for

• Data centers and server rooms
• Local Area Networks (LAN) and Storage Area Networks (SAN)
• Fiber-to-the-x (FTTx) deployments
• Telecommunications infrastructure

Key specifications

• Cable Type: Fiber Optic Patch Cable, Simplex
• Fiber Mode: Single-mode OS2
• Connectors: LC/APC to LC/APC
• Length: 20 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Diameter: 2.0 mm
• Color: Yellow
• Insertion Loss: <0.2 dB typical
• Return Loss: >60 dB typical
• Attenuation: <0.35 dB/km @1310nm, <0.25 dB/km @1550nm
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard LC/APC interfaces. Suitable for indoor use only.
