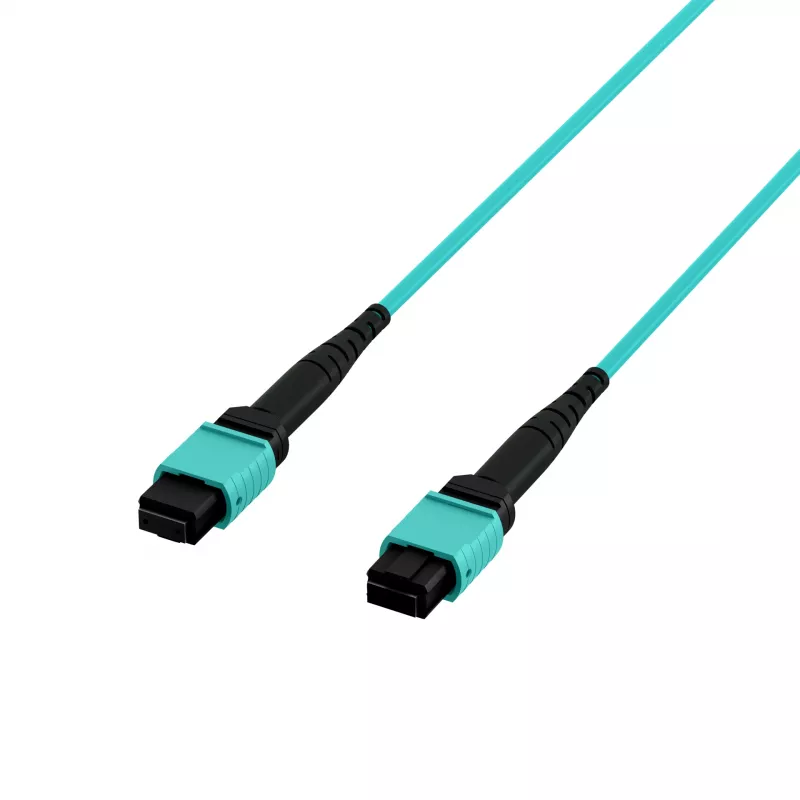

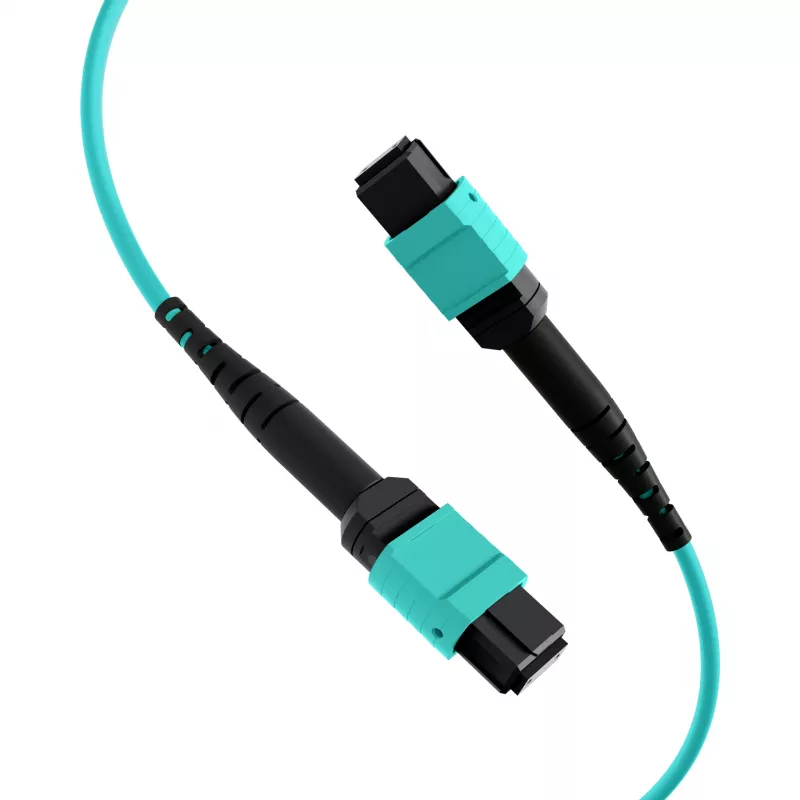

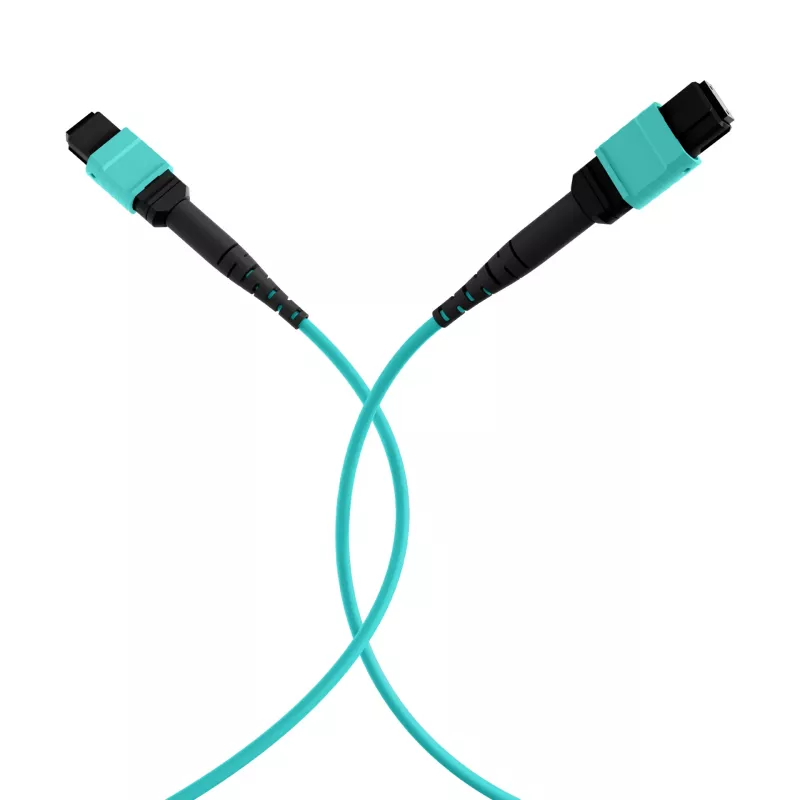

Cable de parcheo EFB Elektronik MPO-PLUS hembra a MPO-PLUS hembra, OM3 multimodo, 12 fibras, Type-B, LSZH aqua, 5 m MPOF12MPOFOM3-5

Data center technicians and network engineers rely on this EFB Elektronik MPO-PLUS patch cable for high-density fiber optic interconnects in SAN and LAN environments. It connects two MPO-PLUS female ports with a 12-fiber OM3 multimode assembly, using a Type B polarity for cross-over linking between transceivers.

Key specifications

• Connector A: MPO-PLUS Female
• Connector B: MPO-PLUS Female
• Fiber type: OM3 Multimode, 50/125 µm
• Fiber count: 12
• Polarity: Type B (Cross-over)
• Cable length: 5 m
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket colour: Aqua
• Bandwidth: 1500 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Insertion loss: ≤ 0.35 dB per connector
• Return loss: ≥ 20 dB
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Compliance: RoHS, REACH

Why choose it

The MPO-PLUS connector ensures precise alignment and low insertion loss, supporting high-speed data rates up to 100 Gbps for 40GBASE-SR4 and 100GBASE-SR4 applications. The LSZH jacket reduces toxic smoke in case of fire, making it suitable for enclosed data center spaces.

Ideal use cases

• High-density data center interconnects
• Parallel optics for 40G and 100G Ethernet
• Storage area network (SAN) backbone links
• Telecom central office cross-connects

Good to know

The Type B polarity crosses the fiber positions between ends, enabling direct connection between two transceivers without additional polarity management. The aqua jacket is standard for OM3 multimode fiber, allowing quick identification in dense cabling racks.
