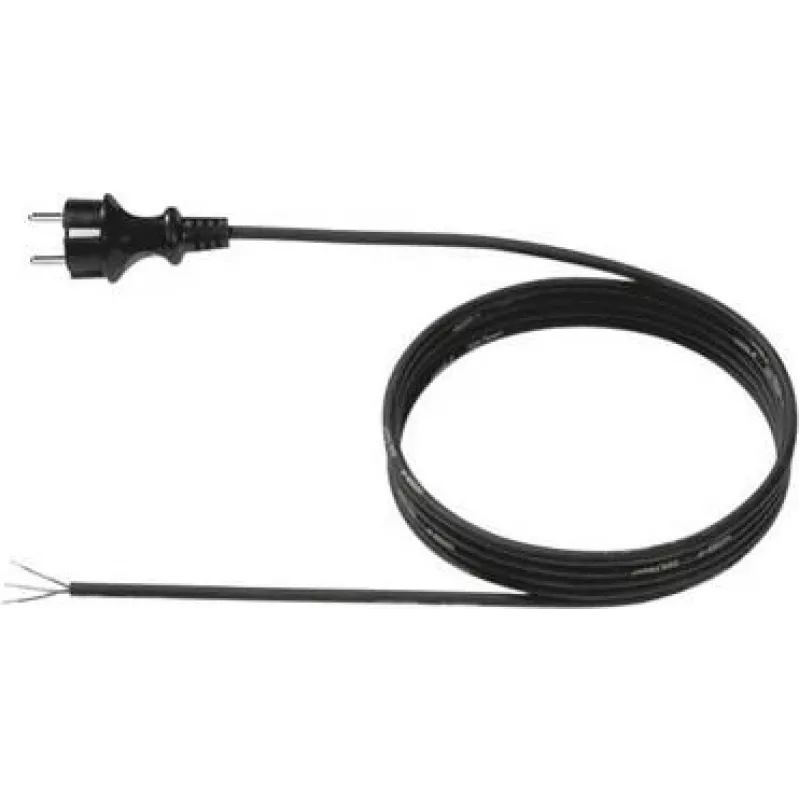

Cable de red Bachmann 320.185 negro 3 m

The Bachmann 320.185 power cable is a 3 m black mains lead designed for use with a maximum input voltage of 250 V and a rated current of 16 A. One end features a moulded central plug with a dual earthing contact system and splash-water protection, while the other end is supplied stripped to 30 mm with end sleeves fitted. The cable is intended to provide a reliable connection for electrical equipment where a fixed or semi-fixed wiring termination is required.

Advantages

This power cable offers a standard 3 m length for flexible placement, a robust moulded plug with dual earthing contacts for safe grounding, and splash-water protection at the plug. The stripped 30 mm other end with end sleeves simplifies installation into terminal blocks or housings and reduces the need for additional preparation.

Suitable for

• Connecting electrical appliances or equipment to mains supplies where a 3 m lead is appropriate
• Installations requiring a grounded connection with a dual earthing contact plug
• Situations where a stripped cable end with end sleeves is needed for direct wiring into devices or distribution blocks

Key specifications

• Brand: Bachmann
• Model / MPN: 320.185
• EAN: 4016514002733
• Length: 3 m
• Colour: Black
• Maximum input voltage: 250 V
• Rated current: 16 A
• End 1: moulded central plug with dual earthing contact system, splash-water protected
• End 2: 30 mm stripped with end sleeves

How to use

Connect the moulded plug end to a compatible mains socket rated for 250 V/16 A. Terminate the stripped 30 mm end into the target device or terminal block, ensuring the end sleeves are correctly positioned and each conductor is secured under the appropriate terminal screw. Verify proper earthing connection and check that the installation complies with local electrical codes before applying power.

Recommendations

Use this cable only within its rated voltage and current limits (250 V, 16 A) and replace it if the moulded plug, cable sheath or end sleeves show signs of damage. For fixed installations consult a qualified electrician and ensure all connections are tightened and insulated according to applicable safety standards.
