Cable de red DIGITUS CAT 6 U-UTP fino, 0,3 m, gris, pack de 10

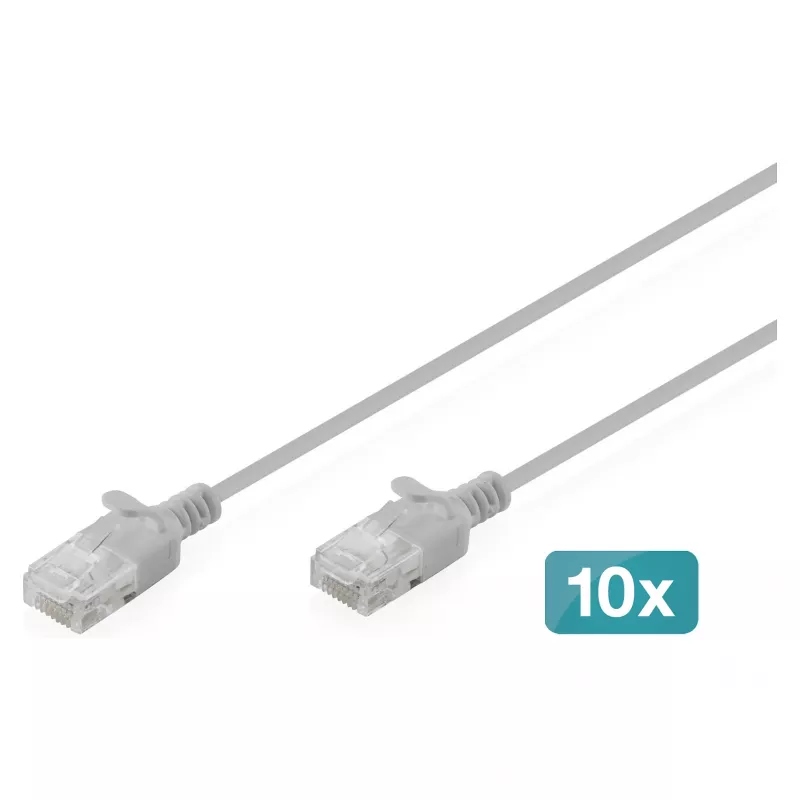

DIGITUS CAT 6 U-UTP Slim patch cable pack contains ten 0.3 m gray unshielded twisted-pair cables designed for short, high-density Ethernet interconnections. These CAT6 U-UTP slim patch cables support Gigabit Ethernet at frequencies up to 250 MHz and are intended for use with patch panels, switches and wall sockets in offices, data centers and home networks where compact, flexible cabling is required.

Advantages

The slim 2.7 mm outer diameter and flexible LSZH jacket enable neat routing in confined spaces and high-density panels while maintaining CAT 6 performance. Stranded AWG 32/7 bare copper conductors and U-UTP construction provide flexibility and durability for repeated connections. Molded strain-relief boots and locking lever protection reduce the risk of connector damage during installation and use. The cables comply with ISO/IEC 11801 and EN 50173 CAT 6 standards and are PoE/PoE+ capable thanks to pure copper conductors.

Suitable for

• Patch panels and switch-to-switch connections in high-density racks
• Short connections between wall sockets and desktop devices in offices
• Home network patching where short, unobtrusive cables are needed
• PoE and PoE+ deployments for IP phones, access points and cameras

Key specifications

• Cable type: CAT 6 U-UTP slim patch cable
• Length: 0.3 m (per cable)
• Quantity: pack of 10
• Transmission frequency: up to 250 MHz
• Data rate: up to 1 Gbit/s (1000BASE-T)

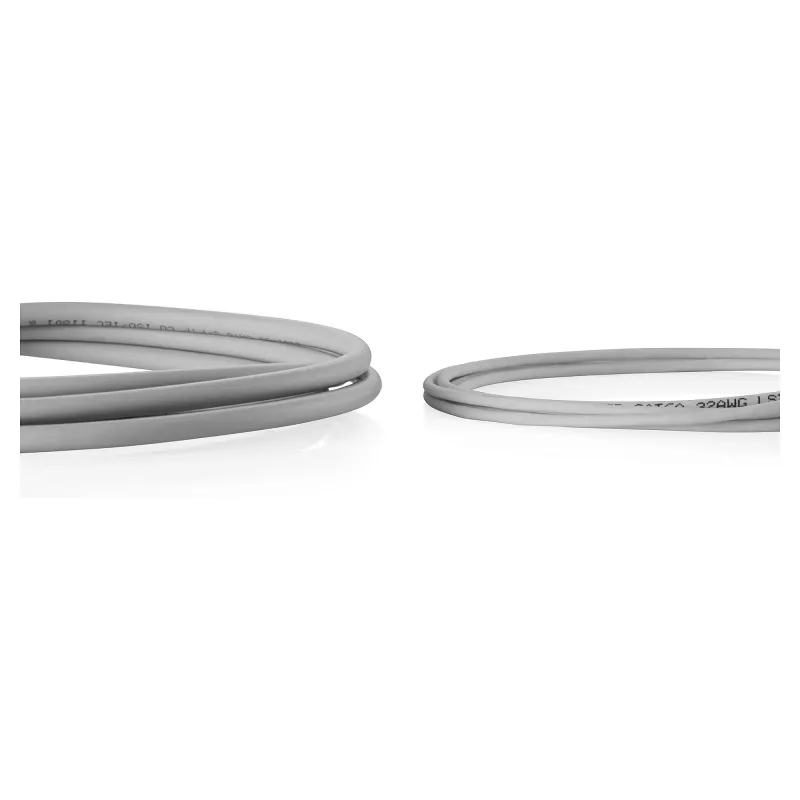

• Outer diameter: 2.7 mm ± 0.15 mm
• Conductor: stranded bare copper AWG 32/7
• Insulation material: HD-PE (high-density polyethylene)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Bending radius: 15 × outer diameter

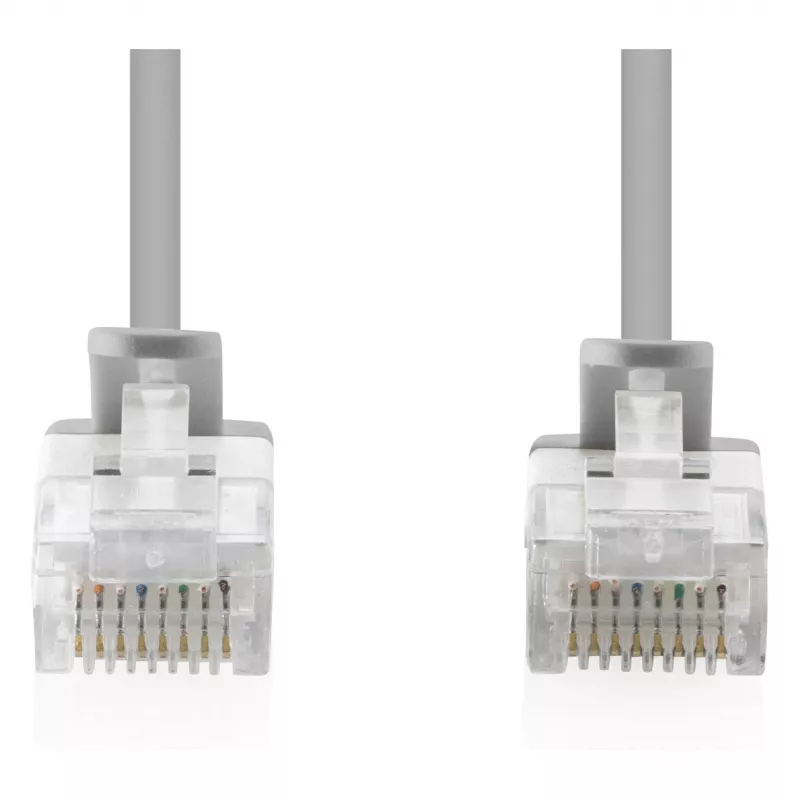

• Connector: RJ45 plug with molded strain relief and lever protection
• Operating temperature range: -20 °C to +60 °C
• Flame retardancy and smoke: IEC 60332-1; IEC 61034
• Durability: up to 750 mating cycles

How to use

Connect one RJ45 plug to the network device (switch, patch panel or wall socket) and the other RJ45 plug to the target port. Ensure the locking lever clicks into place to secure the connection and avoid sharp bends near the connector; respect the specified bending radius when routing the slim cable through panels or conduits. For PoE applications, confirm that the power budget of the switch or injector matches the connected device requirements.

Recommendations

Use these slim CAT6 U-UTP cables for short intra-rack and desk-level connections where space is limited. Avoid running slim patch cables alongside high-voltage power lines to minimize potential interference, and replace cables that show visible damage to insulation or connectors. Store unused cables in their original packaging to prevent tangling and maintain the molded boot shape.
