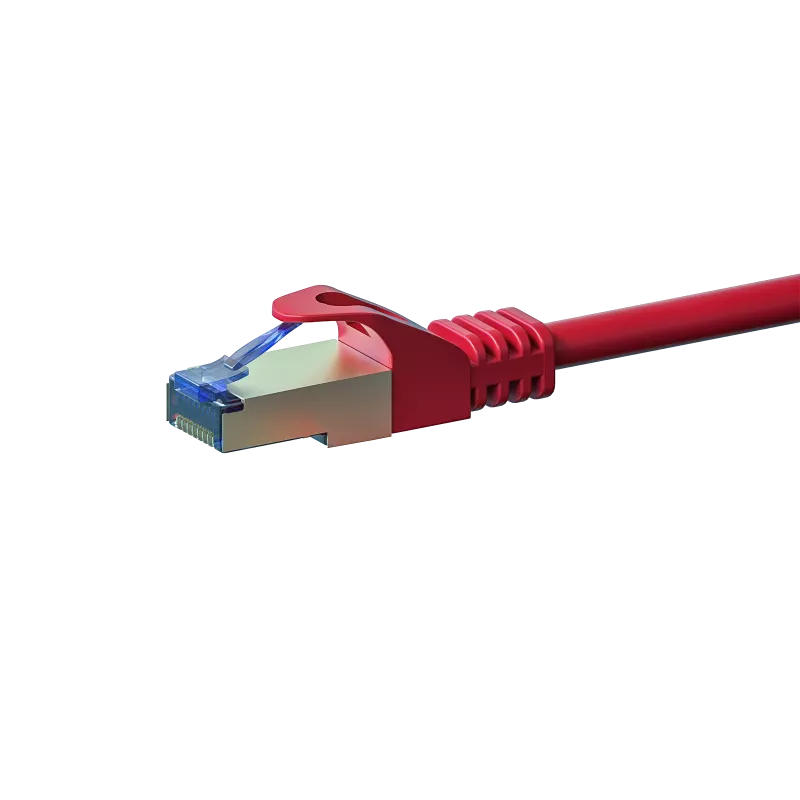

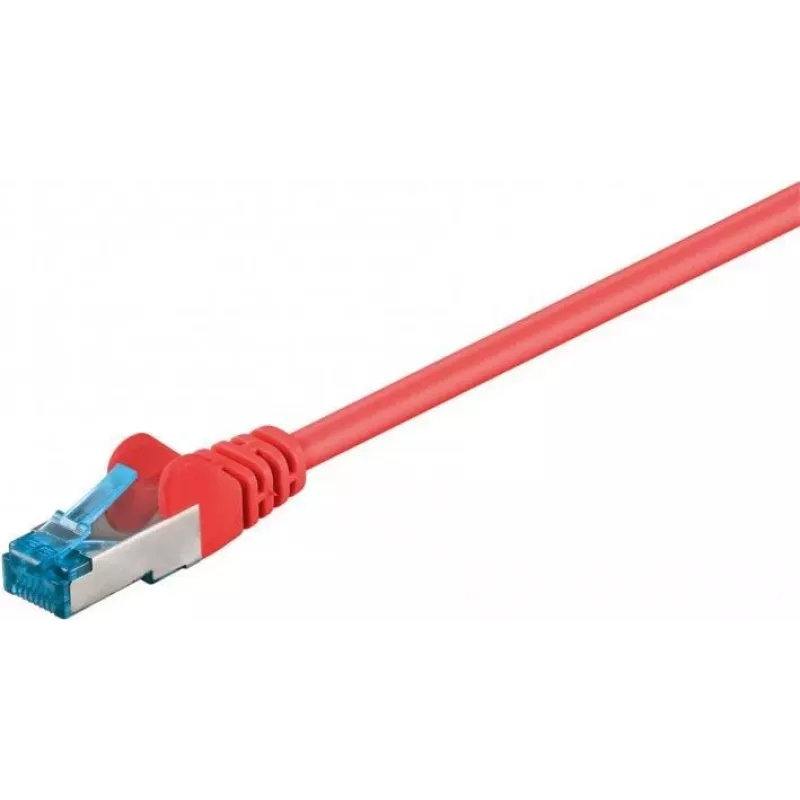

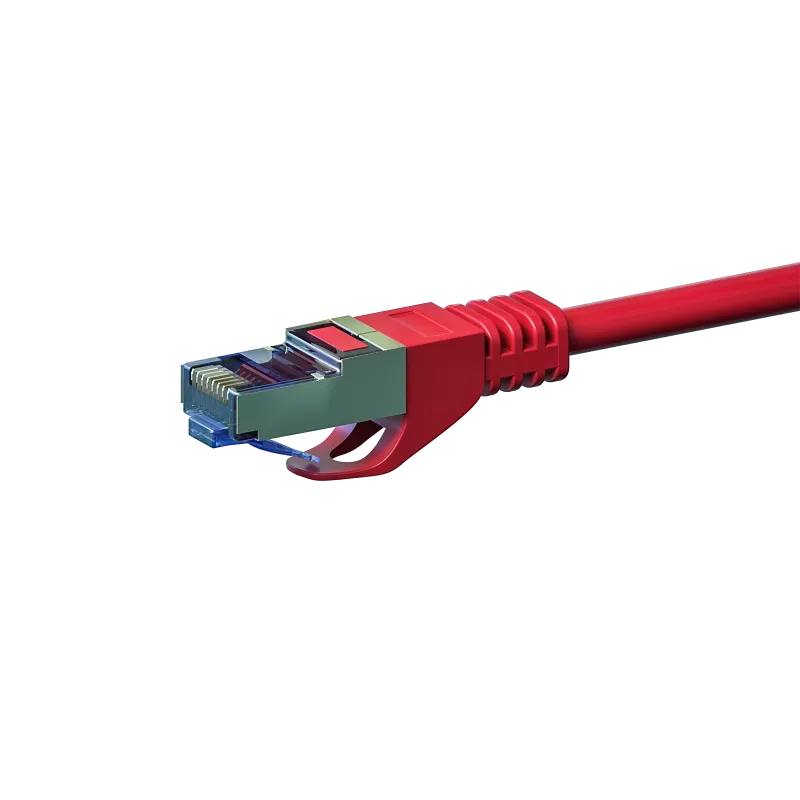

Cable de red DSIT CAT 6a S/FTP LSOH 3 m rojo

High-speed data transmission demands a cable that maintains signal integrity over distance and under interference. The DSIT CAT 6a S/FTP LSOH Network Cable delivers reliable 10 Gigabit Ethernet performance in a 3-meter length, perfect for connecting servers, switches, and workstations in demanding environments. Its S/FTP shielding—each pair individually foiled plus an overall braid—blocks alien crosstalk and EMI, while the LSOH jacket ensures low smoke and zero halogen emission for enhanced safety in offices, data centers, and public buildings.

Who is it for

Network administrators, IT professionals, and system integrators who need a robust, future-proof patch cable for high-density installations. Ideal for anyone upgrading to 10GBASE-T or seeking a reliable connection for PoE devices, video streaming, or data-intensive applications where safety and performance are non-negotiable.

Main features

• CAT 6a performance: supports up to 10 Gbps and 500 MHz bandwidth
• S/FTP shielding: PIMF (pairs in metal foil) plus overall braid for superior noise immunity
• LSOH jacket: low smoke, zero halogen—safe for enclosed spaces
• Gold-plated RJ45 connectors for corrosion resistance and consistent connectivity
• Stranded copper conductors (26 AWG) for flexibility and durability
• Backward compatible with Cat 6, Cat 5e, and Cat 5 networks
• 3-meter length: ideal for patch panels and equipment racks

Specifications

• Cable standard: CAT 6a
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Length: 3 m
• Color: Red
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Connector type: RJ45 male to RJ45 male
• Conductor material: Copper, stranded
• Conductor gauge: 26 AWG
• Connector plating: Gold
• Impedance: 100 Ohm
• Outer diameter: 6.2 mm
• Operating temperature: -20°C to 60°C
• Certifications: RoHS, CE

Tips

Pair this cable with CAT 6a rated patch panels and keystone jacks to maintain full 10G performance. For cable management, use red-colored cables to easily identify critical links or separate network segments. Avoid sharp bends; maintain a minimum bend radius of 4 times the cable diameter to preserve signal quality.
