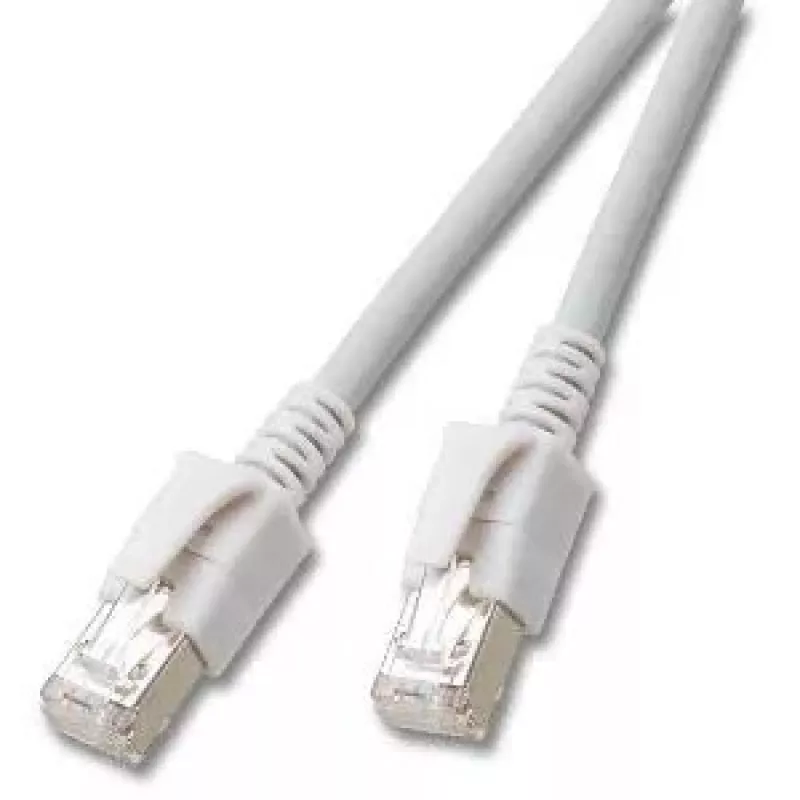

Cable de red EFB Elektronik 10m Cat6a RJ-45 S/FTP gris

The EFB Elektronik 10m Cat6a RJ-45 S/FTP Grey is a 10-metre networking cable designed for high-speed Ethernet connections up to 10 Gbit/s. The cable uses S/FTP (shielded foil twisted pair) construction with PiMF (pairs in metal foil) and AWG27/7 conductors, and comes with shielded, illuminated IEC 60603-7 compliant RJ45 plugs to allow easy tracing of the cable run. The cable has a diameter of approximately 5.7 mm and a grey jacket.

Advantages

The cable provides Cat.6 Class EA performance with S/FTP shielding for reduced electromagnetic interference and stable data transmission. Illuminated RJ45 plugs facilitate locating and retracing cable routes in complex installations. The LSZH jacket is flame retardant and meets IEC60332-3, IEC60754-2 (halogen-free) and IEC61034 (low smoke) standards for improved safety in confined spaces. A mounted strain relief with latch protection increases connector durability during installation.

Suitable for

• High-speed Ethernet networks up to 10 Gbit/s (10GBASE-T)
• Server rooms, data centers and office LAN installations
• Structured cabling where traceability of runs is required
• Environments requiring low-smoke, halogen-free cabling

Key specifications

• Cable length: 10 m
• Category: Cat6a / Class EA
• Shielding: S/FTP (PiMF)
• Conductor: 4 x 2 x AWG27/7
• Connectors: 2 × RJ45, shielded, IEC 60603-7, illuminated
• Diameter: Ø ≈ 5.7 mm
• Jacket: LSZH; flame retardant IEC60332-3, halogen-free IEC60754-2, low smoke IEC61034
• Brand / MPN / EAN: EFB Elektronik / DCK1001GR.10 / 4049759059378

How to use

Connect each RJ45 plug to the corresponding Ethernet ports on your devices (switch, router, network card). Ensure that connectors are fully inserted until the latch engages; the mounted strain relief protects the plug during handling. Use the illuminated plugs to trace the cable path in patch panels or cable trays; power the illumination if required by your setup (follow equipment instructions). For best performance, avoid sharp bends and maintain recommended separation from strong electrical sources.

Recommendations

For reliable 10 Gbit/s performance, use this Cat6a S/FTP cable in short to medium link lengths within its specification limits, keep bends gentle (minimum bend radius ≈ 4× cable diameter), and install in accordance with local building and safety codes.
