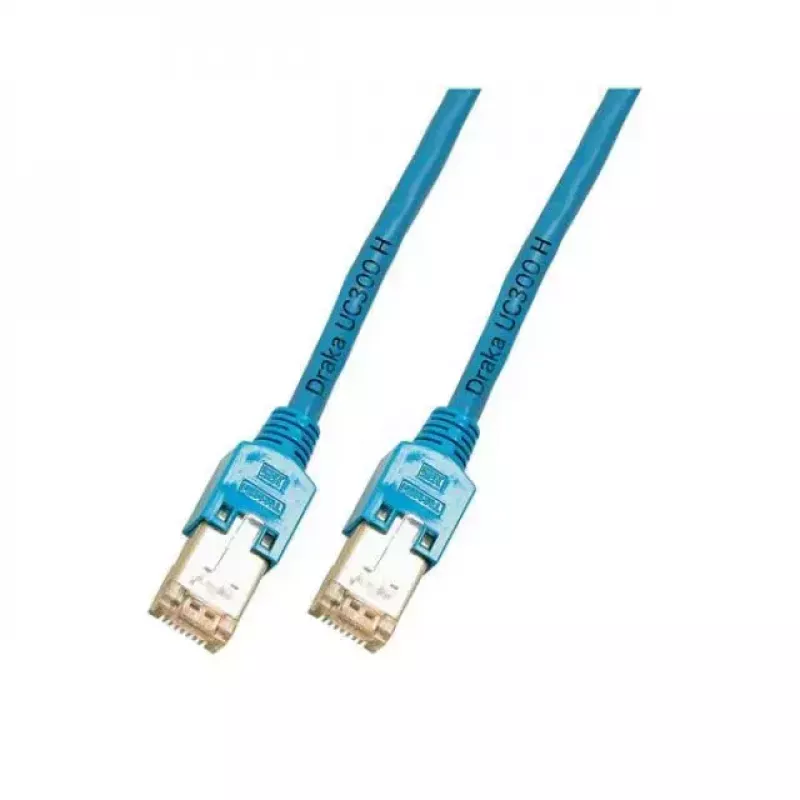

Cable de red EFB Elektronik Cat.5e RJ-45 F/UTP 1 m azul

The EFB Elektronik Cat.5e RJ-45 F/UTP networking cable, 1 m in length and blue in colour, provides a compact solution for wired Ethernet connections up to Gigabit speeds. Constructed with F/UTP (foil-shielded) 4 x 2 AWG26/7 conductors and terminated with two shielded Hirose TM11 RJ45 plugs (IEC 60603-7-3), the cable follows TIA/EIA 568B wiring and meets flame retardant and low-halogen standards for safer installations.

Advantages

This Cat.5e F/UTP cable offers reliable data transfer for 10/100/1000Base-T(X) networks while reducing electromagnetic interference thanks to its foil shielding. Shielded Hirose TM11 RJ45 plugs provide secure, grounded terminations. The cable’s LSZH (low smoke zero halogen) outer sheath and compliance with IEC 60332-1, IEC 60754-2 and IEC 61034 standards enhance safety in confined spaces. A mounted strain relief boot without latch protection helps protect the connector and cable entry.

Suitable for

• Home and small office Ethernet connections
• Patch panels and network switches supporting Gigabit Ethernet
• Short-run horizontal cabling between devices (1 m length)

Key specifications

• Cable type: Cat.5e F/UTP
• Length: 1 m
• Connectors: 2 × Hirose TM11 RJ45 shielded (IEC 60603-7-3)
• Coding: TIA/EIA 568B
• Conductor: 4 × 2 × AWG26/7
• Diameter: Ø 5.4 mm
• Standards: 10/100/1000Base-T(X)
• Sheath: LSZH (halogen-free, low smoke)
• Safety: IEC 60332-1, IEC 60754-2, IEC 61034

How to use

Connect each RJ45 plug to the corresponding Ethernet port on your devices, ensuring the cable is routed without sharp bends and strain. The cable is wired to TIA/EIA 568B; verify device ports or patch panel wiring matches this standard to ensure proper connectivity. Use the mounted strain relief boot to guide and protect the cable at the connector; note that the boot does not include latch protection.

Recommendations

For optimal performance, avoid running the cable in parallel with high-voltage power lines and keep connection lengths within the specified 1 m. Use shielded ports or chassis grounding when integrating into a shielded network to maintain effective EMI protection.
