Cable de red EFB Elektronik Cat5e RJ-45 gris 25 m SF/UTP

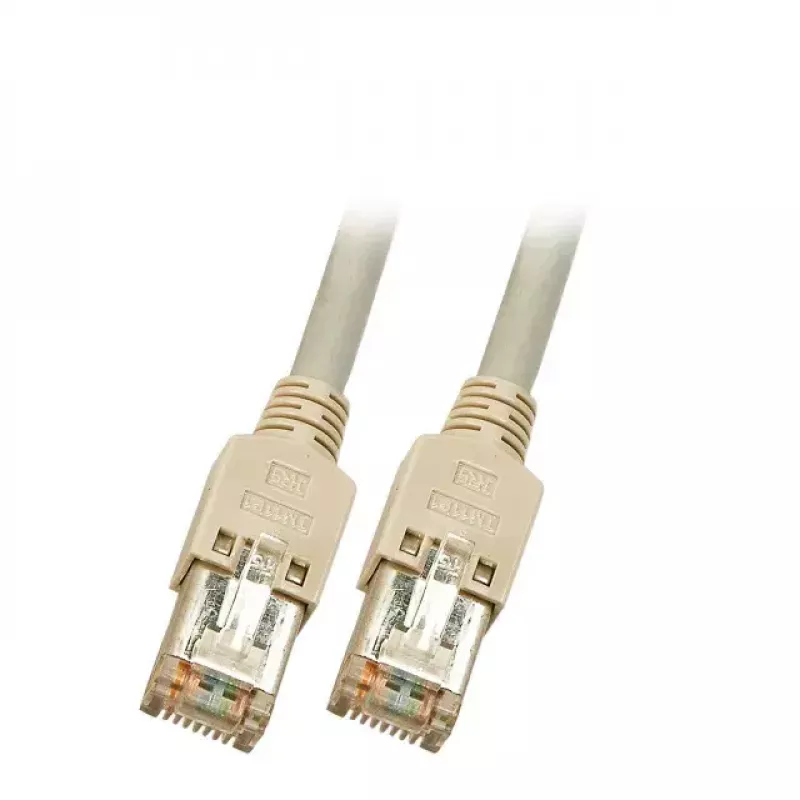

The EFB Elektronik Cat5e SF/UTP RJ-45 networking cable, 25 m long, provides single-gigabit Ethernet connectivity for structured cabling. It uses SF/UTP construction with foil and braid shielding over four twisted pairs (4 x 2 x AWG26/7) and is TIA/EIA 568B coded. The grey cable includes shielded Hirose TM11 RJ45 plugs compliant with IEC 60603-7-3 and a mounted strain relief boot without latch protection. The cable meets flame retardant and low-halogen standards (IEC 60332-1, IEC 60754-2) and low smoke emission (IEC 61034).

Advantages

Shielded SF/UTP design reduces electromagnetic interference and improves signal integrity over Cat5e links. The use of Hirose TM11 shielded RJ45 plugs ensures reliable, standardized connections for 1 Gigabit Ethernet. Low-smoke, halogen-free materials and flame retardant construction increase safety in enclosed environments. The 25 m length supports flexible placement between network equipment in homes or offices.

Suitable for

• 1 Gigabit Ethernet connections
• Office and home networking between switches, routers and PCs
• Environments requiring reduced EMI or additional shielding
• Structured cabling using TIA/EIA 568B wiring

Key specifications

• Cable type: Cat5e SF/UTP (foil + braid)
• Conductor: 4 x 2 x AWG26/7
• Length: 25 m
• Connectors: 2 x Hirose TM11 shielded RJ45 (IEC 60603-7-3)
• Coding: TIA/EIA 568B
• Outer diameter: Ø = 5.7 mm
• Standards: Flame retardant IEC 60332-1, halogen-free IEC 60754-2, low smoke IEC 61034

How to use

Plug each shielded RJ45 connector into the corresponding network ports of your devices (switch, router, PC). Ensure both ends follow the TIA/EIA 568B wiring if integrating into existing structured cabling. Route the cable to avoid sharp bends and sources of mechanical stress; the mounted strain relief boot helps protect the connector but does not include latch protection. Terminate or secure the cable as needed for installation length and routing.

Recommendations

For optimal performance, keep the cable away from high-power electrical cables and strong EMI sources. Use shielded network equipment or proper grounding when shielding continuity is required. Avoid tight bending radii and do not expose the cable to high temperatures or direct mechanical abrasion.
