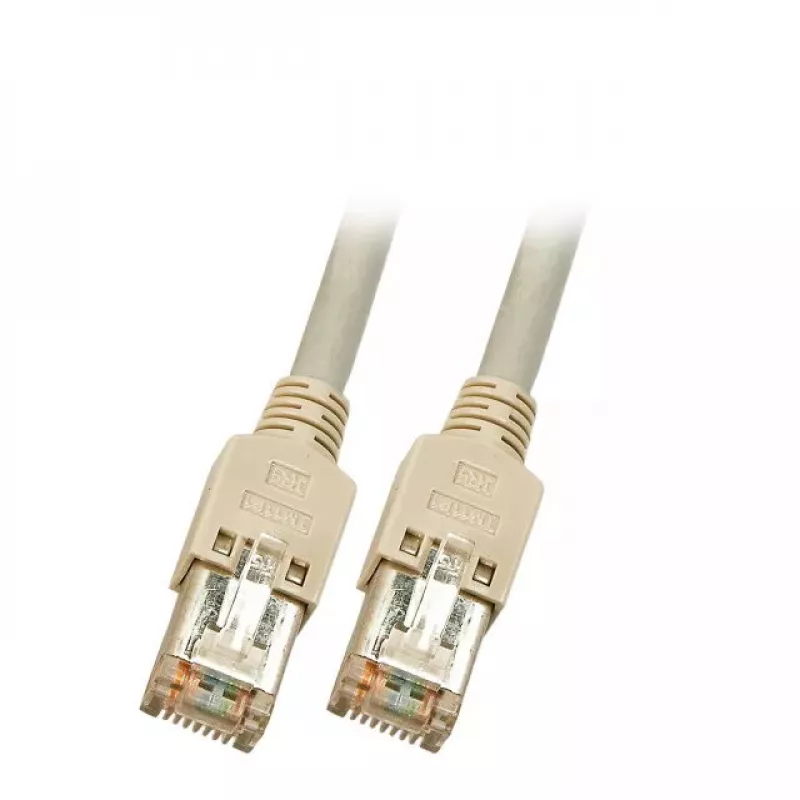

Cable de red EFB Elektronik Cat5e RJ-45 gris 2m SF/UTP

The EFB Elektronik Cat5e SF/UTP RJ-45 networking cable, 2 m, provides 1 Gigabit Ethernet performance over Cat.5e standard at 100 MHz. It uses shielded Hirose TM11 RJ45 plugs (IEC 60603-7-3) and SF/UTP construction with foil and braid shielding to reduce electromagnetic interference. The cable is TIA/EIA 568B coded and designed with flame-retardant, halogen-free, low-smoke materials to meet IEC safety standards.

Advantages

Shielded SF/UTP design and shielded Hirose TM11 RJ45 plugs improve signal integrity in environments with potential interference. The cable’s LSZH jacket offers flame retardant and halogen-free properties with low smoke emission, complying with IEC 60332-1, IEC 60754-2 and IEC 61034. TIA/EIA 568B wiring and copper-plated contacts ensure compatibility and reliable 1 Gbps connectivity.

Suitable for

• Wired LAN connections requiring 1 Gigabit Ethernet
• Office and server-room installations where EMI reduction is needed
• Structured cabling using TIA/EIA 568B wiring
• Situations requiring low-smoke, halogen-free cabling

Key specifications

• Standard: Cat.5e, 100 MHz
• Length: 2 m
• Connectors: 2 × Hirose TM11 RJ45 shielded (IEC 60603-7-3)
• Cable type: SF/UTP, 4 × 2 × AWG26/7
• Overall diameter: Ø 5.7 mm
• Wiring: TIA/EIA 568B
• Safety: Flame retardant IEC 60332-1, halogen-free IEC 60754-2, low smoke IEC 61034
• Product colour: Grey

How to use

Connect each RJ-45 plug to the corresponding Ethernet ports on your devices, ensuring a secure fit. Use the cable for network connections between switches, routers, computers, or patch panels. Avoid sharp bends and excessive pulling; the mounted strain relief boot helps protect the connector but does not include latch protection.

Recommendations

For optimal performance, install the cable away from high-power electrical lines and sources of strong electromagnetic interference. Verify TIA/EIA 568B termination on both ends for compatibility with structured cabling. Do not expose the LSZH jacket to open flames or prolonged UV exposure.
