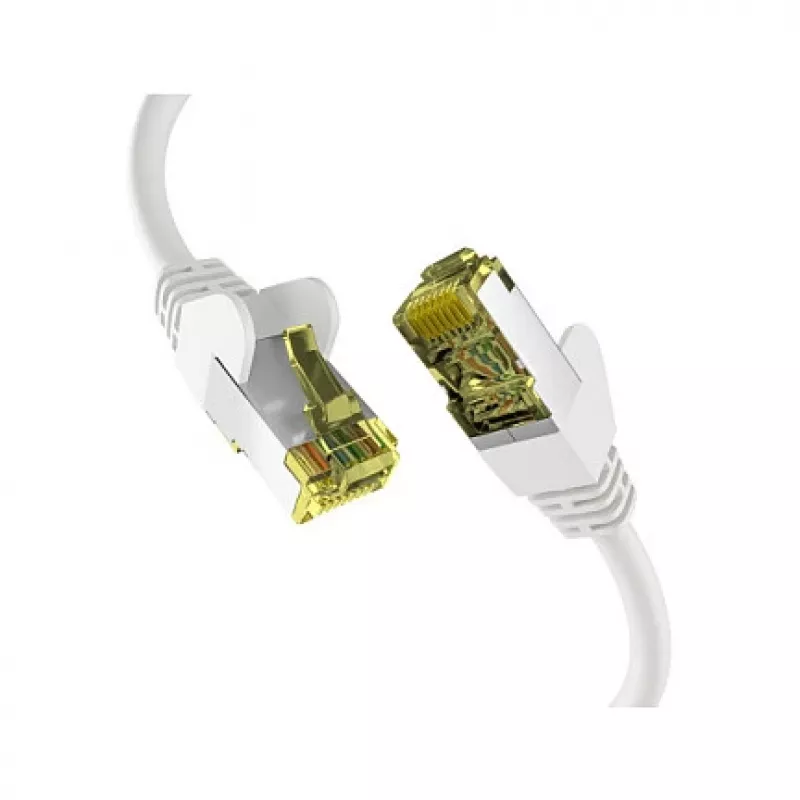

Cable de red EFB Elektronik EC020200025 10m Cat6a S/FTP RJ-45

The EFB Elektronik EC020200025 10m Cat6a S/FTP RJ-45 networking cable provides a shielded, high-performance connection for wired Ethernet setups. With a 10 m length and Cat6a specification, the cable supports high-speed data transfer up to 10000 Mbit/s and is fitted with RJ-45 connectors plated in gold for improved contact reliability. Its S/FTP shielding reduces electromagnetic interference, making it suitable for stable connections in home, office, and small data center environments.

Advantages

This Cat6a S/FTP cable offers improved noise immunity through braided and foil shielding, which minimizes crosstalk and external interference. The gold-plated RJ-45 connectors ensure low contact resistance and longer connector life. The 10 m length provides flexibility for room-to-room routing without connectors or couplers, and the white outer jacket enables discreet installation along walls and ceilings.

Suitable for

• Wired Ethernet connections for PCs, routers and switches
• High-bandwidth applications such as 10 Gigabit LAN and multimedia streaming
• Office and home networks requiring reduced electromagnetic interference
• Temporary or permanent structured cabling where a 10 m patch cable is needed

Key specifications

• Cable category: Cat6a
• Shielding: S/FTP (overall braid + individual pair foil)
• Length: 10 m
• Connectors: RJ-45 to RJ-45
• Data rate: up to 10000 Mbit/s
• Colour: White
• Connector plating: gold-plated contacts

How to use

Connect one RJ-45 end to your network device (router, switch or PC) and the other end to the corresponding port on the remote device. Ensure connectors are fully inserted until the latch clicks to secure the connection. Route the cable to avoid tight bends and proximity to high-power electrical sources to preserve shielding effectiveness and signal integrity. For installations through conduits or wall channels, verify the bend radius recommendations of Cat6a cables to prevent performance degradation.

Recommendations

For optimal performance, use this Cat6a S/FTP cable in environments with potential electromagnetic interference and maintain gentle cable bends. Avoid kinking and excessive tensile strain when pulling through conduits. Test connections with a network tester after installation to confirm link speed and signal quality.
