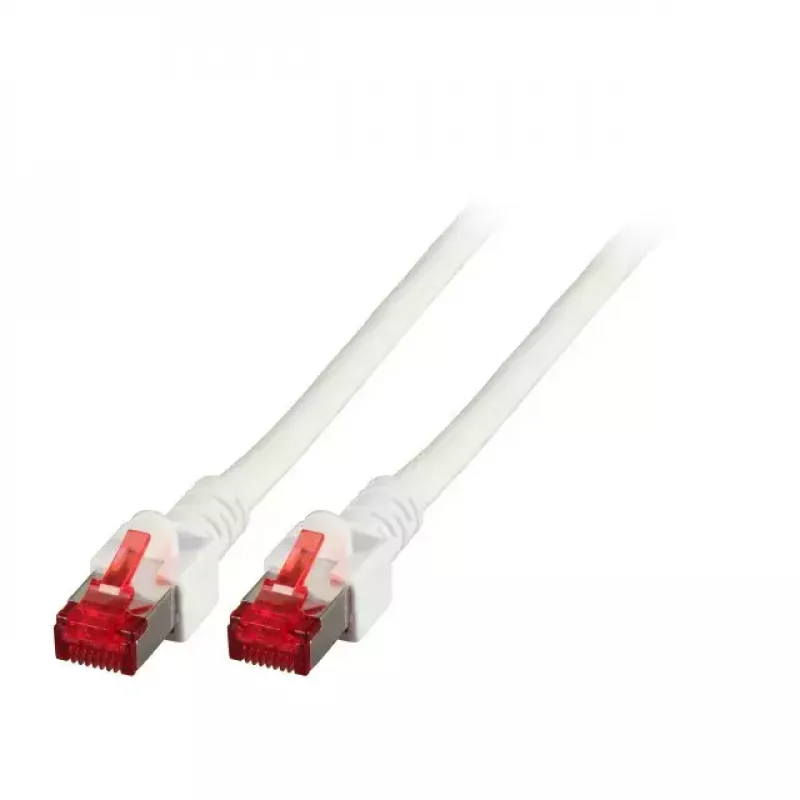

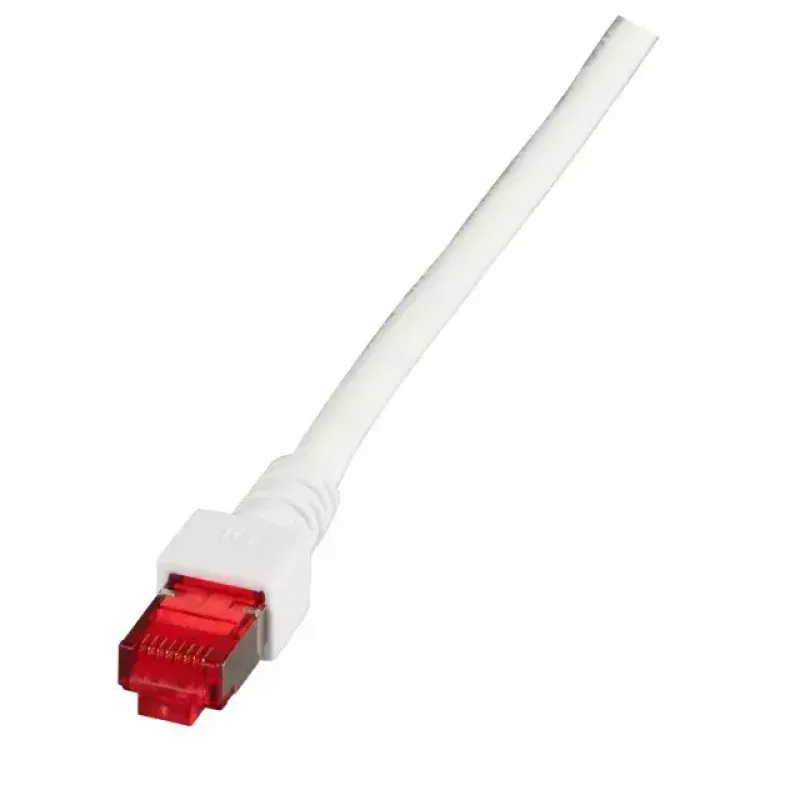

Cable de red EFB Elektronik K5518.30 RJ-45 Cat6 30 m blanco

1 Gigabit Ethernet Cat.6 250 MHz patch cable with shielded RJ45 plugs and soldered moulded strain relief boot designed for reliable network connections. The cable uses S/FTP construction with four pairs of AWG27/7 conductors and a pair-in-metal-foil (PiMF) shield, meeting TIA/EIA 568B coding for straightforward termination and compatibility with standard Ethernet ports. The sheath is low-smoke, halogen-free (LSZH) and the cable meets international flame and smoke standards for safer installations.

Advantages

The shielded RJ45 plugs (IEC 60603-7-5) reduce electromagnetic interference for stable Gigabit throughput. S/FTP PiMF construction minimizes crosstalk between pairs, supporting the Cat.6 250 MHz performance. The LSZH outer jacket is halogen-free and flame retardant, complying with IEC 60332-1, IEC 60754-2 and IEC 61034 standards for low smoke and reduced toxic gas emission. A moulded strain relief boot with latch protection increases connector durability during frequent plugging and handling.

Key specifications

• Category: Cat.6
• Bandwidth: 250 MHz
• Data rate: 1 Gigabit Ethernet
• Conductor: 4 x 2 x AWG27/7
• Shielding: S/FTP with PiMF

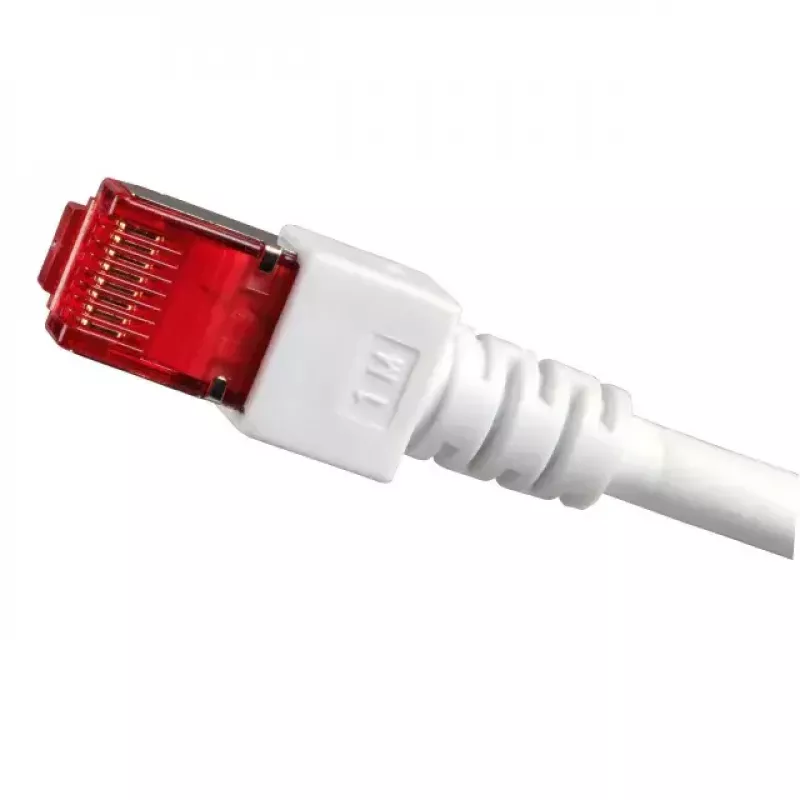

• Connectors: 2 x RJ45 shielded (IEC 60603-7-5)
• Coding: TIA/EIA 568B
• Diameter: Ø 6.2 mm
• Sheath: LSZH (halogen-free, low smoke)
• Standards: IEC 60332-1, IEC 60754-2, IEC 61034

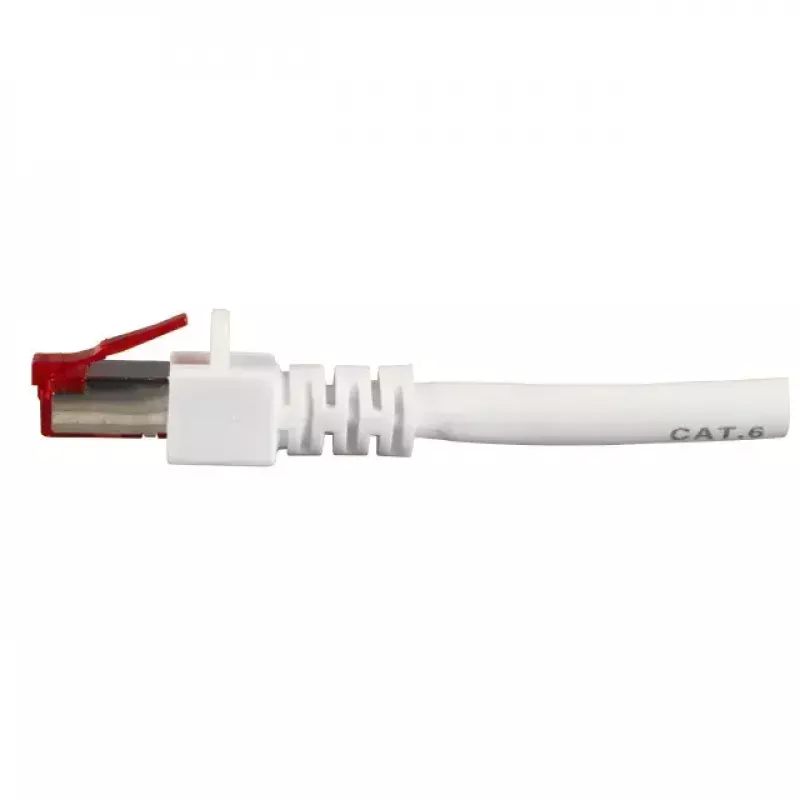

• Accessories: Moulded strain relief boot with latch protection

How to use

Connect each RJ45 plug to the corresponding Ethernet ports on devices or patch panels following the TIA/EIA 568B wiring code. Ensure the cable is not sharply bent and allow gentle radii during routing to preserve internal shielding and conductor integrity. For installations in restricted spaces, use the moulded strain relief boot to protect the latch and avoid excessive pull force on the connector.

Recommendations

Use this Cat.6 S/FTP LSZH patch cable for indoor structured cabling where reduced electromagnetic interference and low-smoke, halogen-free properties are required; verify connectors and patch panels are properly grounded when using shielded cabling.
