Cable de red EFB Elektronik K5530.2 verde 2 m Cat5e SF/UTP

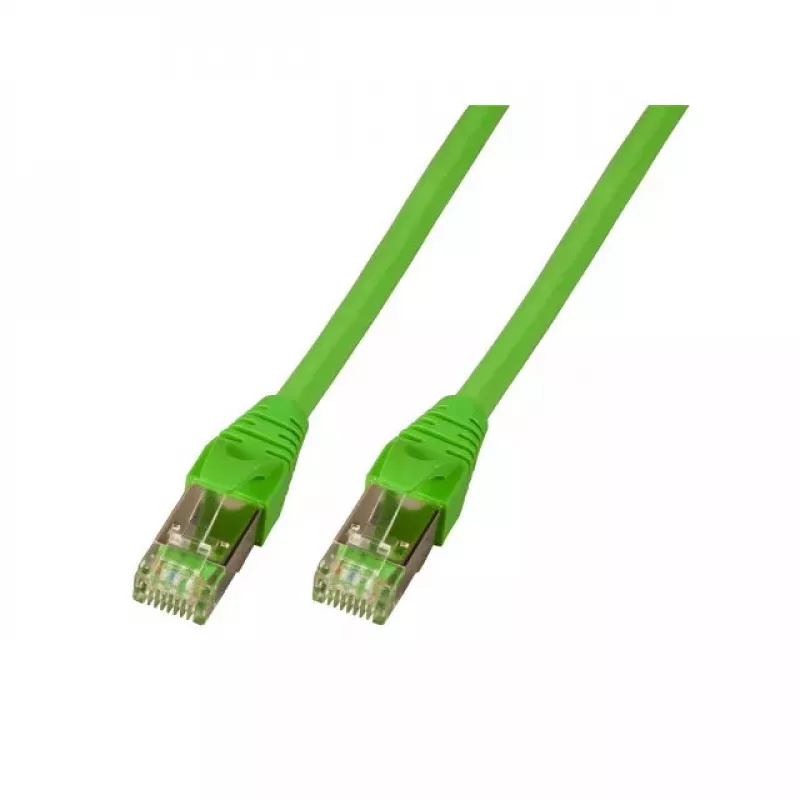

The EFB Elektronik K5530.2 is a 2 m Cat5e SF/UTP networking cable with RJ45 plugs at both ends. The cable uses 4 pairs of AWG26/7 conductors with a PUR jacket in green (RAL6018) and supports an extended temperature range from -40 °C to +80 °C. Connectors are shielded and comply with IEC 60603-7-3; contacts are 50 µ gold-plated with a minimum contact durability of 750 mating cycles. The cable construction provides low differential impedance and continuous 360° shield contact for improved EMI performance.

Advantages

Shielded SF/UTP design and full 360° connector shielding reduce electromagnetic interference. Gold-plated contacts (50 µ) improve signal transmission and resist corrosion. Molded strain relief with latch protection secures the connector and reduces mechanical stress. The PUR jacket offers flexibility and resistance suitable for industrial and office environments, while the extended temperature range allows use in harsh conditions.

Suitable for

• Ethernet connections up to Cat5e performance
• Office and home network patching
• Environments requiring improved EMI immunity
• Industrial or outdoor-proximate installations within the specified temperature range

Key specifications

• Length: 2 m
• Standard: Cat5e, SF/UTP
• Conductor: 4 x 2 x AWG26/7
• Jacket material: PUR, color RAL6018, Ø = 6.2 mm
• Connectors: 2 × RJ45, shielded, IEC 60603-7-3
• Contact plating: 50 µ gold
• Contact durability: ≥ 750 mating cycles
• Temperature range: -40 °C to +80 °C

How to use

Plug each RJ45 connector into the corresponding Ethernet port on your devices (switch, router, PC). Ensure the latch engages to secure the connection and avoid sharp bends near the connector and strain relief. For best performance, use the cable for links within Cat5e specifications and avoid exposure to chemicals or sharp objects that could damage the PUR jacket.

Recommendations

Do not exceed the cable’s mechanical limits: avoid repeated flexing at the connector, do not pull on the cable to remove connectors, and maintain operation within the specified temperature range (-40 °C to +80 °C). For environments with very high EMI, verify system-level grounding and shielding to maximize the cable’s shield benefits.
