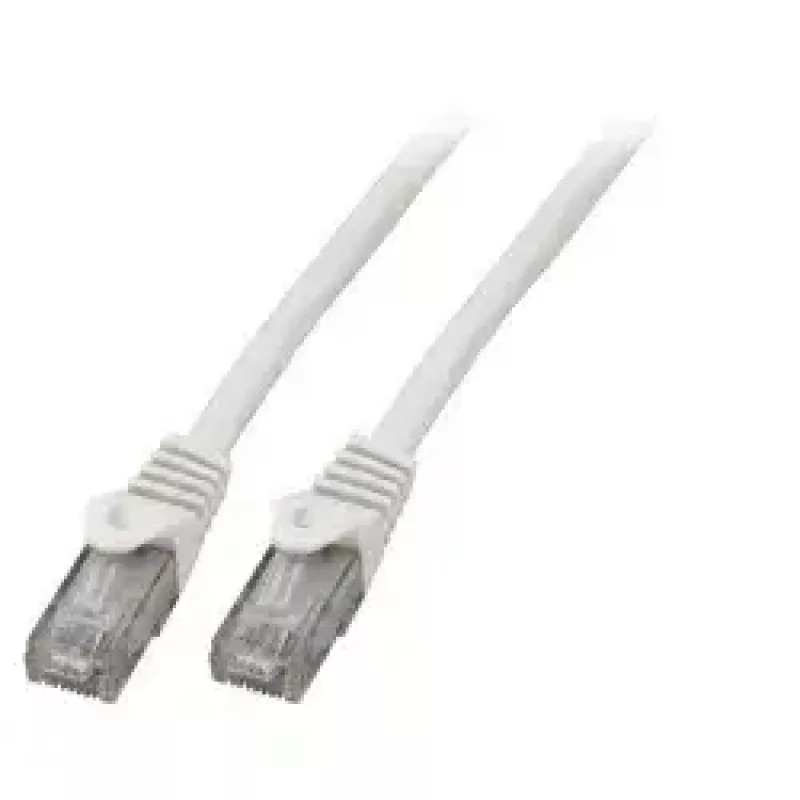

Cable de red EFB Elektronik K8110WS.7,5 RJ-45 Cat5e 7,5 m blanco

The EFB Elektronik K8110WS.7,5 is a 7.5 m Cat5e U/UTP patch cable designed for standard Ethernet connections. The cable uses AWG26/7 stranded conductors in four pairs and a LSZH (low smoke, halogen-free) jacket with an outer diameter of 5.4 mm. Both ends are fitted with moulded Cat5e RJ45 plugs wired 1:1 to IEC60603-7 and feature 3 µm gold-plated contacts and integrated strain relief with bend and latch protection.

Advantages

The cable complies with ISO/IEC 11801 and EIA/TIA-568 standards and supports 10/100/1000Base-T(X) networks, enabling gigabit data transmission. The U/UTP construction and stranded AWG26/7 conductors provide flexible handling and reliable signal transmission, while the LSZH jacket reduces toxic smoke and halogen release in case of fire. Gold-plated contacts and moulded strain relief increase connector durability and connection integrity.

Suitable for

• Connecting desktop computers, switches and routers within offices and homes
• Patch panels and wall outlets in structured cabling installations
• Temporary or permanent network links where a white cable finish is preferred

Key specifications

• Product: EFB Elektronik K8110WS.7,5
• Length: 7.5 m
• Cable type: U/UTP Cat.5e, 4 pairs, AWG26/7 stranded
• Jacket: LSZH (low smoke, halogen-free), OD 5.4 mm
• Connectors: 2 × Cat.5e RJ45 plugs, wired 1:1 (IEC60603-7)
• Contacts: 3 µm gold plated
• Standards: ISO/IEC 11801, EIA/TIA-568
• Supported cabling technology: 10/100/1000Base-T(X)
• Color: White
• MPN: K8110WS.7,5
• EAN: 4049759179601

How to use

Route the cable between network devices ensuring the bend radius is not exceeded and the moulded strain relief remains unobstructed. Insert RJ45 plugs fully into device or patch panel ports until the latch clicks. For structured cabling, label both ends according to your installation scheme and avoid running the cable parallel to high-voltage power lines to minimize interference.

Recommendations

For optimal performance, use the cable for horizontal and patching connections up to 7.5 m in length, keep termination points dry and clean, and avoid tight bends or kinks. Store unused cables in their original packaging with the printed label showing article and EAN details.
