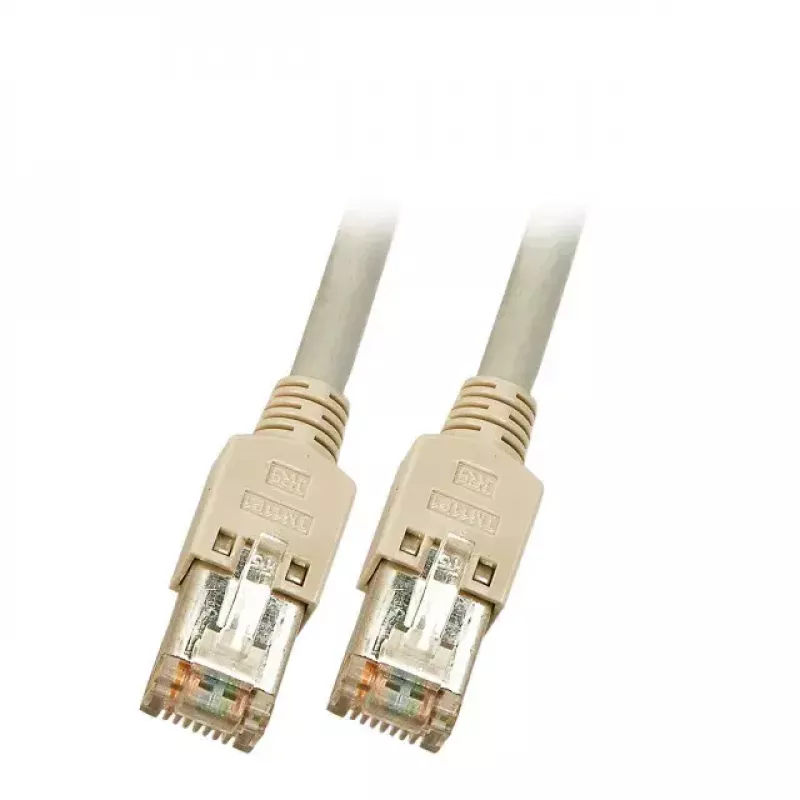

Cable de red EFB Elektronik K8452.1 RJ-45 Cat5e 1 m gris

The EFB Elektronik K8452.1 is a 1 m Cat5e Ethernet patch cable with F/UTP shielding and grey jacket, designed for reliable 10/100/1000Base-T(X) connections. Both ends are fitted with shielded Hirose TM11 RJ45 plugs compliant with IEC 60603-7-3 and coded to TIA/EIA 568B. The cable construction uses 4 pairs of AWG26/7 conductors with foil shielding and an overall diameter of 5.4 mm, and it meets flame retardant and low-halogen standards for safer installations.

Advantages

This networking cable provides Gigabit-capable Cat5e performance with F/UTP shielding to reduce electromagnetic interference. Shielded Hirose TM11 RJ45 plugs ensure a secure, standards-compliant connection. The LSZH (low smoke, halogen-free) jacket and compliance with IEC 60332-1, IEC 60754-2 and IEC 61034 enhance safety in confined or public spaces. The mounted strain relief boot offers cable protection at the connector ends.

Suitable for

• Wired LAN connections for PCs, switches and routers
• Office and home network wiring supporting Gigabit Ethernet
• Environments requiring reduced electromagnetic interference due to foil shielding
• Installations where low-smoke, halogen-free materials are preferred

Key specifications

• Cable type: Cat5e, F/UTP (foil shielded)
• Length: 1 m
• Connectors: 2 × Hirose TM11 RJ45 plug, shielded, IEC 60603-7-3
• Wiring code: TIA/EIA 568B
• Conductor: 4 × 2 × AWG26/7
• Diameter: Ø = 5.4 mm
• Standards: 10/100/1000Base-T(X)
• Safety: Flame retardant IEC 60332-1; Halogen-free IEC 60754-2; Low smoke IEC 61034
• Jacket: LSZH (low smoke, zero halogen)

How to use

Connect each RJ45 plug to the corresponding network ports on devices such as computers, switches or routers. Ensure both ends are fully inserted until the connector seats and the mounted strain relief boot is positioned to prevent excessive bending near the plug. Observe standard cabling practices and the TIA/EIA 568B wiring scheme when terminating or testing network links.

Recommendations

For optimal performance, avoid tightly coiling the cable or running it parallel to power cables for long distances. Use the cable within typical indoor temperature ranges and replace it if the jacket or connectors show visible damage.
