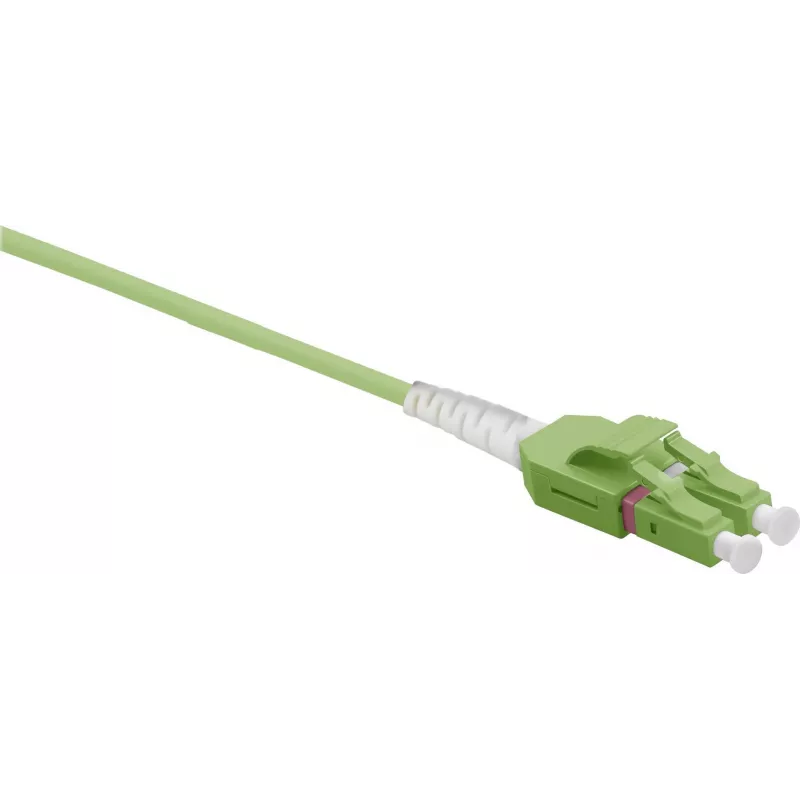

Cable de red Helos cable de parcheo de fibra óptica Uniboot LC/LC Duplex 50/125µm OM5 20,0m verde

The Helos LWL Patch Cable Uniboot LC/LC Duplex 50/125µm OM5 20.0m Green is a multi-mode fiber patch cable designed for high-density network environments and high-speed data transmission. It uses LC/LC duplex connectors in a uniboot configuration to minimize connector footprint in patch panels and combines 50/125µm fiber core/cladding dimensions with OM5 specification to support short-reach multimode applications. The 20.0 meter length and green jacket provide practical reach and easy visual identification within structured cabling systems.

Advantages

The uniboot LC/LC duplex design reduces connector bulk and simplifies routing in dense racks while maintaining separate transmit and receive channels for bi-directional communication. Compliance with OM5 multimode standards ensures compatibility with systems that require extended wavelength support and improved modal performance for certain short-range, high-bandwidth applications. The 50/125µm fiber profile is widely used in data center and enterprise cabling, offering reliable multimode performance. The green jacket color aids rapid visual identification and cable management in complex installations.

Suitable for

• Data center patching and cross-connects
• Enterprise network backbone and horizontal runs
• High-density rack and patch panel environments
• Short-reach multimode applications using OM5 specification
• Environments requiring clear visual cable identification

Key specifications

• Fiber type: multimode
• Core/cladding diameter: 50/125 µm
• OM classification: OM5
• Connector type: LC to LC duplex (uniboot configuration)
• Length: 20.0 metres
• Jacket color: green

How to use

Route the Helos uniboot LC/LC duplex cable between patch panels, transceivers or equipment ports making sure each LC connector is inserted into the corresponding duplex adapter or transceiver port. Handle connectors by the boot and avoid excessive bending of the fiber cable; maintain the manufacturer’s minimum bend radius to preserve signal integrity. For installation, secure the cable along trays or cable management bars, and label both ends if required for identification. Test the link after installation with appropriate multimode fiber test equipment to verify continuity and expected performance.

Recommendations

Store and install the cable in environments within recommended temperature and humidity ranges and protect connectors from dust with dust caps until final connection. Avoid tight bends and excessive tensile loads during installation. Use appropriate cleaning tools for LC connectors before mating to ensure optimal optical performance.
