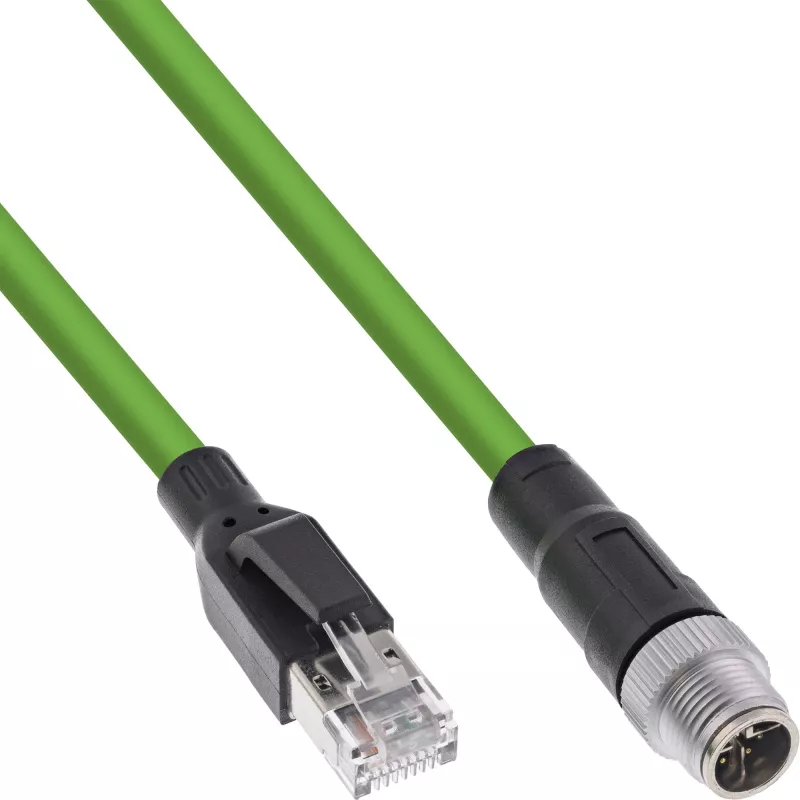

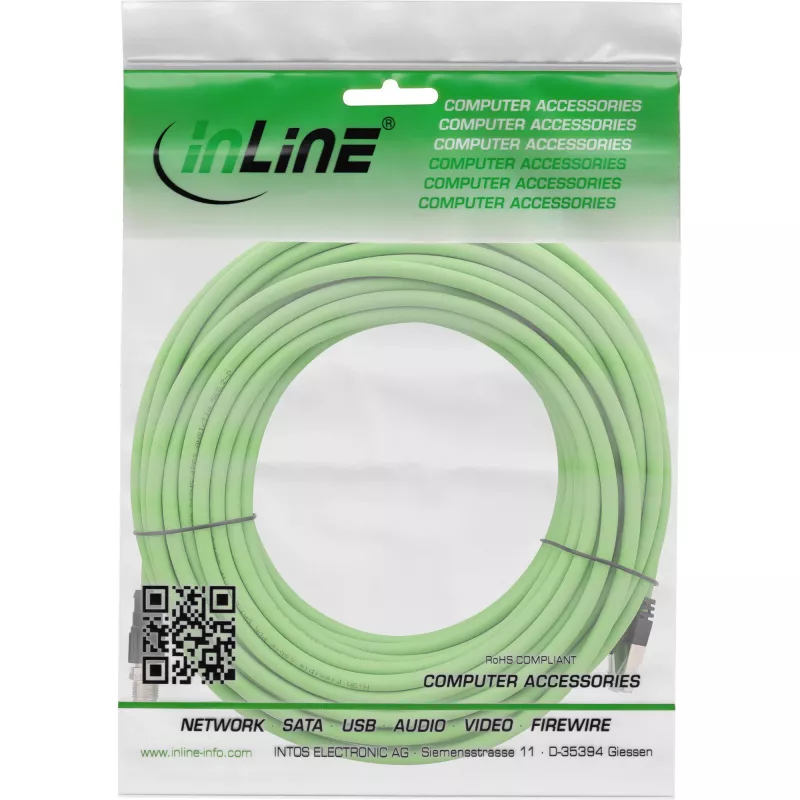

InLine Cable de red industrial, M12 de 8 pines codificación X a RJ45, Cat.6A PUR, 7,5 m

The InLine Industrial Network Cable, M12 8-pin X-coded to RJ45, Cat.6A PUR, 7.5 m is designed for reliable data transmission in automation and fieldbus environments. It supports network speeds up to 10 Gbit/s and features a shielded PUR jacket that is oil-resistant, UV-resistant, abrasion-resistant, halogen-free, and flame-retardant according to UL 94.

Key features

• Supports network speeds up to 10 Gbit/s (Cat.6A)
• Drag-chain-compatible up to 10 million bends
• Torsion-resistant up to 3 million bends
• M12 connector with X-coding, IP67 rated
• RJ45 connector, IP20 rated
• PUR jacket: oil-resistant, UV-resistant, abrasion-resistant, halogen-free, flame-retardant (UL 94)
• S/FTP shielding
• Suitable for drag chains

Specifications

• Brand: InLine
• MPN: 40607
• Type: Cat.6A
• Length: 7.5 m
• Wire cross-section: 26 AWG
• Sheath material: PUR
• Connector side A: M12 male plug 8-pin straight, X-coded
• Connector side B: RJ45 plug straight
• Shielding: S/FTP
• Dynamic bending radius: >64 mm
• Static bending radius: >32 mm
• Operating temperature: -20 to +80 °C
• Storage temperature: -20 to +80 °C
• Color: green
• Conductor material: Copper
• Torsion: +/- 180°/m
• Outer diameter: 6.8 mm
• Outlet diameter: 6.4 mm
