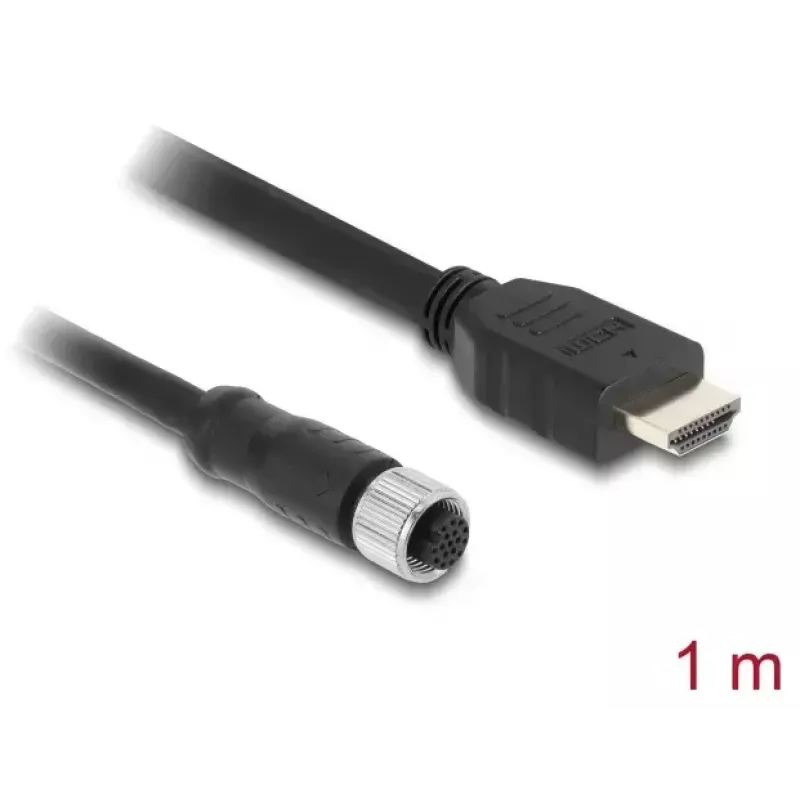

Cable DELOCK M12 codificado A de 17 polos (conector hembra) a HDMI (conector macho) — 1 m, negro

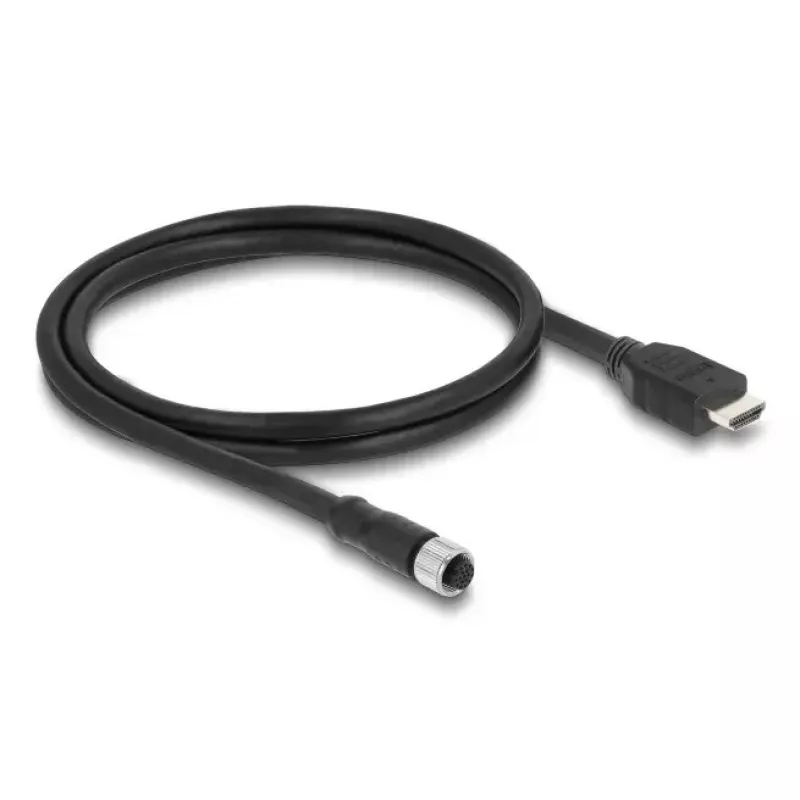

The DELOCK M12 A-coded 17-pin (female) to HDMI (male) cable is a 1 m industrial connection cable in black. It provides a rugged M12 A-coded interface on one end and a standard HDMI male plug on the other, enabling a secure link between M12-equipped devices (for example industrial cameras, embedded systems or HMIs) and HDMI displays or capture devices in demanding environments.

Advantages

The cable combines the robust, screw-locking M12 A-coded connector with a standard HDMI plug to maintain signal integrity in industrial settings. Its compact 1 m length reduces excess cable clutter while offering a direct connection between M12 devices and HDMI monitors. The product is designed for reliable transmission of video signals where mechanical stability and a compact form factor are required.

Suitable for

• Connecting industrial cameras with M12 outputs to HDMI monitors or capture cards
• Linking embedded systems or industrial PCs to HDMI displays
• Use in image processing systems and machine vision setups
• Mobile machines and HMIs that require a compact, secure video connection

When it may not be suitable

This cable is intended for devices that present an M12 A-coded 17-pin female interface and an HDMI display input; it will not be suitable for systems that use different M12 coding, pinouts, or non-HDMI display interfaces. It is also not a replacement for long-distance transmission solutions or active/extender adapters required for signal boosting over extended runs.

Key specifications

• Cable length: 1 m
• Connector 1: M12 A-coded 17-pin (female)
• Connector 2: HDMI (male)
• Colour: Black

How to use

Connect the M12 A-coded 17-pin female end to the corresponding M12 male output on the device, ensuring correct alignment and tightening the screw-lock to secure the connection. Plug the HDMI male connector into the HDMI input of the display or capture device. Verify the display settings on source and sink devices and confirm a stable video signal. Avoid sharp bends near the connectors and secure the cable to prevent mechanical strain during operation.

What to consider before purchase

• Confirm your device uses an M12 A-coded 17-pin female interface and that the HDMI input on the display is compatible
• Check required cable length; this product is 1 m long
• Assess environmental and mechanical protection needs; additional shielding or protective conduits may be required in harsh conditions

Recommendations

For reliable operation, tighten the M12 connection to the recommended torque, avoid excessive bending radii near connectors, and use strain relief or cable ties to secure the cable in moving or vibration-prone installations.
