Cable de red InLine 78594A RJ-45 Cat.6A 90m negro

For extreme outdoor conditions:The robust cable drum with PUR jacket is abrasion-resistant, UV-resistant and resists bending, pulling and cracking - ideal for industry and outdoor use.
Reliable gigabit performance with Fluke test:The Cat.6A S/FTP cable enables transmissions up to 10GBase-T, tested according to Fluke Channel Standard – high network security guaranteed.
PoE/PoE+/PoE++ support for maximum flexibility:Supplies IP cameras, access points or devices with power and data via just one cable – perfect for temporary outdoor installations.

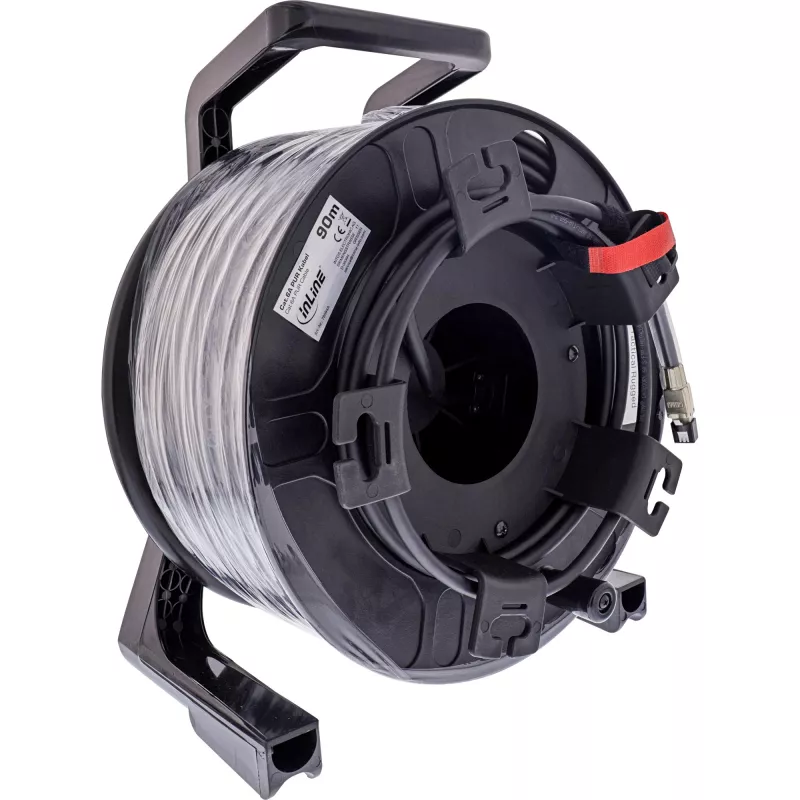

Pre-assembled on a durable IP67 reel:The lightweight but sturdy reel reliably protects the cable and facilitates transport, unwinding and retraction – efficient handling.
Pure copper, double-shielded for high EMC resistance:The four twisted 23AWG conductor pairs guarantee high interference resistance - even with electrical interference sources in industry or events.

The InLine® Cat.6A network cable reel with PUR outer jacket is the ideal solution for temporary network installations in harsh environments. Developed for use under the harshest conditions, it offers reliable data transmission with the highest mechanical and electrical resilience - in outdoor applications as well as in industrial plants, on construction sites or at large events.
The cable has four twisted copper conductor pairs (23AWG) with double S/FTP shielding and achieves transmission speeds of up to 10GBase-T. It is Fluke Channel tested and supports Power over Ethernet at all levels (PoE, PoE+, PoE++). This makes it ideal for connecting surveillance cameras, media hardware or temporary workstations - even in direct sunlight, high humidity or dirt.
The robust, UV and abrasion-resistant PUR sheathing protects against external influences, while the pre-assembled, IP67-compliant cable reel guarantees convenient use. Gold-plated RJ45 plugs ensure long-lasting connection quality.


Category: Cat.6A S/FTP

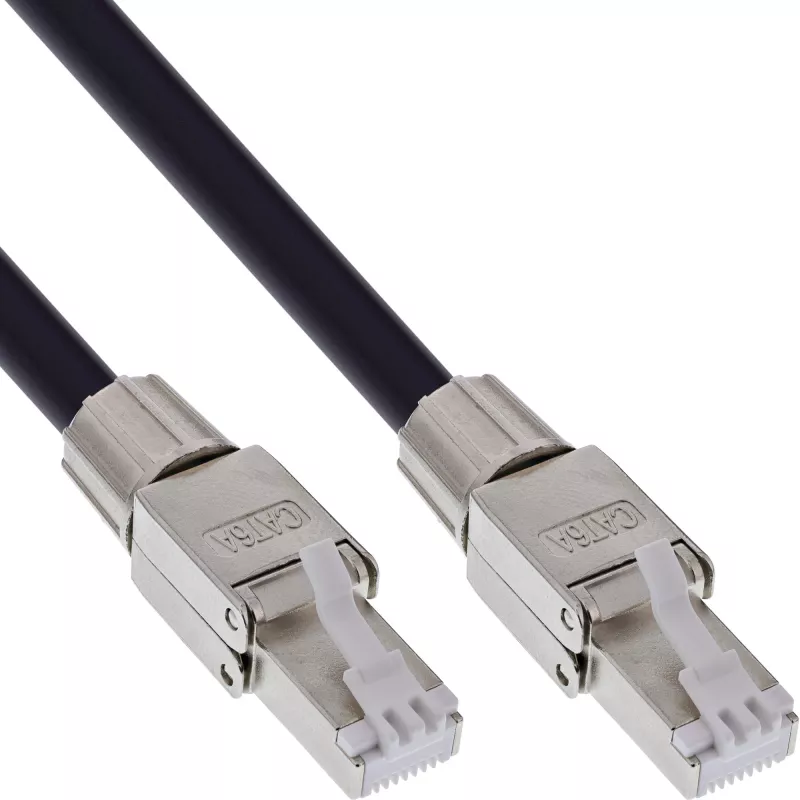

Plug: Gold-plated RJ45 plug
Conductor material: Pure copper, 4x2x23AWG
Outlet diameter: 7.8 ± 0.20 mm
Sheath material: PUR, UV and abrasion resistant
Reel protection class: IP67-compliant
Nominal voltage: 30 V
Fluke channel test: Up to 10GBase-T
Supports: PoE, PoE+, PoE++
Coil: Robust, lightweight, transportable

InLine Network cable reel IP67 Outdoor PUR, Cat.6A S/FTP, 90m. Cable length: 90 m, Cable standard: Cat6a, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Data transfer rate: 10000 Mbit/s, Product colour: Black

How to use

Unwind the required length from the reel and connect the gold-plated RJ-45 connectors to compatible network ports. Ensure the cable is routed to avoid sharp bends and mechanical pinch points; the PUR jacket improves durability but proper handling extends service life. For PoE applications, verify that connected devices and switches support the required PoE class.

Recommendations

For outdoor or industrial deployments, secure the cable to prevent movement from wind or machinery and avoid prolonged exposure to chemicals or solvents. Use appropriate strain relief at connector points and perform Fluke-style channel testing after installation to confirm link performance.
