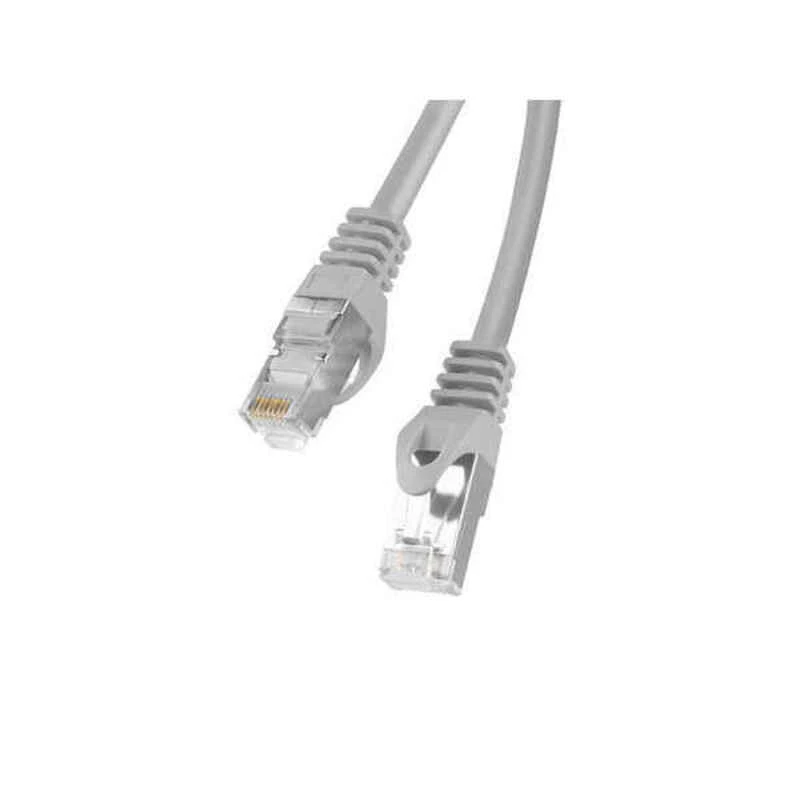

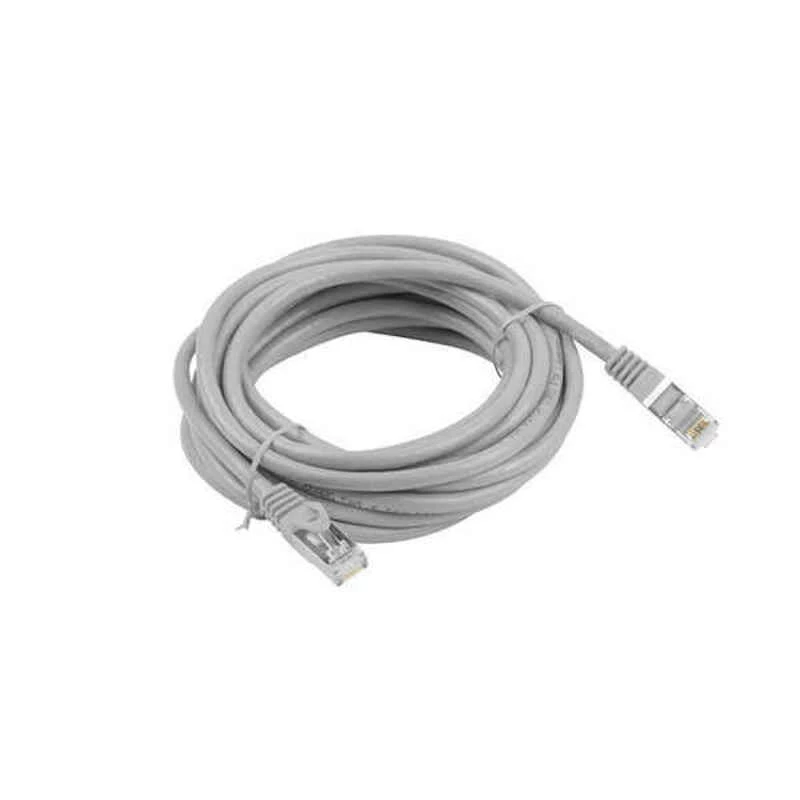

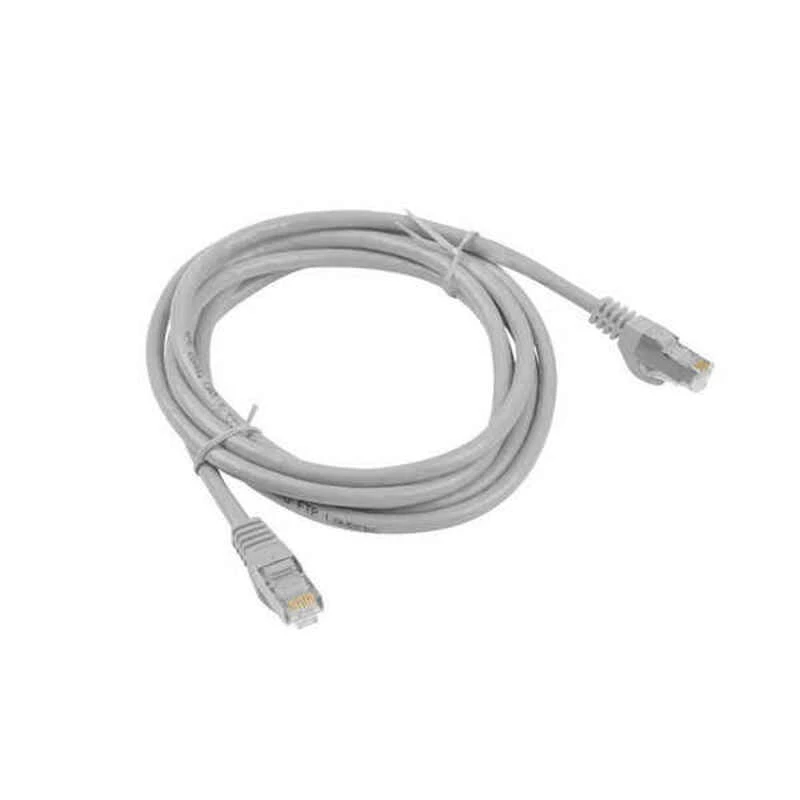

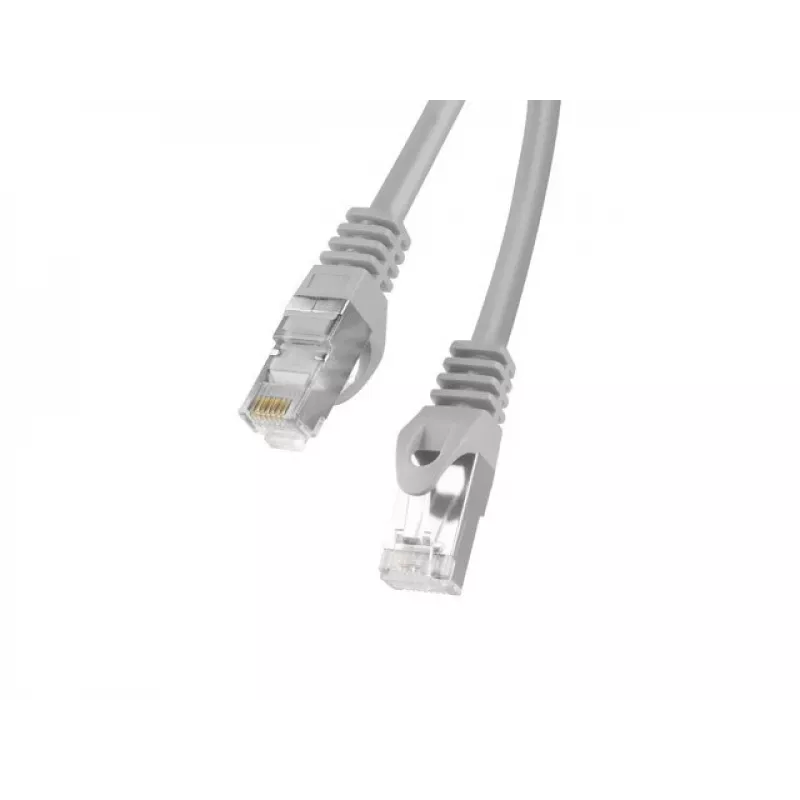

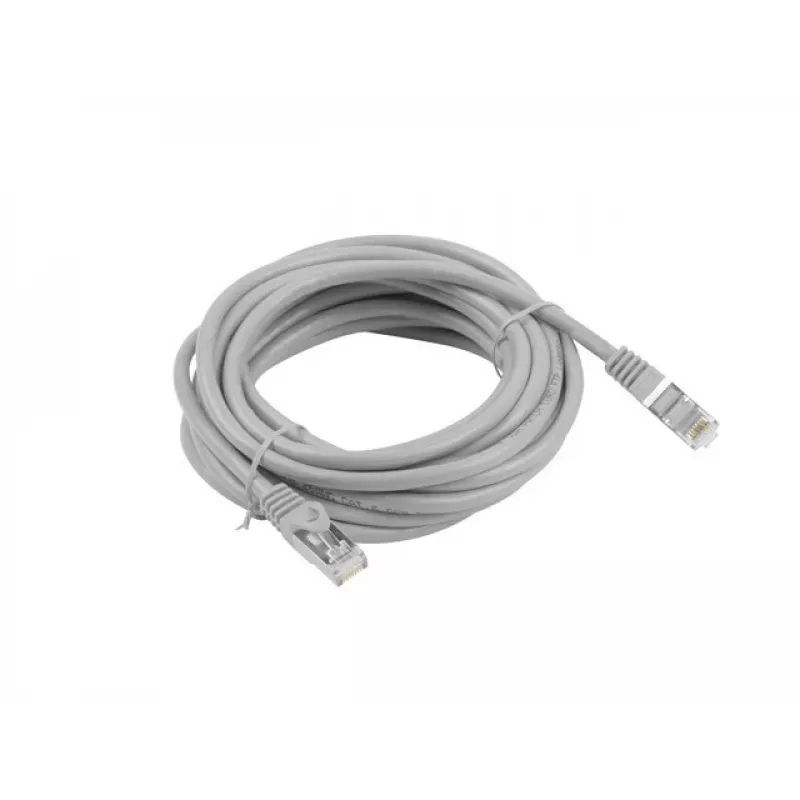

Cable de red Lanberg PCF6-10CC-0500-S RJ-45 Cat6 5 m Gris

The Lanberg PCF6-10CC-0500-S is a 5 m Cat6 FTP (F/UTP) patch cable with RJ-45 connectors on both ends. Designed for network installations that require shielding against electromagnetic interference, this grey RAL7035 cable supports operation up to 250 MHz and complies with ANSI/TIA/EIA-568B standards. The cable features a stranded conductor construction with AWG 26 equivalent (8 × 7 × 0.16 mm) and CCA drain wire, HDPE insulation, an LDPE cross filler, polyester tape, aluminium foil shield and a PVC outer jacket. Packaged in a string bag, it is suitable for structured cabling, office networks and other local network links.

Advantages

The shielded FTP design with aluminium foil and drain wire reduces susceptibility to external EMI, improving signal integrity for high-speed data transmission up to 250 MHz. AWG 26 stranded conductors and HDPE insulation provide consistent electrical characteristics while the PVC outer jacket offers mechanical protection. Compliance with ANSI/TIA/EIA-568B ensures compatibility with standard networking equipment and installations.

Suitable for

• Office and home Ethernet connections
• Structured cabling and patch panels
• LAN links between switches, routers and computers
• Environments requiring additional EMI protection

Key specifications

• Cable category: Cat6 FTP (F/UTP)
• Length: 5 m
• Conductor: AWG 26 (8 × 7 × 0.16 mm), stranded
• Drain wire: 7 × 0.16 mm CCA
• Conductor insulation: HDPE, 0.88 mm
• Cross filler: LDPE
• Shielding: aluminium foil with polyester tape
• Outer jacket: PVC, 5.7 mm
• Color: Grey (RAL7035)
• Frequency range: up to 250 MHz
• Standards: ANSI/TIA/EIA-568B
• Connectors: RJ-45 on both ends
• Packaging: string bag

How to use

Connect each RJ-45 connector to the corresponding port on devices such as switches, routers or network cards. Route the cable avoiding sharp bends and sources of strong electromagnetic interference where possible. For installations into patch panels or keystone jacks, ensure connectors are fully seated and strain on the cable is minimized to preserve shielding and conductor integrity.

Recommendations

Use this Cat6 FTP cable for short to medium-length Ethernet runs up to 5 m where EMI protection is beneficial; avoid outdoor exposure or burial without additional protective conduit, and do not exceed the recommended bend radius to maintain performance.
