Cable de red Lanview LV-6AFTP-FLEX-ANG-005B-S — apantallado FTP Cat6A, flexible, conector acodado, 0,05 m

Lanview LV-6AFTP-FLEX-ANG-005B-S is a shielded FTP Cat6A patch cable with a 0.05 m length, engineered for short connections in racks, switches and patch panels. The cable combines a flexible LSZH jacket with a slim conductor profile and an angled RJ45 plug that can be positioned before insertion to save space and reduce stress on ports. Its shielded construction supports Cat6A performance while helping to maintain signal integrity in dense installations.

Advantages

The shielded FTP design reduces electromagnetic interference and crosstalk compared with unshielded alternatives, supporting reliable high-speed links. The flexible, slim jacket and AWG 30 conductor profile allow tight routing and a small bending radius for neat cable management. The angled, multi-directional plug lets you orient the connector to fit confined spaces and minimize strain on equipment ports. The halogen-free (LSZH) jacket reduces toxic gas emission in case of fire and is suitable for indoor installations where low-smoke materials are preferred.

Suitable for

• Short patch connections between switches and patch panels in network racks
• Connections between devices in small or shallow cabinets
• Crowded workstation or server areas where cable routing space is limited
• Environments where reduced electromagnetic interference is required

Key specifications

• Cable category: Cat6A (shielded FTP)
• Length: 0.05 m
• Jacket type: LSZH (low smoke zero halogen)
• Conductor size/profile: slim, equivalent to AWG 30

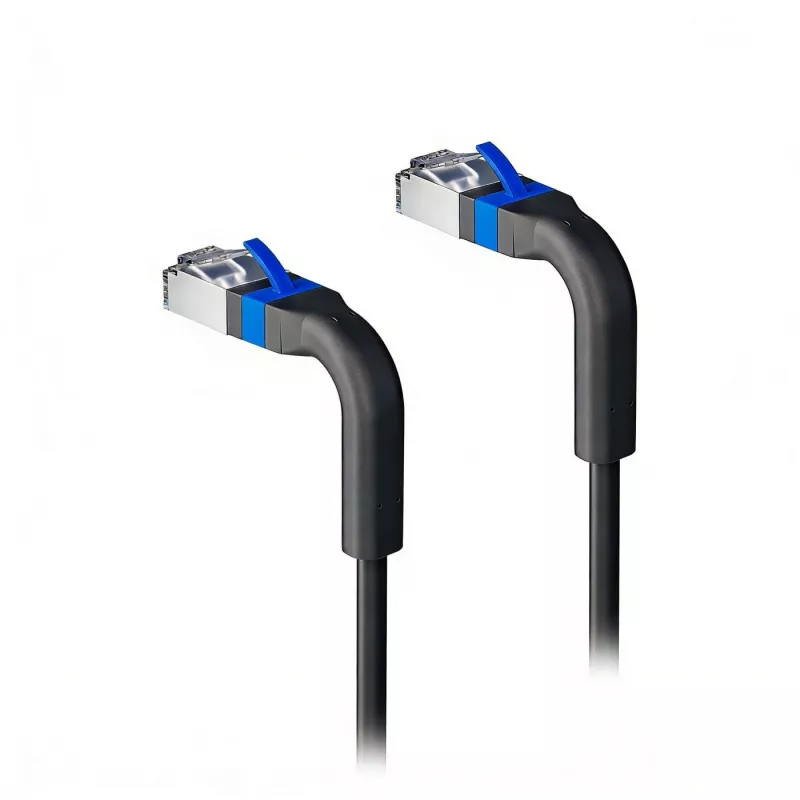

• Connector: angled RJ45 plug adjustable up to 90° in multiple directions
• Wire pairs: 4 pairs (8 conductors)
• Bending radius: 4× outer diameter

How to use

Before inserting, set the angled RJ45 plug to the required orientation to match the available space and avoid forcing the connector into the jack. Insert the connector into the device port until it clicks to ensure a secure connection. Use the 0.05 m cable for very short interconnects inside racks or between closely mounted equipment; avoid stretching the cable beyond its length. For routine maintenance, disconnect by pressing the plug latch and pulling straight out to prevent damage to the connector or port.

Recommendations

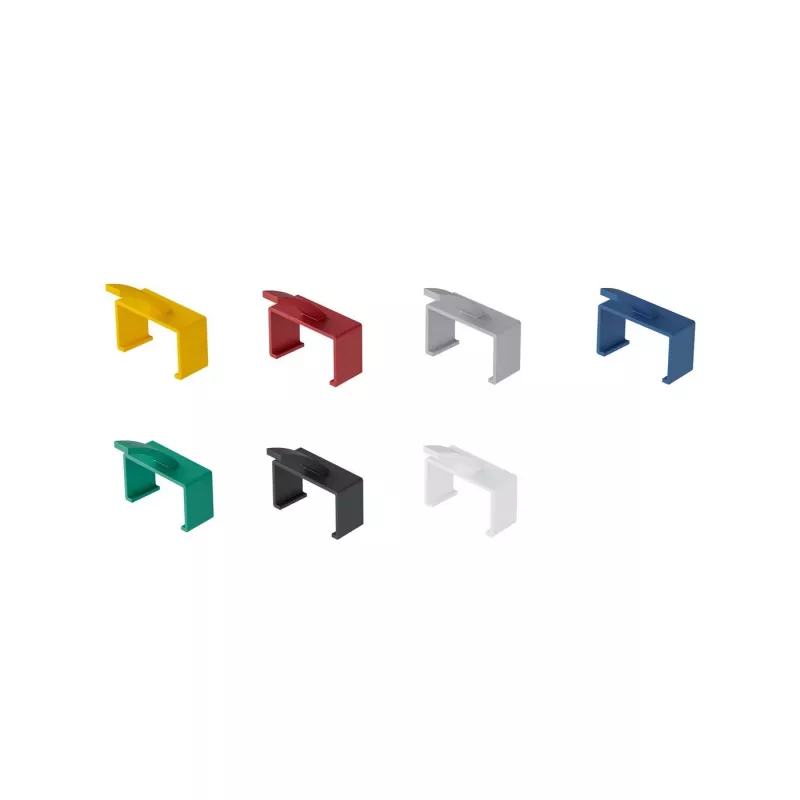

Where possible, plan cable routing to minimize sharp bends and keep the bending radius at least four times the cable outer diameter. For identification and organized installations, use compatible color clips (sold separately) and avoid excessive mechanical strain on the angled plug by adjusting its orientation prior to insertion.
