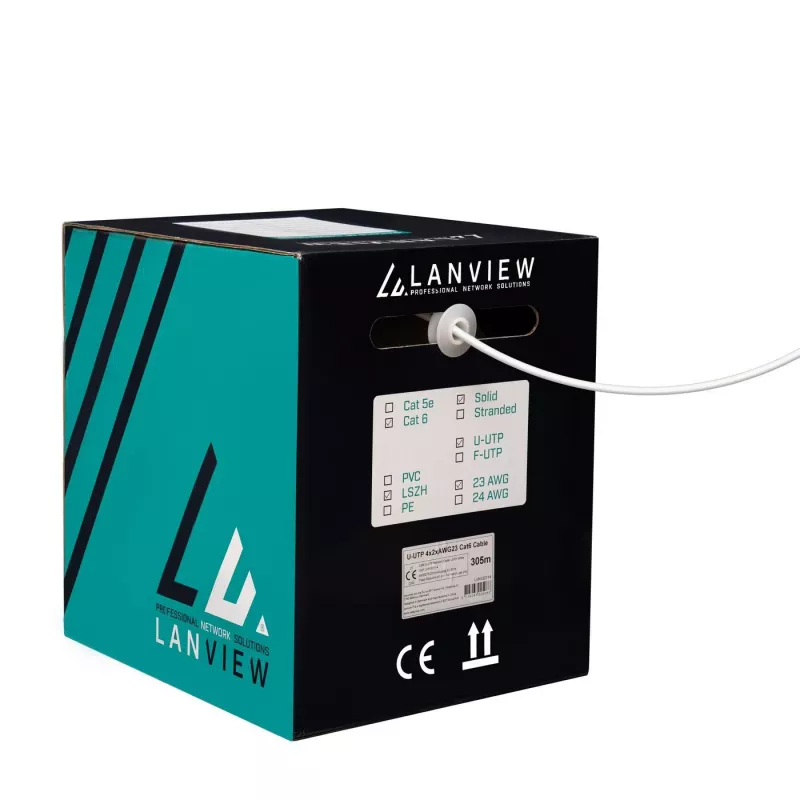

Cable de red Lanview LVN122114 305 m Cat6 U/UTP 10000 Mbit/s blanco

Lanview LVN122114 is a 305 m Cat6 U/UTP networking cable designed for transmission of telecommunications and high-speed data up to 10000 Mbit/s. The cable is unshielded (U/UTP) with LSZH jacket in white and contains four pairs of color-coded PE insulated conductors, manufactured and tested to ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards.

Advantages

The cable offers Cat6 performance for reliable high-speed networking, compliance with international structured cabling standards, and a low-smoke zero-halogen (LSZH) sheath suitable for installations where reduced toxic emissions are required. Its 305 m length on a reel supports long runs and reduces the need for splices.

Suitable for

• Structured cabling in offices and data centers
• High-speed Ethernet networks up to 10 Gbps
• Horizontal and backbone cabling in commercial buildings
• Installation areas requiring LSZH materials

Key specifications

• Brand: Lanview
• Model / MPN: LVN122114
• Length: 305 m
• Category: Cat6

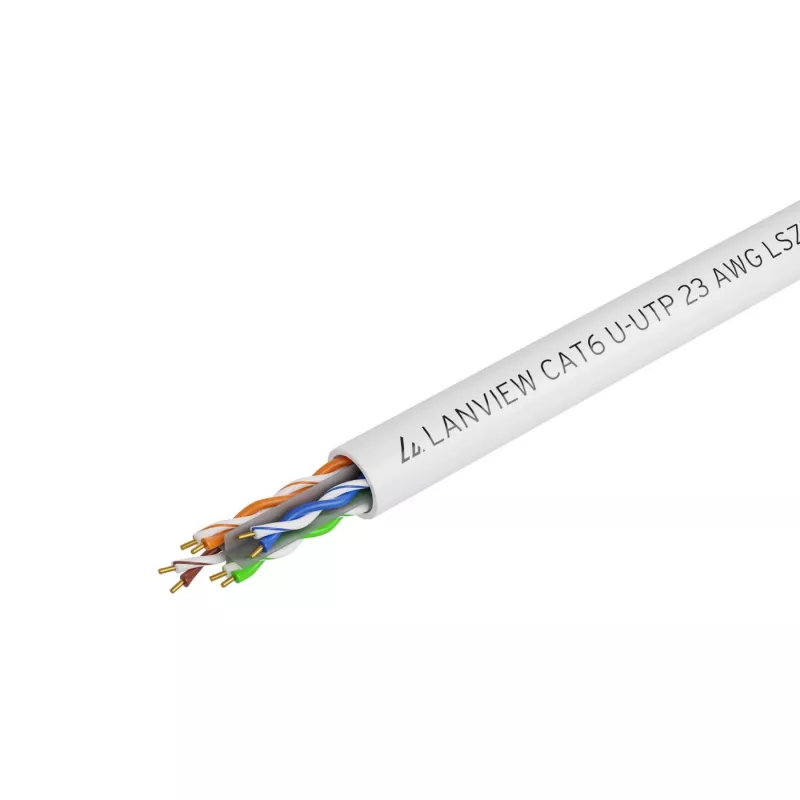

• Construction: U/UTP (unshielded twisted pairs)
• Conductor insulation: PE, 4x2 color-coded conductors
• Bandwidth / Speed: up to 10000 Mbit/s (10 Gbps)
• Standards: ISO/IEC 11801, EIA/TIA 568B, EN50173-2
• Jacket: LSZH, color: white
• EAN: 5715063025086

How to use

Install the cable according to local cabling practices and the requirements of the applied standards. Route the U/UTP cable avoiding sharp bends, excessive tensile stress and sources of strong electromagnetic interference. Terminate the ends with compatible Cat6 connectors or keystone jacks and test the links with appropriate certification or qualification tools to verify performance up to 10 Gbps.

Recommendations

For best performance, maintain bend radius no less than four times the cable diameter, avoid running parallel to power lines for long distances, and perform post-installation testing to confirm compliance with Cat6 requirements and the specified standards.
