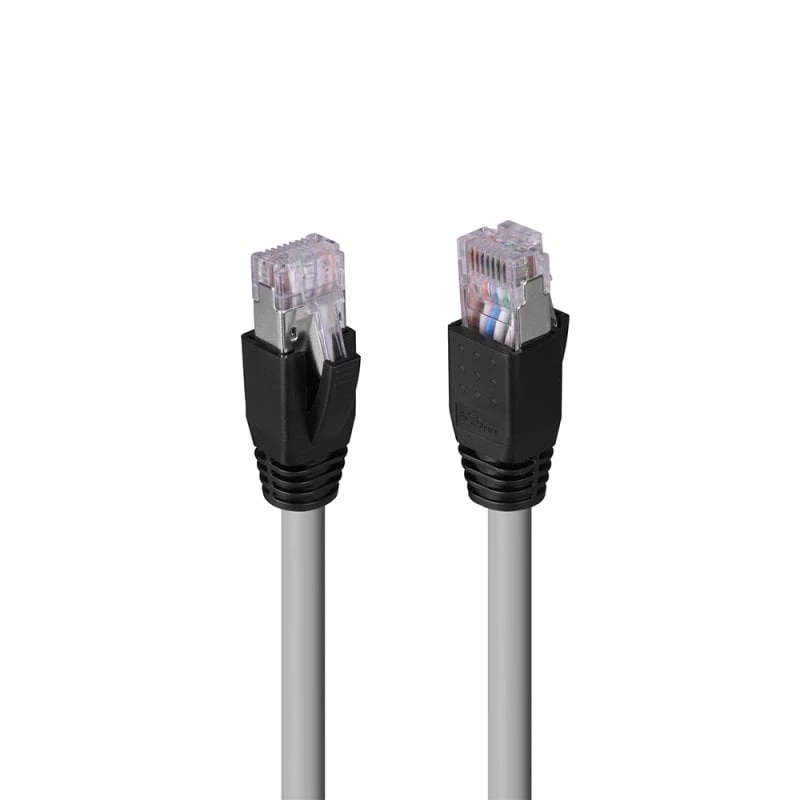

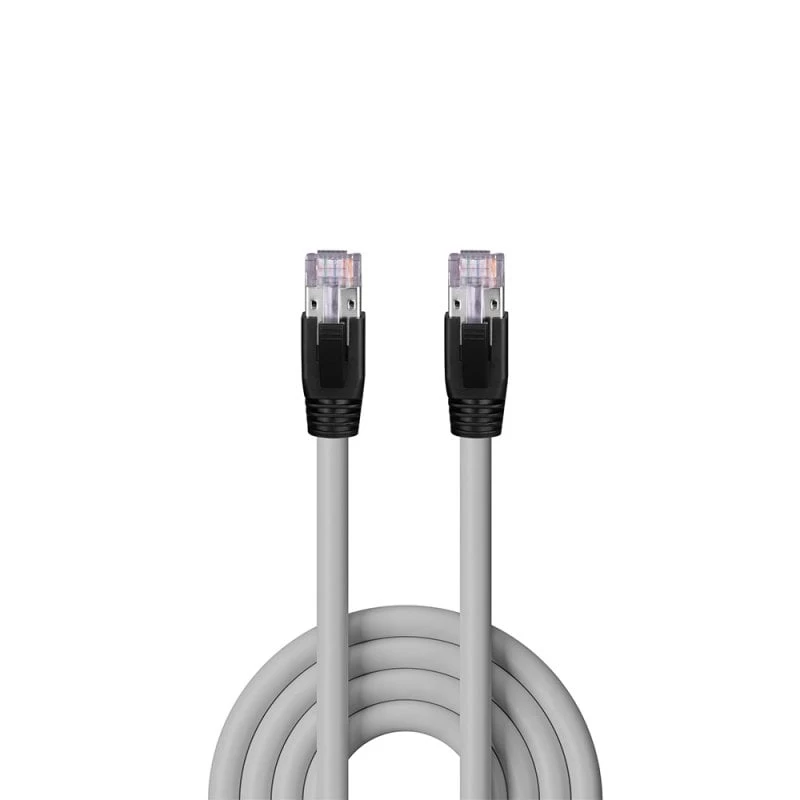

Cable de red Lindy Cat.6A U/FTP LSZH Solid Core, 90 m, gris, RJ-45 a RJ-45

Lindy Cat.6A U/FTP LSZH solid-core network cable, 90 metres, grey, with RJ‑45 to RJ‑45 connectors is designed for high-speed Ethernet up to 10GBase‑T and a bandwidth of up to 500 MHz. The cable uses four individually foiled pairs (U/FTP) combined within a low‑smoke, zero‑halogen (LSZH) outer sheath to reduce toxic fumes in case of fire. Gold‑plated RJ‑45 contacts and a snagless connector design ensure reliable, corrosion‑resistant terminations and protect the latch during installation and removal. The cable is intended for structured cabling installations in offices, data centres and professional AV systems and is manufactured and tested to ISO/IEC 11801 specifications.

Advantages

The U/FTP construction with individual foil around each pair improves signal integrity and reduces pair‑to‑pair crosstalk, supporting stable transmission for HDBaseT and PoE applications. The solid core design provides consistent electrical characteristics across longer permanent links, while the LSZH jacket minimises smoke and halogen emissions in enclosed or public environments. Gold‑plated contacts and a robust snagless strain relief deliver durable, low‑loss connections suitable for frequent terminations and high‑performance networks.

Suitable for

• 10GBase‑T Ethernet backbone and horizontal structured cabling
• HDBaseT video distribution and professional AV installations
• Power over Ethernet (PoE) and PoE+ deployments requiring higher current
• Data centre, server room and office patching between switches, routers and patch panels
• Permanent link installations where low smoke/halogen emissions are required

Key specifications

• Category: Cat.6A
• Shielding: U/FTP (individually foiled pairs, overall unshielded)
• Conductor type: Solid core
• Bandwidth: up to 500 MHz
• Maximum supported link: up to 10GBase‑T depending on installation and environment
• Length: 90 m
• Connector type: RJ‑45 to RJ‑45, straight male
• Contacts: gold‑plated
• Jacket material: LSZH (low smoke, zero halogen)
• Colour: grey

How to use

Install the cable as a permanent link or patch connection between network equipment, such as switches, routers, patch panels and AV extenders. For best performance, maintain appropriate bend radius and avoid tight bends or kinks; route the cable away from strong electromagnetic sources to minimise interference. Terminate or connect the pre‑fitted RJ‑45 connectors into compatible ports and ensure the latch engages; the snagless design helps protect the latch during installation. When used in patching or permanent links, verify continuity and performance with suitable cable testers and certify installation where required.

Recommendations

Use this Cat.6A U/FTP LSZH cable for installations that require high bandwidth and low emission materials. For PoE applications ensure connectors and equipment ratings match the power requirements. Adhere to cabling standards and installation best practices—observe bend radius, separation from mains and noisy power or signalling cables, and perform post‑installation testing to confirm link performance.
