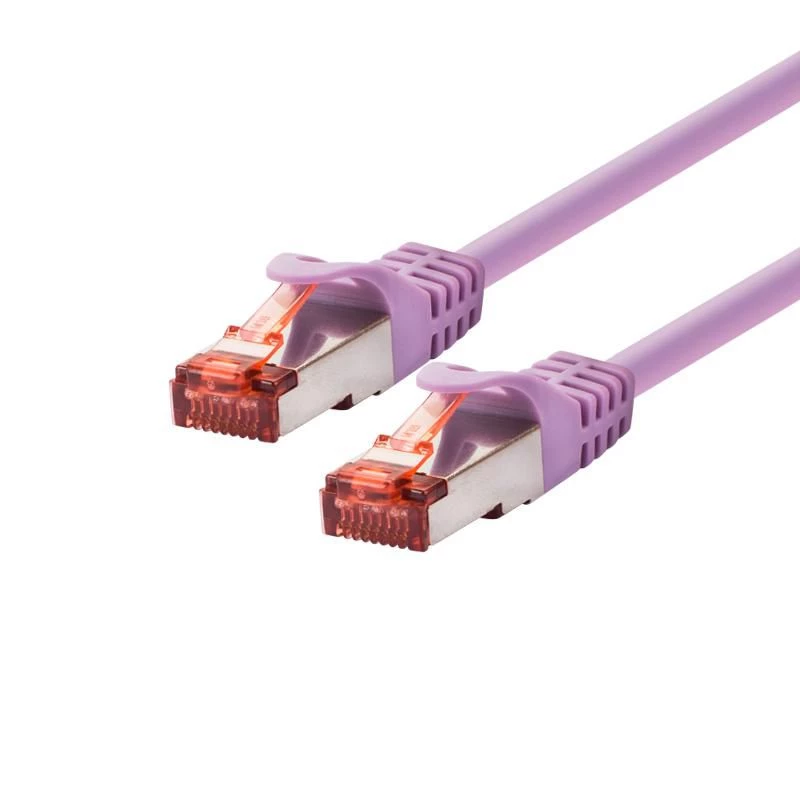

Cable de red LOGON TCF66F200V Cat6a F/UTP (FTP) Violeta 20 m RJ-45–RJ-45

LOGON TCF66F200V Cat6a F/UTP (FTP) Violet 20 m RJ-45–RJ-45 is a 20-metre shielded Ethernet patch cable designed for structured cabling and network links. Terminated with shielded RJ-45 plugs on both ends, this Cat6a cable provides improved protection against electromagnetic interference and enhanced pair-to-pair crosstalk suppression compared with lower-category cables. The violet jacket makes identification and tracing easier in multi-cable installations.

Advantages

The foil-shielded F/UTP (FTP) construction reduces external interference and preserves signal integrity in environments with nearby power lines or electronic equipment. Built with 4 x 2 AWG 26/7 twisted pairs and a 100 ohm impedance, the cable supports high-speed Ethernet links and Power over Ethernet (PoE) applications. Shielded RJ-45 connectors ensure continuity of the screening to minimize potential noise at connection points. The PVC sheath provides mechanical protection and flexibility for typical indoor cabling runs.

Suitable for

• 10/5/2.5/1 Gbps Ethernet connections over short to medium runs
• Power over Ethernet (PoE) devices such as IP cameras, access points and VoIP phones
• Structured cabling in offices, server rooms and data closets where color coding is useful
• Connections between switches, patch panels and wall outlets

Key specifications

• Category: Cat6a (augmented performance for 10 Gbps where applicable)
• Shielding: F/UTP (foil overall shield with unshielded twisted pairs)
• Conductor: 4 pairs, 26 AWG stranded (26/7)
• Impedance: 100 ohm
• Connectors: Shielded RJ-45 male to shielded RJ-45 male
• Cable length: 20 m
• Sheath material: PVC
• Jacket color: Violet
• Standards: Conforms to EIA/TIA 568 cabling recommendations

How to use

Route the LOGON Cat6a cable through cable trays, conduits or along baseboards to connect network equipment. Ensure both ends are fully inserted into RJ-45 ports until the connector latch clicks. Avoid tight bends, kinks and excessive pulling force during installation; maintain a bend radius of at least four times the cable diameter where possible. For wall or patch panel terminations, use the shielded RJ-45 ports to maintain cable screening continuity.

Recommendations

For reliable 10 Gbps performance and PoE delivery, keep individual cable runs within recommended lengths for your network equipment, avoid running the cable parallel to high-voltage power lines, and terminate both ends with shielded connectors and grounded shielded ports where available. Use the violet jacket to mark and document this run in your cabling plan.
