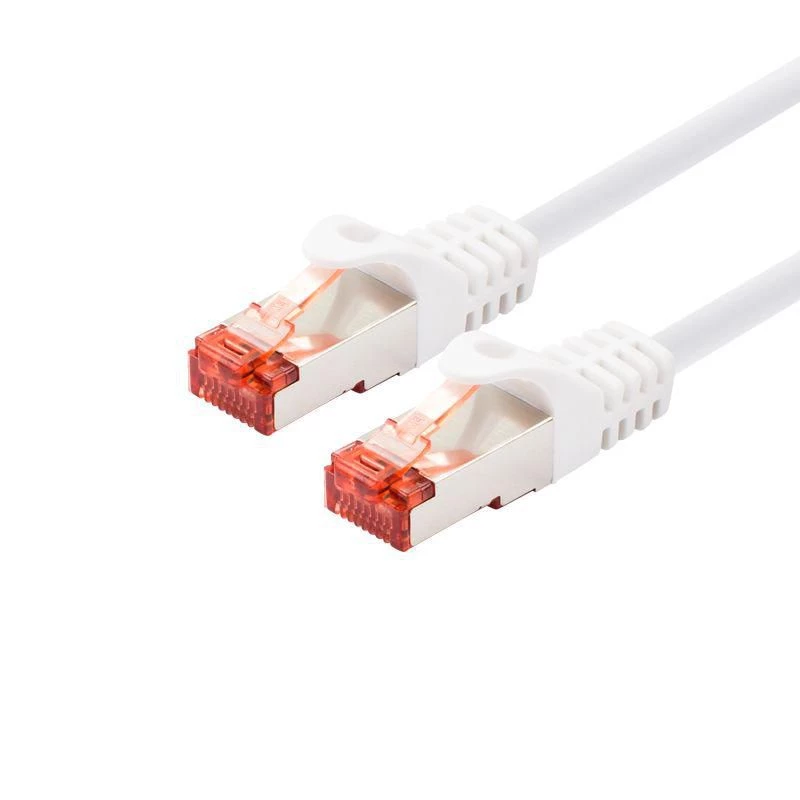

Cable de red LOGON TCR66SS050WH Cat6 SF/UTP (S-FTP) RJ-45 a RJ-45, 5 m, blanco

LOGON TCR66SS050WH is a 5 m Cat6 networking cable with SF/UTP (S-FTP) shielding and RJ-45 connectors on both ends. It is designed for gigabit Ethernet and reliable data transfer in home and office environments. The cable combines foil and full braid shielding around all pairs to reduce external electromagnetic interference and preserve signal integrity over typical horizontal runs. The white PVC jacket provides durability and a neat finish for visible installations.

Advantages

The SF/UTP (S-FTP) construction with pair-level foil and an overall braid offers improved protection against crosstalk and external noise compared with unshielded cables. Twisted pair conductors with 26 AWG stranded construction balance flexibility and signal performance, while RJ-45 shielded connectors ensure a grounded connection when used with compatible shielded ports or panels. Compliance with EIA/TIA-568 wiring standards facilitates straightforward termination and compatibility with common networking equipment. The 5 m length is suitable for typical device-to-switch or patch panel connections and comes in a white finish to match office or home decor.

Suitable for

• Connecting PCs, routers and switches at gigabit speeds
• Patching between wall outlets and patch panels
• Small office and home network installations requiring reduced interference
• Short horizontal runs where shielded cabling is preferred

Key specifications

• Category: Cat6
• Shielding: SF/UTP (S-FTP) — foil around each pair and overall braid
• Conductor: 4 x 2 AWG 26/7 twisted pairs (stranded)
• Impedance: 100 ohm
• Connectors: RJ-45 shielded plugs on both ends
• Length: 5 m
• Sheath: PVC, white
• Wiring standard: EIA/TIA-568 compatible

How to use

Connect one RJ-45 plug to the network device (PC, router, switch) and the other plug to the corresponding port on the network equipment or wall outlet. Ensure that shielded ports or chassis are used if you want to take full advantage of the cable shielding and to provide a reliable ground connection. Avoid tight bends and kinks; maintain a bend radius of at least four times the cable diameter for best signal performance. Do not route the cable parallel and close to high-voltage power lines to minimize potential interference.

Recommendations

For optimal performance in environments with potential electromagnetic interference, pair this shielded Cat6 cable with shielded RJ-45 ports, metal patch panels, and properly grounded network equipment. Inspect connectors for secure seating and avoid over-stretching the cable; store coiled without sharp bends when not in use.
